5.3.3 Mounting programmable magnetic switch MMS-PI2
NOTICE
Risk of damage to the sensor during assembly!
• Observe the maximal tightening torque.
5.3.3.1 Size MPG-Plus 25 / 25 IS – 50
For this size, there is a bracket in vertical direction mounted by de-
fault.
Ø Loosen the screws at the bracket.
Ø Move the sensor into to the bracket up to the stop.
Ø Tighten the screws at the bracket.
Ø Fasten the senor using a threaded pin.
Tightening torque: 10 Ncm
Ø Check the protrusion of sensor L1, see table "adjustment di-
mension".
Ø Adjust the sensor, see assembly and operating manual of the
sensor.

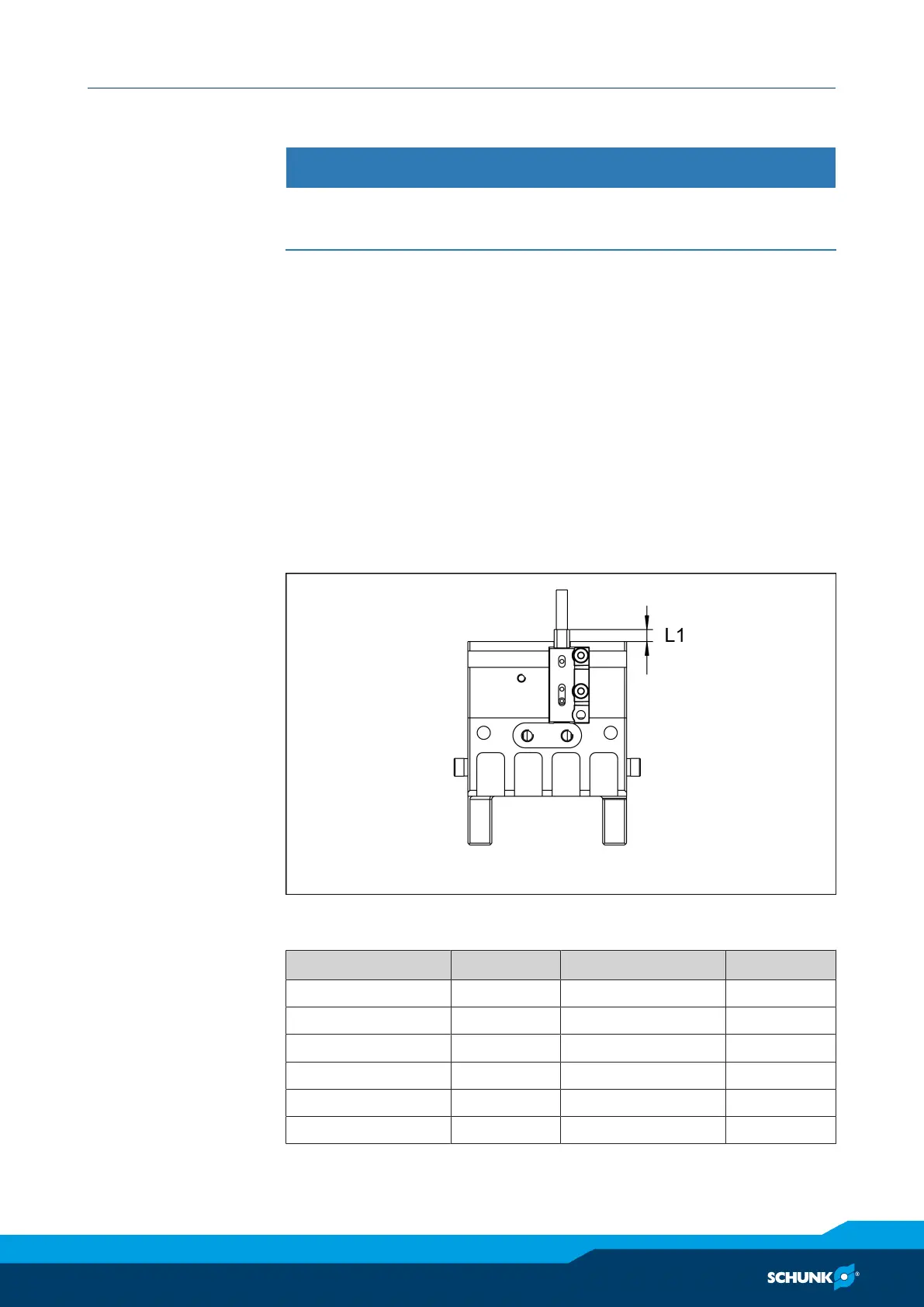

Protrusion of the sensor to be mounted
Adjustment dimensions
Size L1 [mm] Size L1 [mm]
MPG-plus 25 8.8 MPG-plus 40 4.8
MPG-plus 25-AS 2.0 / 2.5 MPG-plus 40-AS 2.9
MPG-plus 25-IS 7.8 MPG-plus 40-IS -17.8
MPG-plus 32 5.5 MPG-plus 50 4.3
MPG-plus 32-AS -4.0 MPG-plus 50-AS -2.2
MPG-plus 32-IS 1.7 MPG-plus 50-IS -14.8
