SCHUNK MPG-plus - Mounting the Object-Distance Sensor OAS

Assembly
38
08.00 | MPG-plus | Assembly and operating manual | en | 0389216

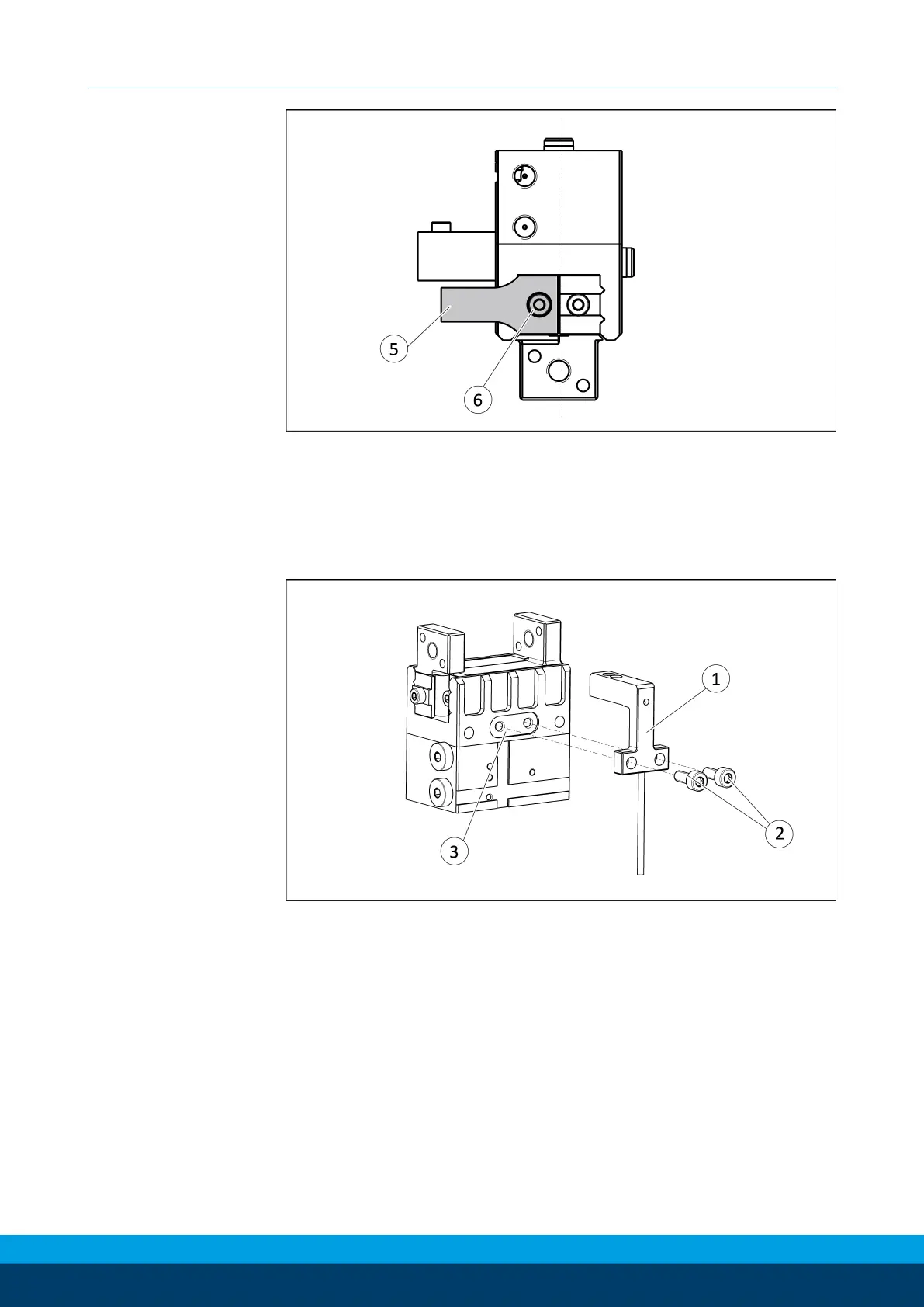

Ø Fasten the switch cam (5) with a screw to the base jaw. Ensure
that the magnets point towards the sensor area.
Ø Connect the control unit output and adjust the sensor (see as-
sembly and operating manual of the sensor).
5.3.9 Mounting the object-distance sensor OAS
Ø Fix sensor(1) with screws(2) at the housing(3).
Notice: The screws(2) are not included in the scope of delivery.
Ø Connect control unit output and adjust sensor, see sensor
mounting and operating instructions.
