SCHUNK MPG-plus - Assembly of the Variant with I.D. Gripping

Maintenance
08.00 | MPG-plus | Assembly and operating manual | en | 0389216
45

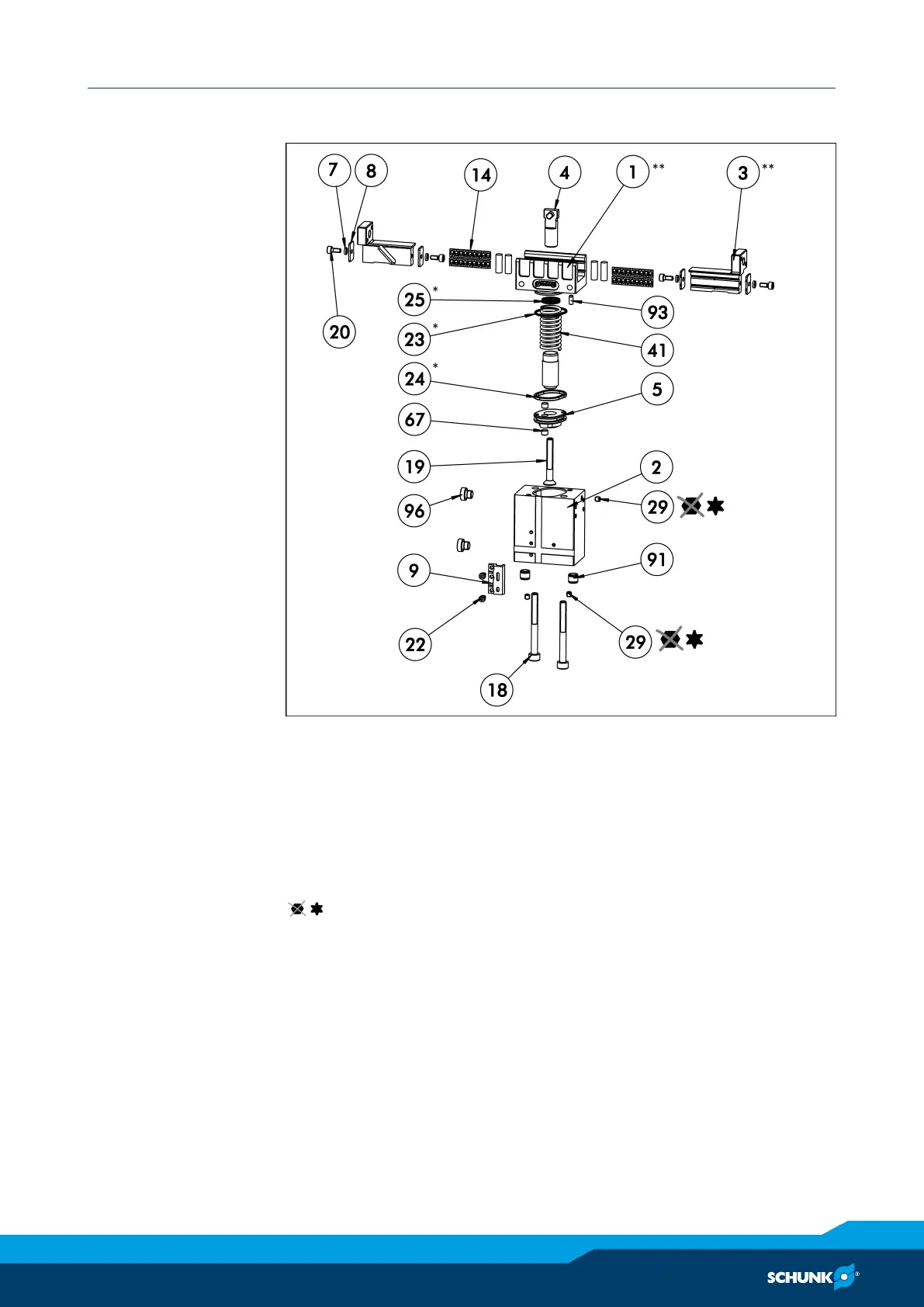

7.5.3 Assembly of the variant with I.D. gripping
Assembly of the variant with I.D. gripping
* Wearing part, replace during maintenance.
Included in the seal kit. Seal kit can only be ordered com-
pletely.
** Positions are adapted to each other and can not be re-
placed by the customer.
Torx-Profil
