SCHUNK MPG-plus Translation Of The Original Manual

Assembly
20
08.00 | MPG-plus | Assembly and operating manual | en | 0389216
Ø Screw the product to the machine/system, Mechanical connec-
tion [
}
20].
✓ If necessary, use appropriate connection elements (adapter
plates).
✓ Observe the maximal tightening torque, admissible screw-in
depth and, if necessary, strength class.
Ø Secure the gripper fingers to the base jaws, Mechanical connec-
tion [
}
20].
Ø Connect the sensor, see sensor's assembly and operating
Manual.
Ø Mount the sensor, Mounting the sensor [
}
23].
5.2 Connections
5.2.1 Mechanical connection
Levelness of the
mounting surface
The values apply to the whole mounting surface to which the
product is mounted.
Requirements for levelness of the mounting surface (Dimensions in mm)
Diameter Permissible unevenness
< 100 < 0.02
> 100 < 0.05
Connections at the
housing
The product can be mounted from three sides.
When selecting the mounting screws, observe the values pre-
scribed by SCHUNK (see table below).

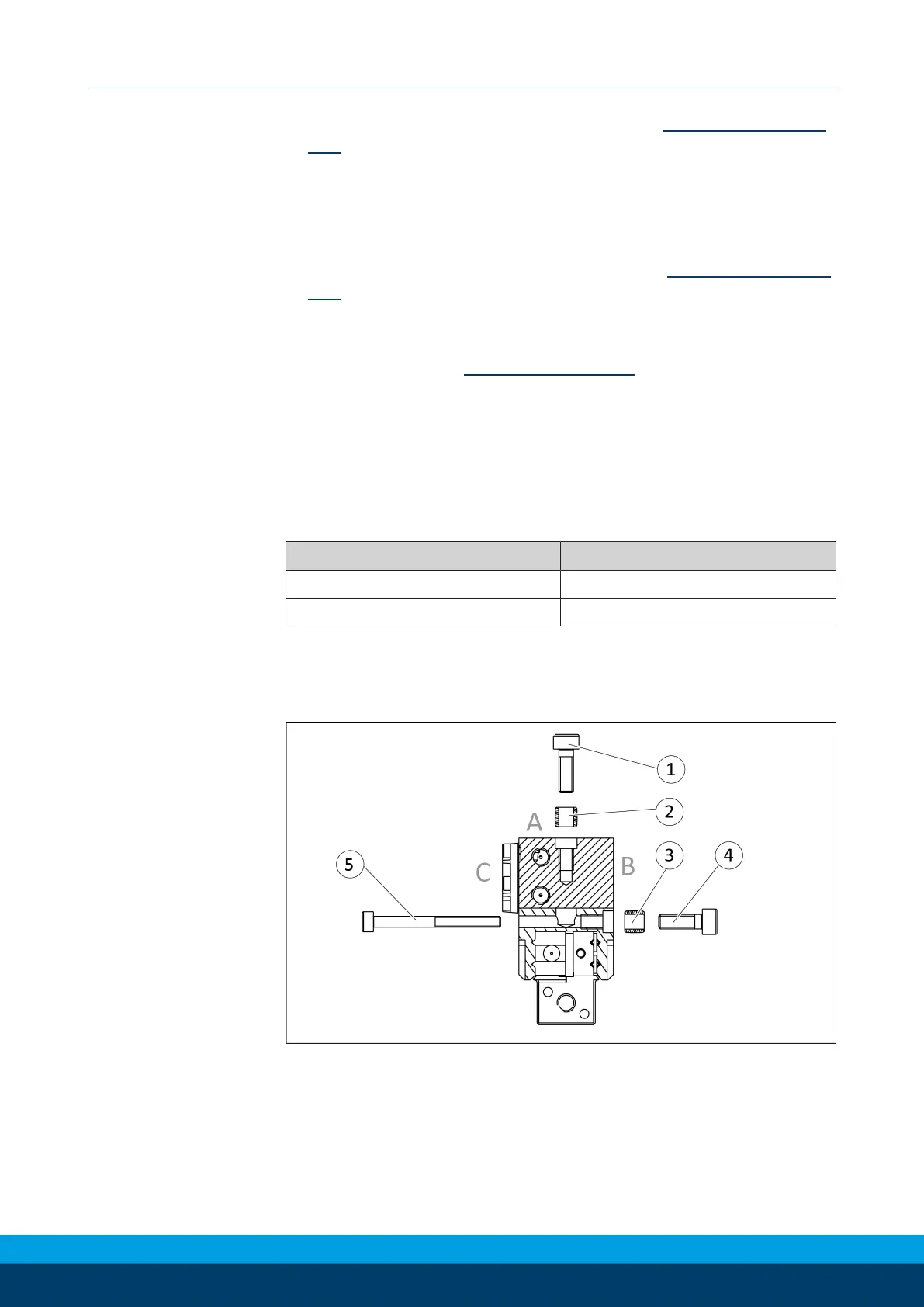

Mounting possibilities
