7. Installation

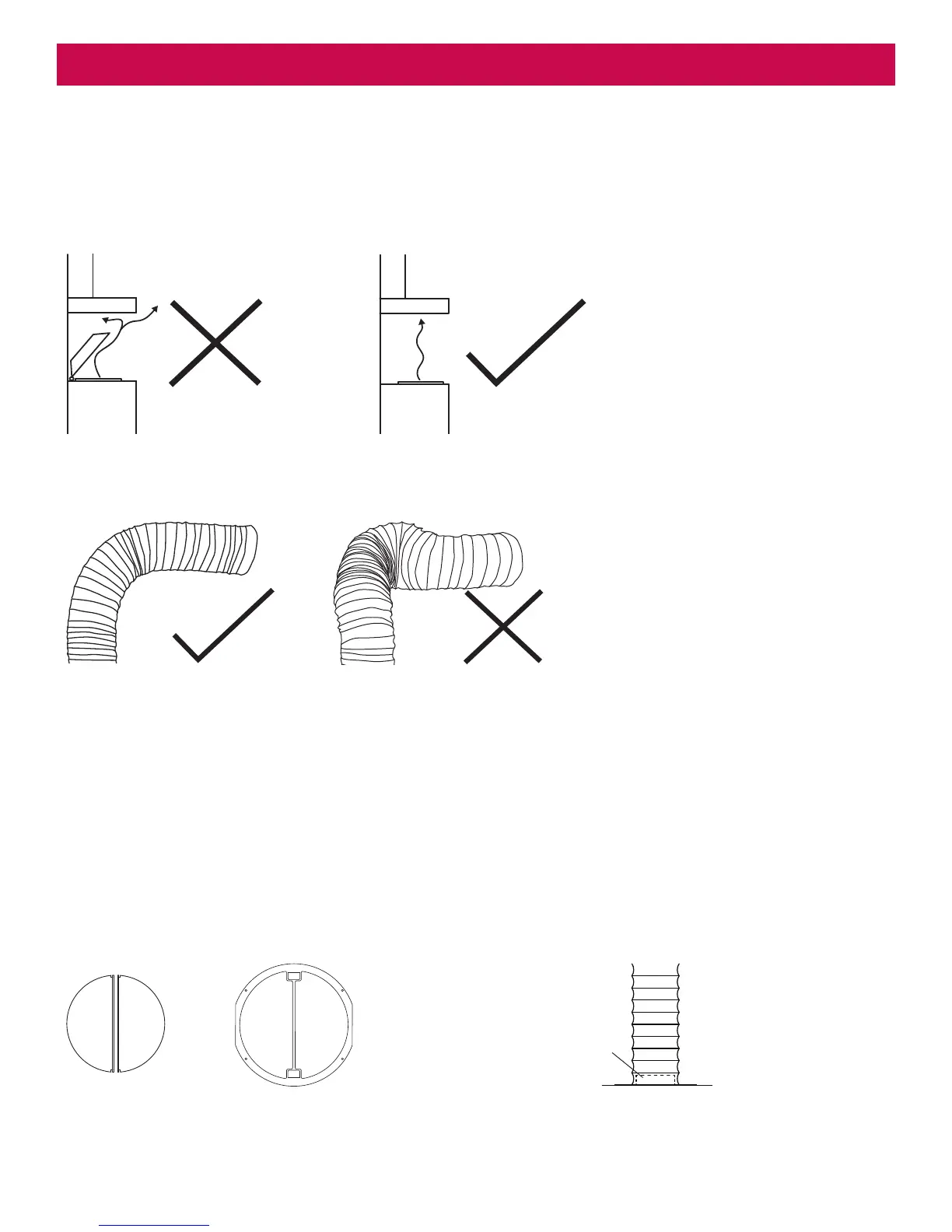

Flexible Ducting / Ducting
Please do not crush or kink any of the ducting, this will reduce the air ow and may cause noise
throughout the system. Ducting needs to be kept taut at all times.
BBQ Installation
When installing the rangehood over a BBQ , please be aware that the lid will obstruct the rangehoods
effectiveness to extract smoke, steam and odours. Where possible, remove the lid of the BBQ unit when
in use to allow for effective rangehood extraction.
Back Draft Fins (Applicable to some models only)
Should your Back Draft Fins get stuck, this is not a warranty issue.
If installing Back Draft Fins, please ensure that you insert the Back Draft Fins onto the back draft base,
which is attached to the top of the motor outlet before installation.
NOTE: Please make sure when ducting is installed, that it does not impede the Back Draft Fins
from operation.
Back Draft Fins
Flexible ducting
should t rmly
on the back draft
base / reducer
Back Draft Base
