VECTOR CONTROLLER-SERVICE MANUAL 25
303
6
23
4
8
3
0
356534 C
5
4
3
2
1
0
10
9
8
7
6
1
2
3
HOME HELP
CLEAR ENTER
OFF
QUIT
+
-
START
OK
1
0
2
3
PTO
Menu: [ENTER]=ON
1500 rpm
62˚C
x1000

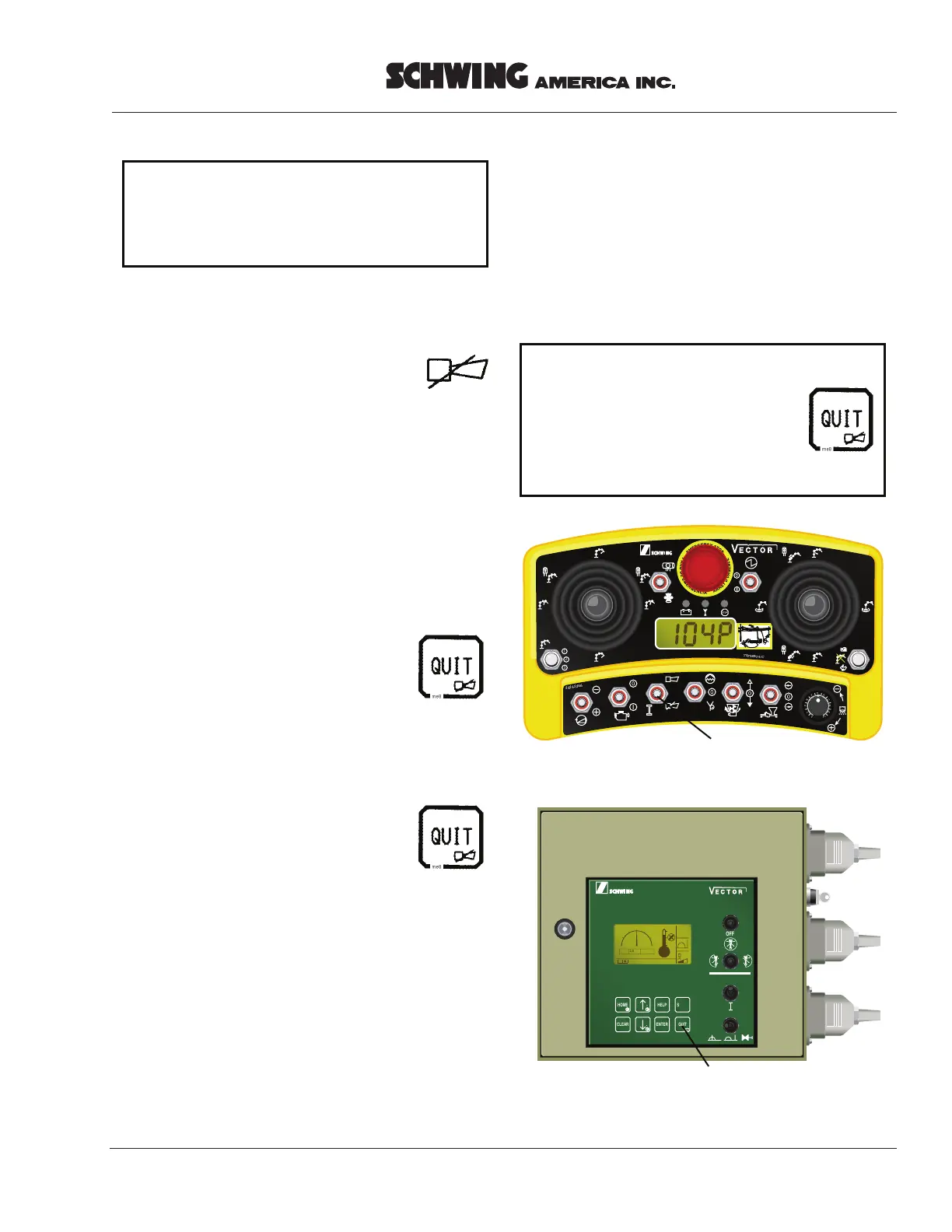

QUIT key
QUIT switch
3. Mode of operation :
Silent diagnostic : No
Minor fault
Minor faults
The fault is displayed on the screen and an-
nounced by a horn signal.
- Activate "QUIT" on the remote
control box (Fig. 1) once.
The horns stop sounding.
The message is deleted from the
display.
- After switching the mode of op-
eration from Remote to Local,
the fault is displayed on the
screen and announced by the
buzzer in the control cabinet.
- Depress the "QUIT" key on the
control cabinet (Fig. 2) once.
The buzzer stops sounding.
The message continues to be
displayed and can be read without
hurry.
- Depress "QUIT" once more.
The fault message is definitely
acknowledged.
The message is deleted from the
display and logged in the faults
list.
Important:
acknowledged
immediately with the "QUIT"
key on the control cabinet
in the REMOTE mode are not
reported again when changing
Fig. 1
Fig. 2
modes.
REMOTE
