Service Manual
30
V
ECTOR
C
ONTROLLER
-S
ERVICE
M
ANUAL

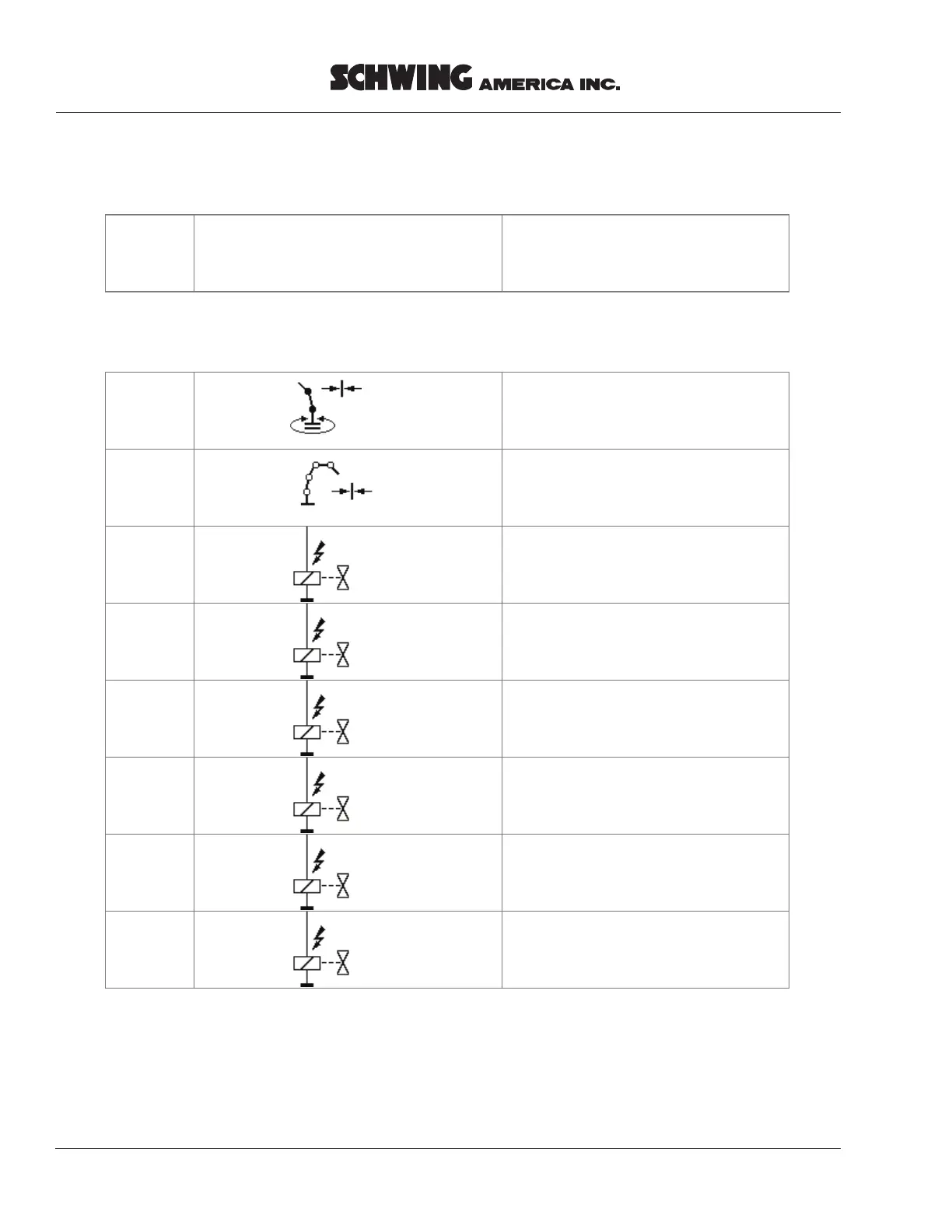

Summary of messages
Code
international version (symbolic)
plain text messages
B = Boom
B01M
Limitation
Slewing Gear
Activated !
B02M
BOOM Limitation
Activated !
B04L
Disconnected / Overload
E-Stop Solenoid BOOM !
B05L
PO41
Disconnected / Overload
Solenoid Slewing Right
- PO41 !
B06L
PO42
Disconnected / Overload
Solenoid Slewing Left
- PO42 !
B07L
PO43
Disconnected / Overload
Solenoid BOOM A extend
- PO43 !
B08L
PO44
Disconnected / Overload
Solenoid BOOM A retract
- PO44 !
B09L
PO45
Disconnected / Overload
Solenoid BOOM B extend
- PO45 !
29
31
Table of Contents
Table of Contents
3
Commissioning
4
Selecting Local Control
5
Selecting Remote Control
6
Selecting Ram Change Mode
7
Emergency Stop Buttons
8
Override of the E-Stop Manifold
8
Options Box
9
Control and Monitoring Components
10
Menu Control
11
Local Control
12
Remote Control
13
Menu Overview - Main Menu
14
Menu Overview - Submenus
18
Menu Operation - Example
19
Diagnostic System/ "Fault Handling
20
Acknowledging Faults
22
Fault Definition
22
Summary of Messages
30
