Service Manual
V
ECTOR
C
ONTROLLER
-S
ERVICE
M
ANUAL
31

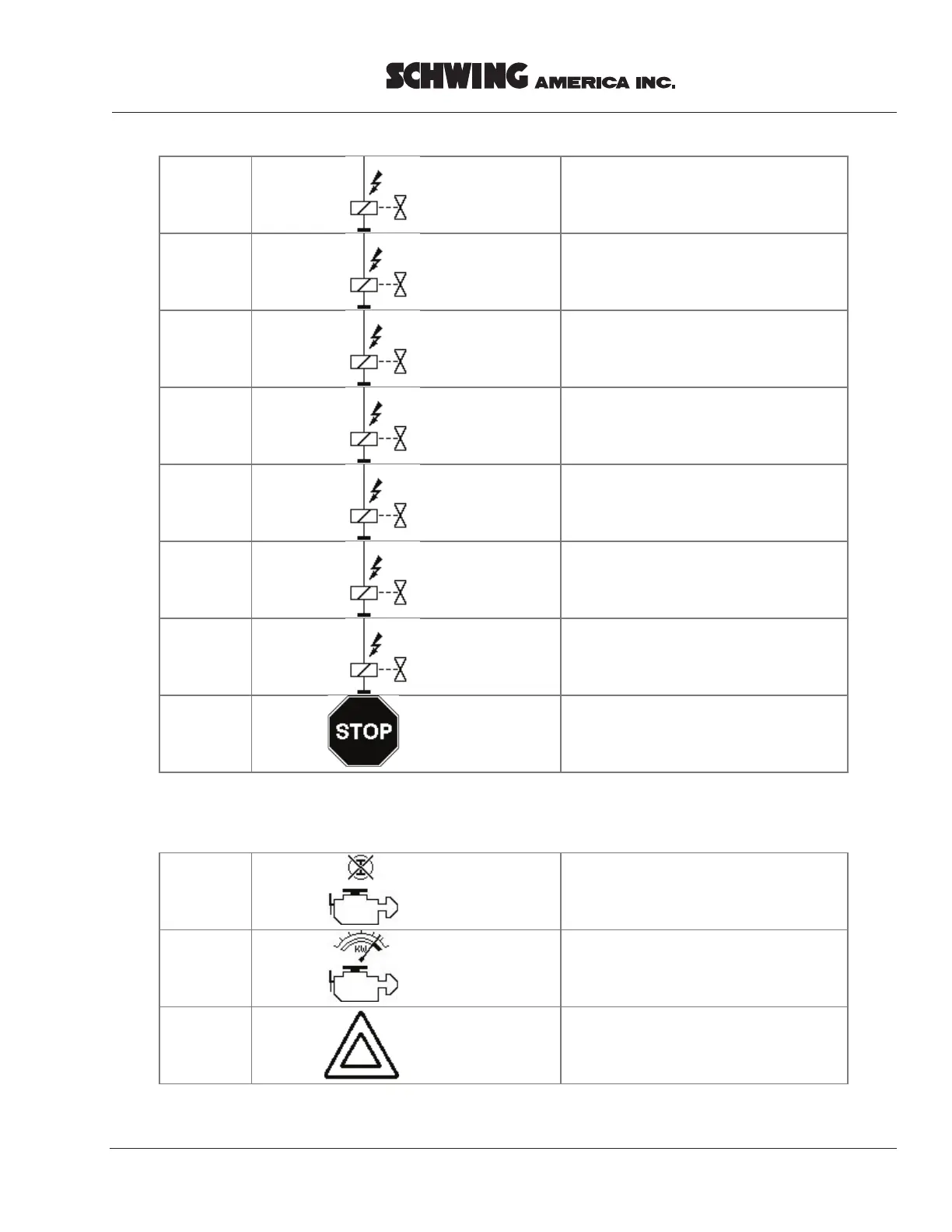

B10L
PO46
Disconnected / Overload
Solenoid BOOM B retract
- PO46 !
B11L
PO47
Disconnected / Overload
Solenoid BOOM C extend
- PO47 !
B12L
PO48
Disconnected / Overload
Solenoid BOOM C retract
- PO48 !
B13L
PO51
Disconnected / Overload
Solenoid BOOM D extend
- PO51 !
B14L
PO52
Disconnected / Overload
Solenoid BOOM D retract
- PO52 !
B15L
PO53
Disconnected / Overload
Solenoid BOOM E extend
- PO53 !
B16L
PO54
Disconnected / Overload
Solenoid BOOM E retract
- PO54 !
B17H
! Machine Safety Stop !
BOOM Control Fault !
D = Diesel Engine
D01M
Some Hydraulic Functions
Not In Neutral!
Diesel Start Disabled!
D02M
Power Limitation
Diesel Engine
Activated !
D03L
PTO is not working or
Prox-Switch PTO-RPM
Fault !
30
32
Table of Contents
Table of Contents
3
Commissioning
4
Selecting Local Control
5
Selecting Remote Control
6
Selecting Ram Change Mode
7
Emergency Stop Buttons
8
Override of the E-Stop Manifold
8
Options Box
9
Control and Monitoring Components
10
Menu Control
11
Local Control
12
Remote Control
13
Menu Overview - Main Menu
14
Menu Overview - Submenus
18
Menu Operation - Example
19
Diagnostic System/ "Fault Handling
20
Acknowledging Faults
22
Fault Definition
22
Summary of Messages
30
