Service Manual
V
ECTOR
C
ONTROLLER
-S
ERVICE
M
ANUAL
33

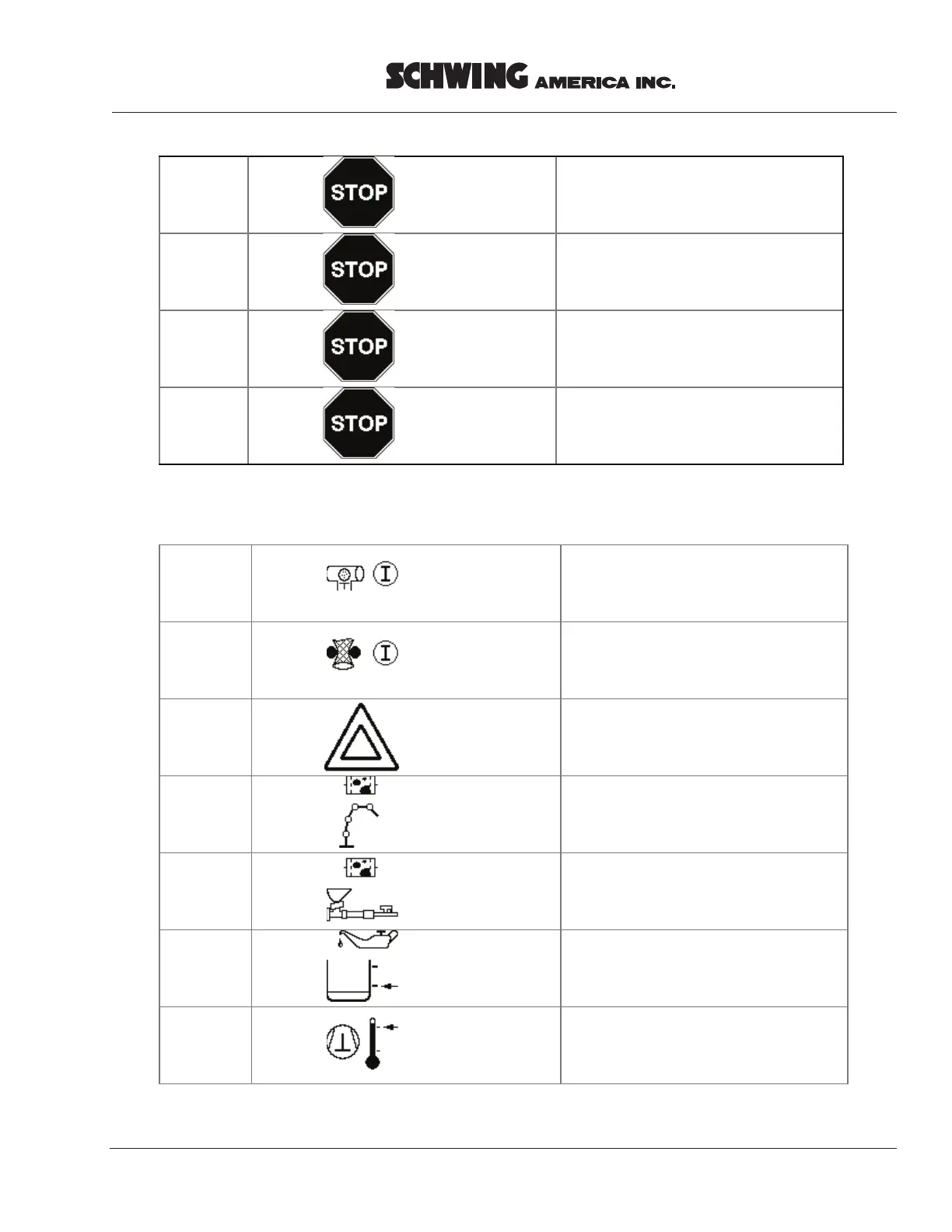

D16H
! Machine Safety Stop !
High Truck Coolant
Temperature !
D17H
! Machine Safety Stop !
Low Truck Oil Pressure !
D18H
! Machine Safety Stop !
Low Level
Hydraulic Oil !
D19H
! Machine Safety Stop !
Battery charging
On Truck Fault !
M = Machine
M01M
Ball Injector
Activated !
M02M
End-Hose Shut-Off
Activated !
M03L
Temperature Transmitter
Hydraulic Oil Fault !
M04L
Hydraulic Oil Filter
BOOM Contaminated !
Please Exchange Filter!
M05L
Hydraulic Oil Filter
CP Contaminated !
Please Exchange Filter!
M06L
Low Level
Hydraulic Oil
Reservoir !
M07L
High Temperature
Air Compressor !
32
34
Table of Contents
Table of Contents
3
Commissioning
4
Selecting Local Control
5
Selecting Remote Control
6
Selecting Ram Change Mode
7
Emergency Stop Buttons
8
Override of the E-Stop Manifold
8
Options Box
9
Control and Monitoring Components
10
Menu Control
11
Local Control
12
Remote Control
13
Menu Overview - Main Menu
14
Menu Overview - Submenus
18
Menu Operation - Example
19
Diagnostic System/ "Fault Handling
20
Acknowledging Faults
22
Fault Definition
22
Summary of Messages
30
4
