Service Manual
V
ECTOR
C
ONTROLLER
-S
ERVICE
M
ANUAL

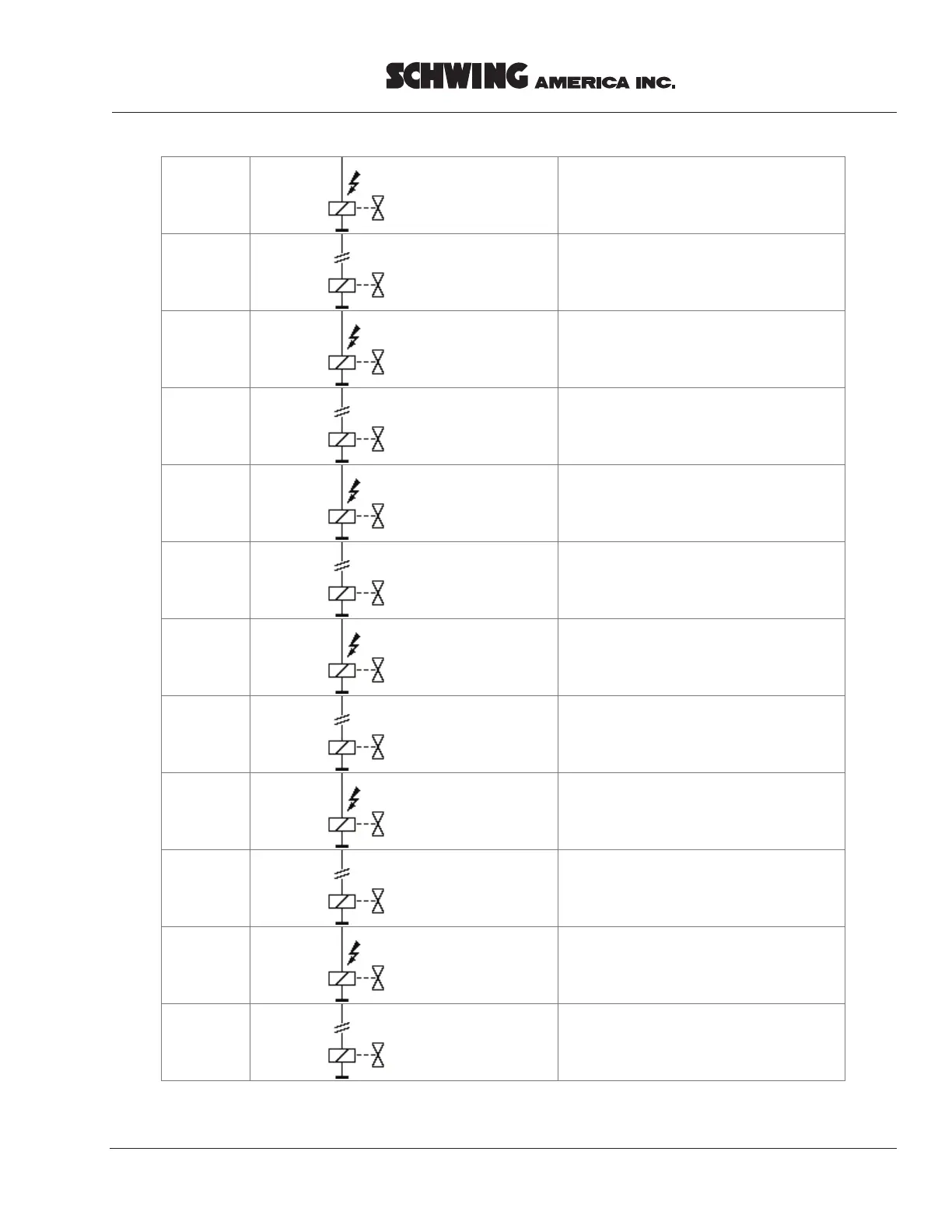

35
M20L
DO38
Overload Solenoid
Ball-Injector
- DO38 !
M21L
DO26
Disconnected Solenoid
Water Pump - DO26 !
M22L
DO26
Overload Solenoid
Water Pump - DO26 !
M23L
DO28
Kabelbruch Schaltventil
Kompressor - DO28 !
M24L
DO28
Disconnected Solenoid
Air-Compressor - DO28 !
M25L
DO21
Disconnected Solenoid
Agitator
Forward - DO21 !
M26L
DO21
Overload Solenoid
Agitator
Forward - DO21 !
M27L
DO22
Disconnected Solenoid
Agitator
Reverse - DO22 !
M28L
DO22
Overload Solenoid
Agitator
Reverse - DO22 !
M29L
DO25
Disconnected Solenoid
Hydraulic On Outriggers
- DO25 !
M30L
DO25
Overload Solenoid
Hydraulic On Outriggers
- DO25 !
M31L
DO27
Disconnected Solenoid
High Pressure
Water Pump - DO27 !
34
36
Table of Contents
Table of Contents
3
Commissioning
4
Selecting Local Control
5
Selecting Remote Control
6
Selecting Ram Change Mode
7
Emergency Stop Buttons
8
Override of the E-Stop Manifold
8
Options Box
9
Control and Monitoring Components
10
Menu Control
11
Local Control
12
Remote Control
13
Menu Overview - Main Menu
14
Menu Overview - Submenus
18
Menu Operation - Example
19
Diagnostic System/ "Fault Handling
20
Acknowledging Faults
22
Fault Definition
22
Summary of Messages
30
