Service Manual
36
V
ECTOR
C
ONTROLLER
-S
ERVICE
M
ANUAL

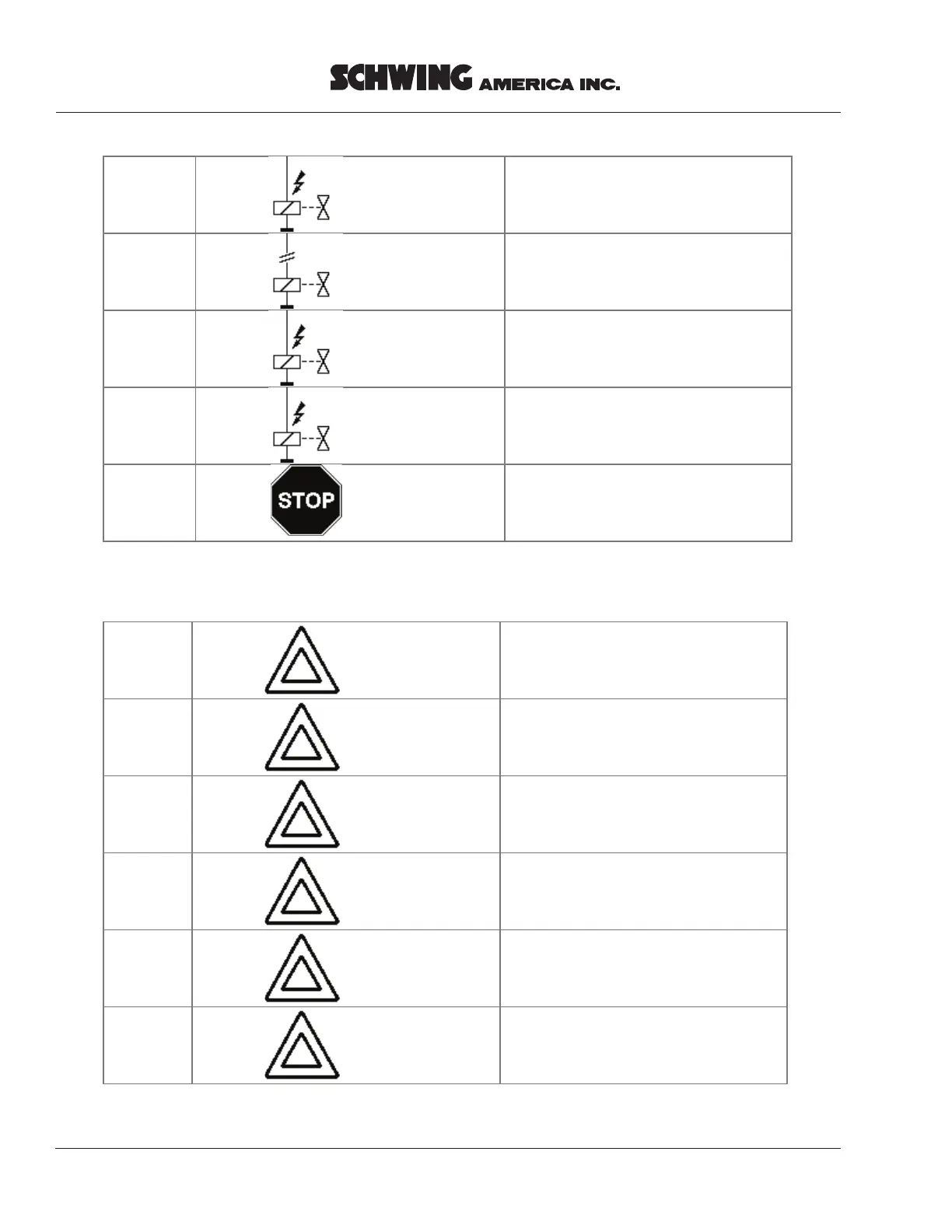

M32L
DO27
Overload Solenoid
High Pressure
Water Pump - DO27 !
M33L
DO37
Disconnected Solenoid
End-Hose Shut-Off
- DO37 !
M34L
DO37
Overload Solenoid
End-Hose Shut-Off
- DO37 !
M35L
PO56
Disconnected / Overload
Solenoid Hydraulic On
Outrigger - PO56 !
M36H
! Machine Safety Stop !
Hydraulic Oil
Temperature Exceeded !
O = Optional
O01L
DO15
Disconnected PowerOutput
Central Lubrication
CP active / Pump - DO15!
O02L
DO15
Overload PowerOutput
Central Lubrication
CP active / Pump - DO15!
O03L
DO35
Disconnected Output
Central Lubrication
BOOM active - DO35 !
O04L
DO35
Overload Output
Central Lubrication
BOOM active - DO35 !
O05L
DO36
Disconnected LED-Output
BOOM above rest - DO36 !
O06L
DO36
Overload LED-Output
BOOM above rest - DO36 !
35
37
Table of Contents
Table of Contents
3
Commissioning
4
Selecting Local Control
5
Selecting Remote Control
6
Selecting Ram Change Mode
7
Emergency Stop Buttons
8
Override of the E-Stop Manifold
8
Options Box
9
Control and Monitoring Components
10
Menu Control
11
Local Control
12
Remote Control
13
Menu Overview - Main Menu
14
Menu Overview - Submenus
18
Menu Operation - Example
19
Diagnostic System/ "Fault Handling
20
Acknowledging Faults
22
Fault Definition
22
Summary of Messages
30
