Service Manual
V
ECTOR
C
ONTROLLER
-S
ERVICE
M
ANUAL
37

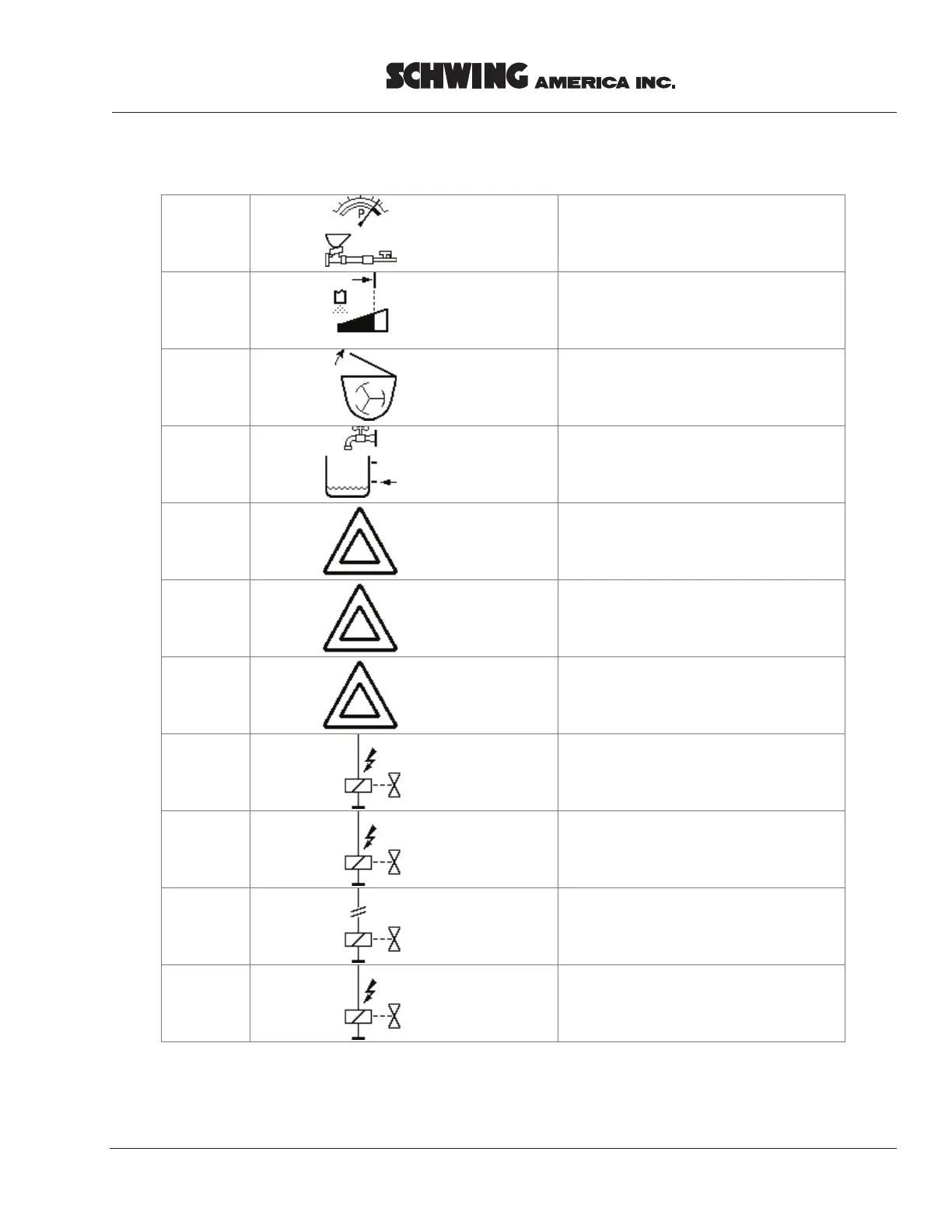

P = Pump
P01M
Pressure Limiter
Concrete Pump
Activated !
P02M
Stroke Rate Limitation
Concrete Pump
Activated !
P03M
Hopper Grate Open !
P04M
Low Level
Water Reservoir !
P05L
Oil Temperature High,
Power Limiter Concrete
Pump Activated !
P06L
Transmitter
Oil Pressure Concrete
Pump Fault !
P07L
Prox-Switch Stroke
Counter Fault or
CP jammed !
P08L
Disconnected / Overload
E-Stop Solenoid CP !
P09L
Disconnected / Overload
E-Stop Solenoid MPS !
P10L
DO23
Disconnected Solenoid
Concrete Pump
Forward - DO23 !
P11L
DO23
Overload Solenoid
Concrete Pump
Forward - DO23 !
36
38
Table of Contents
Table of Contents
3
Commissioning
4
Selecting Local Control
5
Selecting Remote Control
6
Selecting Ram Change Mode
7
Emergency Stop Buttons
8
Override of the E-Stop Manifold
8
Options Box
9
Control and Monitoring Components
10
Menu Control
11
Local Control
12
Remote Control
13
Menu Overview - Main Menu
14
Menu Overview - Submenus
18
Menu Operation - Example
19
Diagnostic System/ "Fault Handling
20
Acknowledging Faults
22
Fault Definition
22
Summary of Messages
30
