Service Manual
38
V
ECTOR
C
ONTROLLER
-S
ERVICE
M
ANUAL

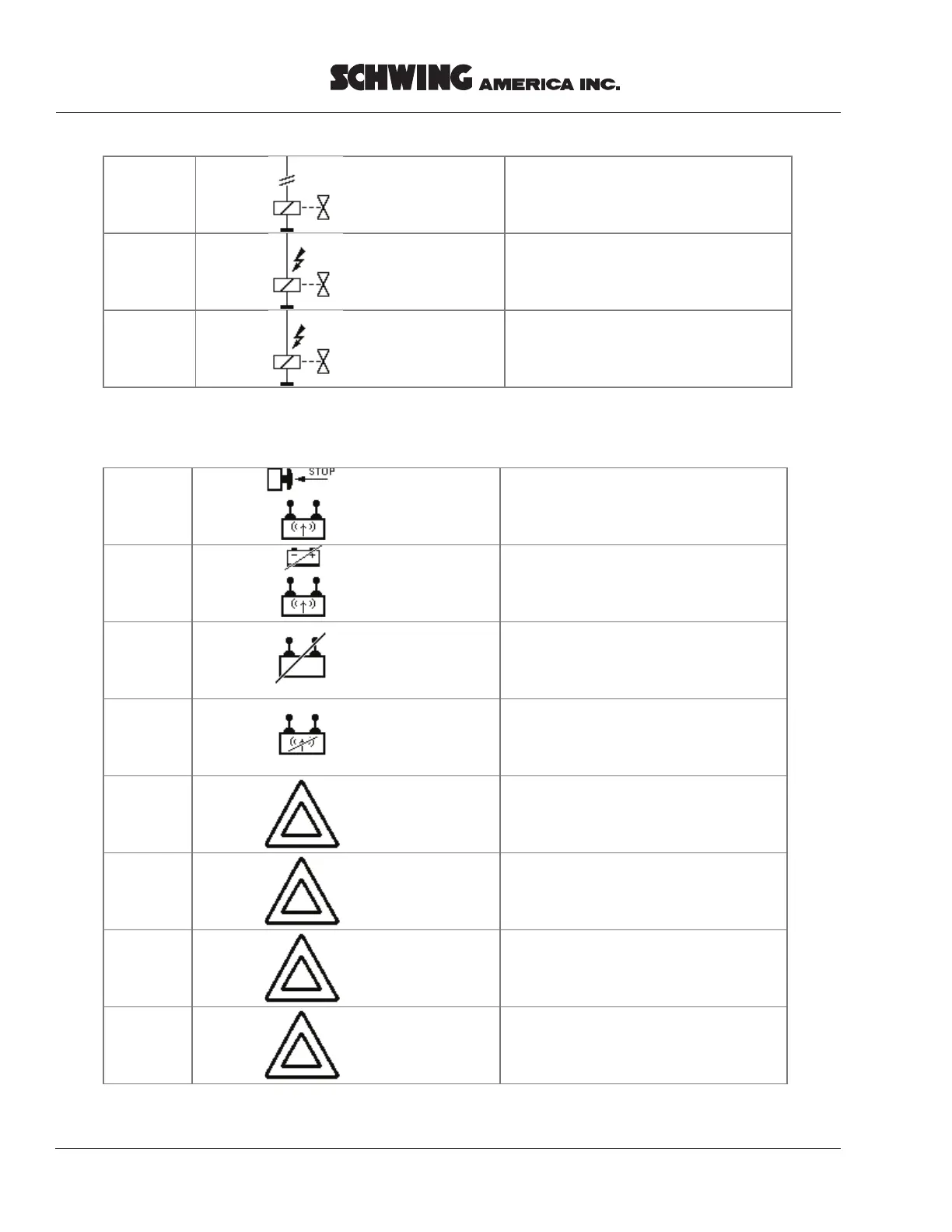

P12L
DO24
Disconnected Solenoid
Concrete Pump
Reverse - DO24 !
P13L
DO24
Overload Solenoid
Concrete Pump
Reverse - DO24 !
P14L
PO55
Disconnected / Overload
Solenoid Stroke Limiter
- PO55 !
R = Remote
R01M
Emergency-Stop On
Radio Control Box
Activated !
R02M
Low Battery In Radio
Control Box !
R03M
CAN-FST /
Transmission With
Remote Control Fault !
R04M
No Radio Control
Transmission !
R05L
Joy-Stick 1 From
Remote Control Fault !
R06L
Joy-Stick 2 From
Remote Control Fault !
R07L
Joy-Stick 3 From
Remote Control Fault !
R08L
Emergency-Stop Switch
On Radio Control Box
Fault !
37
39
Table of Contents
Table of Contents
3
Commissioning
4
Selecting Local Control
5
Selecting Remote Control
6
Selecting Ram Change Mode
7
Emergency Stop Buttons
8
Override of the E-Stop Manifold
8
Options Box
9
Control and Monitoring Components
10
Menu Control
11
Local Control
12
Remote Control
13
Menu Overview - Main Menu
14
Menu Overview - Submenus
18
Menu Operation - Example
19
Diagnostic System/ "Fault Handling
20
Acknowledging Faults
22
Fault Definition
22
Summary of Messages
30
