50 VECTOR CONTROLLER-SERVICE MANUAL
Activating full outrigger
extension setup
Step 1
Put the “working area selection switch” to the center
position.
The assistant describes the selected area and guides
you to the next step.
Step 2
The system is waiting for a command.
To confirm full outrigger extension setup activate the
“OFF” switch which will deactivate EASy.
Step 3
Activate the “OFF” switch
You have now deactivated EASy and may proceed with
full outrigger extension.
OFF

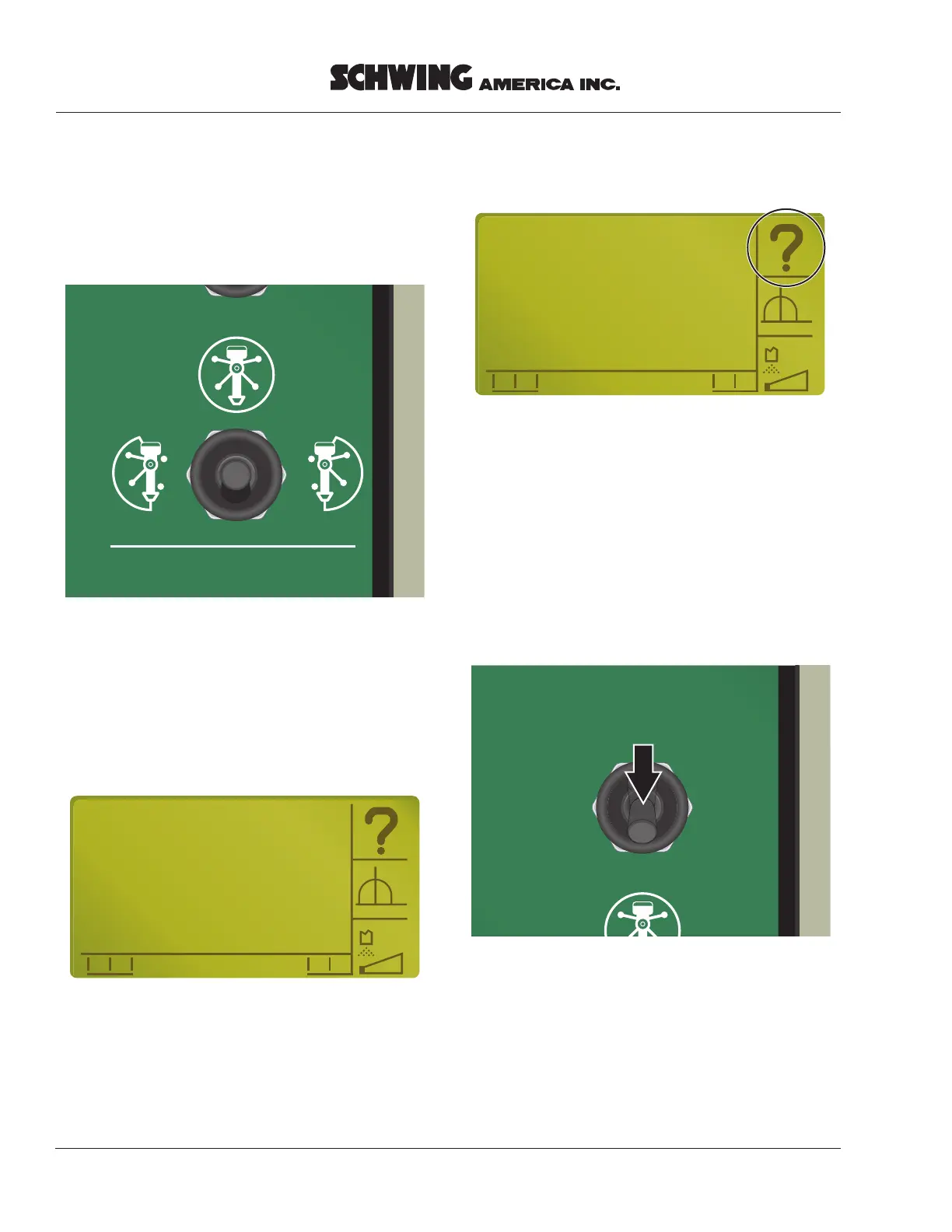

Figure 39
Working area selection switch in the
“center” position
EASy Assistant
Normal setup now?
EASy will be deactivated
Please confirm
with 'OFF' switch!
Or select left or right
working area!
Figure 40
Assistant Setup Screen
EASy Assistant
Normal setup now?
EASy will be deactivated
Please confirm
with 'OFF' switch!
Or select left or right
working area!
Figure 41
“Entry expected” symbol
OFF
Figure 42
“OFF” switch
