Schwinn 150 - Console Mast Cable Connection; Console Mast Installation

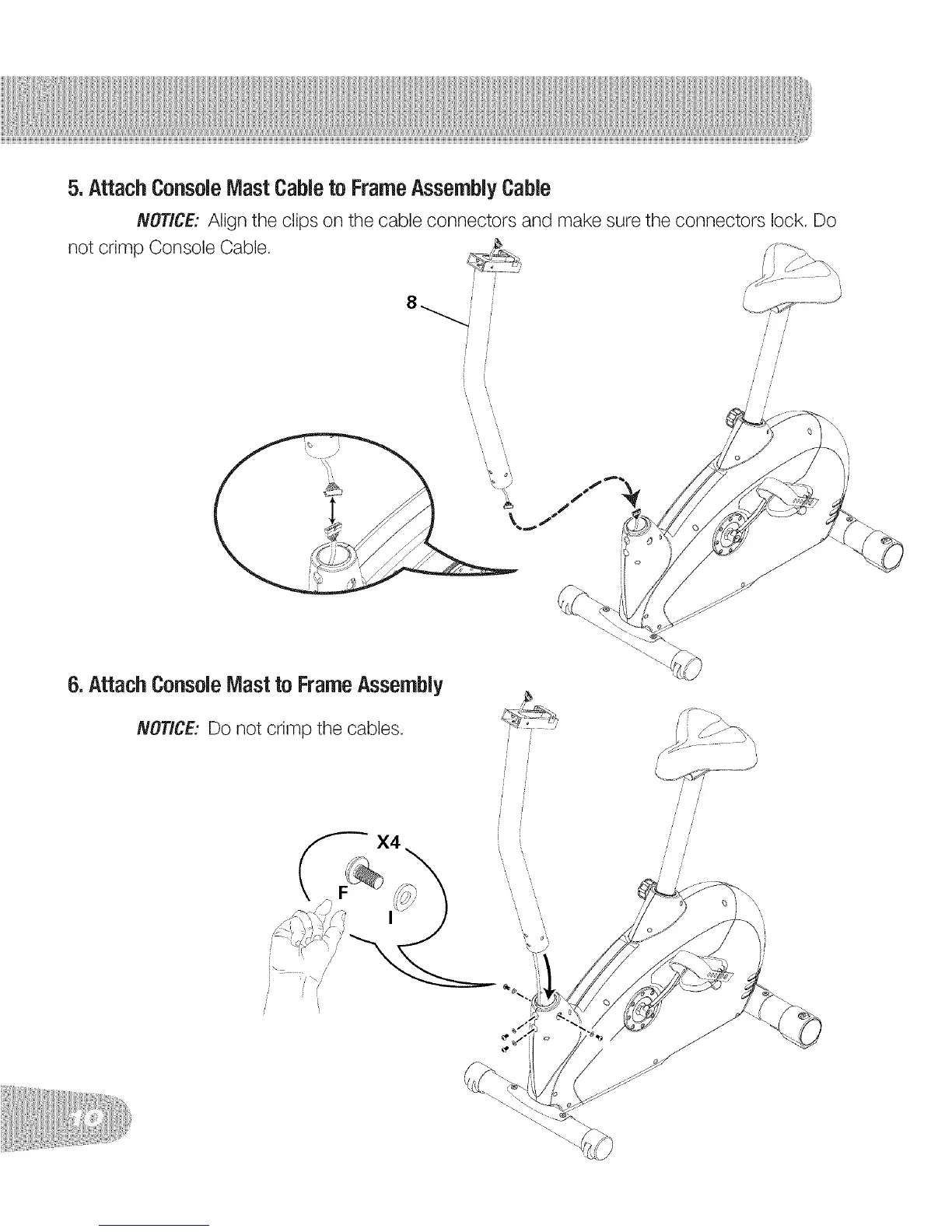

5.AttachConsoleMastCableto FrameAssemblyCable
NOTICE:Align the clips on the cable connectors and make sure the connectors lock. Do
not crimp Console Cable.
/ /
6. Attach Console Mast to FrameAssembly
NOTICE: Do not crimp the cables.
