Schwinn 170 - Shrouds

33
)
(
(
(
E

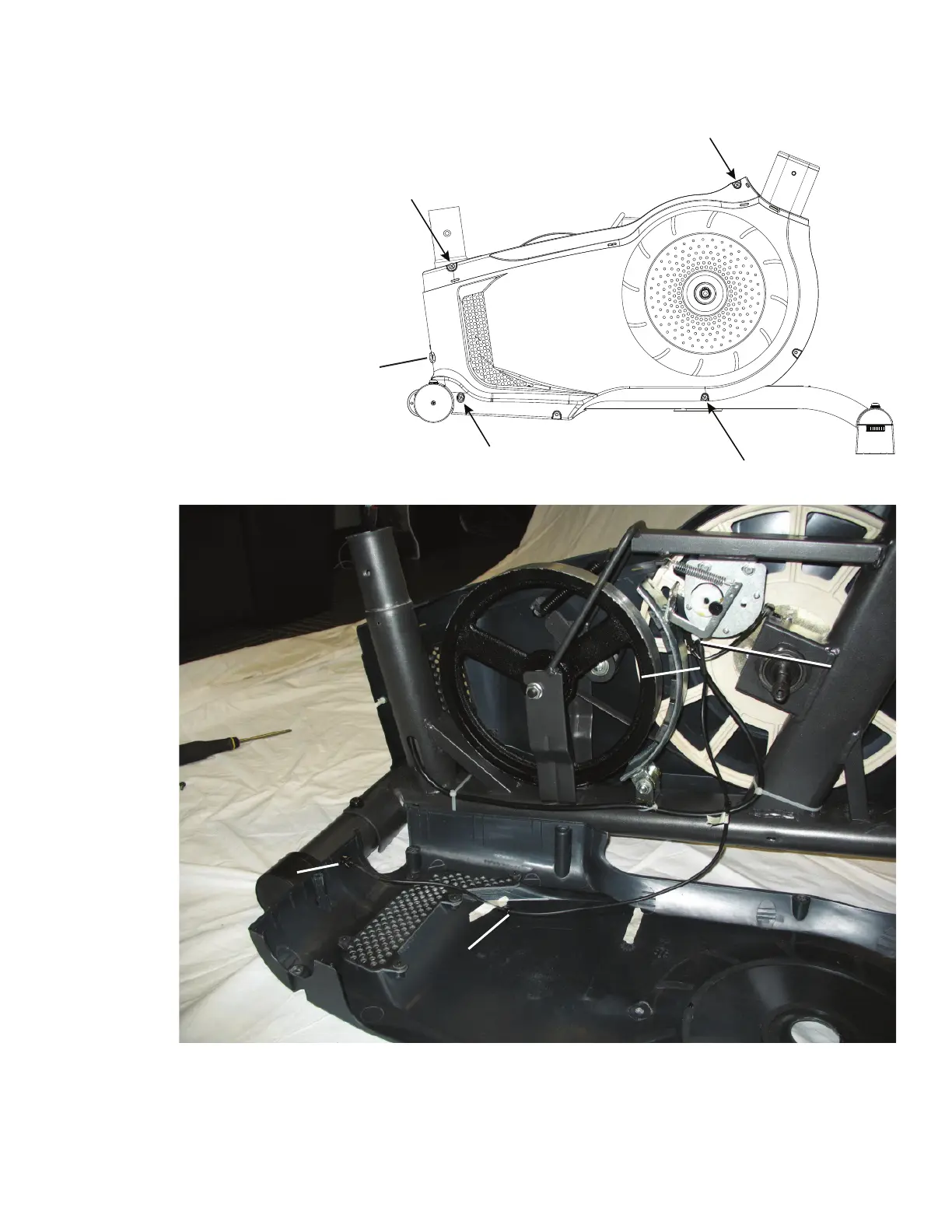

11. Using a #2 Phillips Screwdriver, remove the 4 screws
(indicated) that secure the Left Shroud. Remove the bottom
VFUHZV¿UVWDQGWKHQWKHWRSVFUHZV6ORZO\UHPRYHWKH/HIW
Shroud.
Note: Find the Power Inlet (E) in the Left Shroud.
Disconnect the Power Inlet cable (E1) from the
wiring harness (F).
NOTICE: Be sure not to cut or pinch any
cables.
