Initial Set-up - Attach the Handlebars
Parts: Handlebar, main frame
Hardware: The stem wedge bolt and binder bolt come
attached to the handlebar. Stem wedge bolt cap.
Tools: 6 mm allen wrench, grease
1. Remove the cap covering the stem wedge bolt.
2. Apply a light layer of grease to the stem and
frame head tube.
3. Insert the stem of the handlebar into the frame head
tube until the Minimum Insertion mark is not visible.
If necessary, unscrew the stem wedge bolt until
there is play in the stem wedge.
NOTICE
The stem may break or damage may occur if the stem
is not inserted the minimum amount. Insert the stem
until the Minimum Insertion mark is not visible.
4. Rotate the handle bar so it is square with the fork.
5. Tighten the stem wedge bolt to lock the stem
in place.
6. Replace the cap onto the stem wedge bolt.
7. Loosen the handlebar binder bolt and rotate the
handlebar into the riding position.
8. Using the 6 mm allen wrench, tighten the handlebar
binder bolt until the handlebar is locked in place.

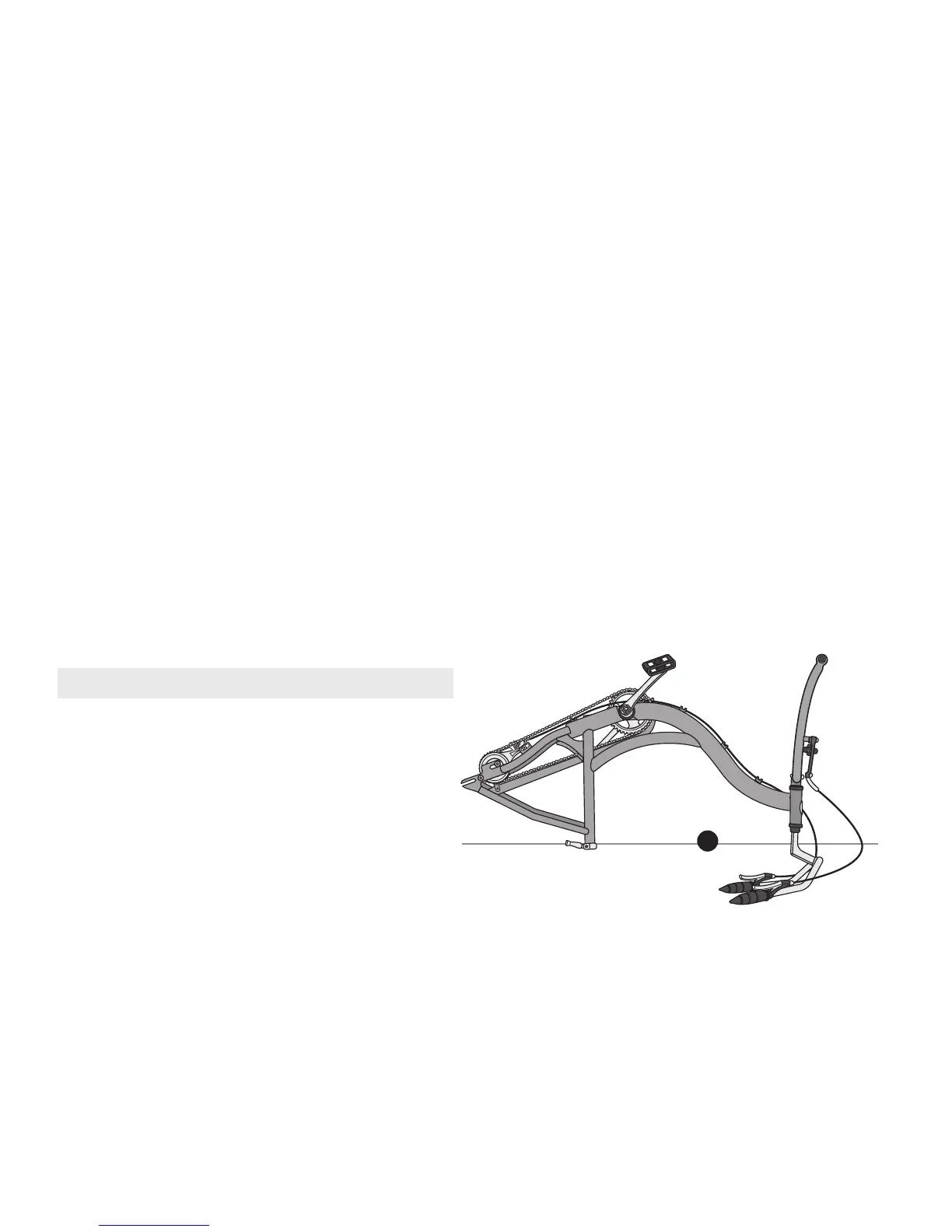

9. Turn the tricyle assembly over so it rests on the
handlebar and main frame.
