30

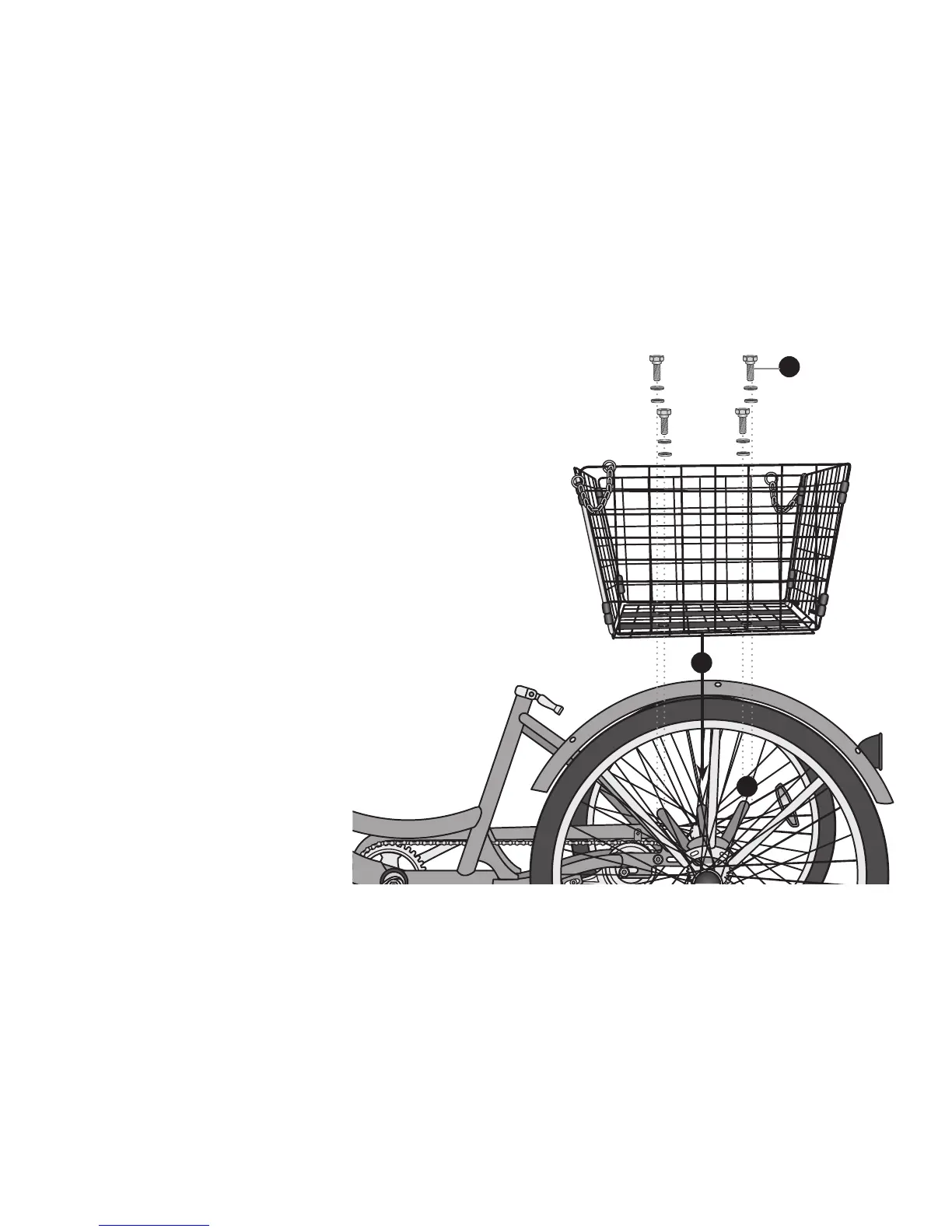

Attach the Wire Basket
Parts: Wire basket, rear frame
Tools: Phillips Head screwdriver
Hardware: 4 screws, 8 washers The hardware comes
attached to the frame. Remove the hardware
before you begin this procedure.
1. Place the wire basket on the rear frame and align
the slots on the basket with the holes in the frame.
Note: The slots on the wire basket are positioned
so the basket can only be attached one way. If the
slots do not line up properly rotate the basket 180
degrees.
2. Insert two washer onto the screw.
3. Insert the screws and washer through the basket
slots onto the rear frame.
4. Repeat steps three and four for the remaining
washers and screws.
1
2
3
