Schwinn 26” - Attach the Rear Frame

11
Attach the Rear Frame
Parts: rear frame, main frame
Hardware: 4 nuts, 4 square bolts, 4 washers, come
attached to the frame. Remove this hardware
before you begin this procedure.
Tools: None required.

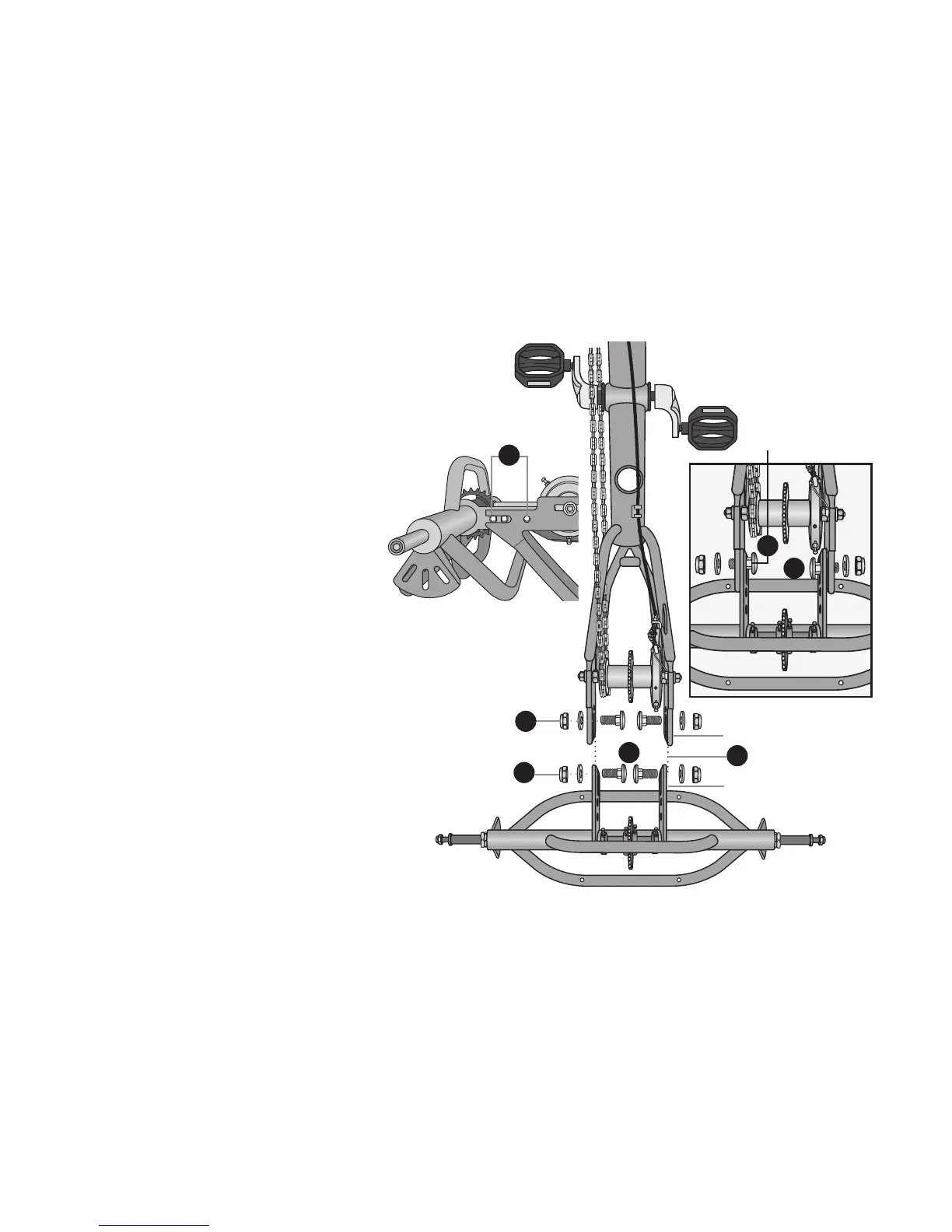

1. Align the pronged end of the rear frame
with the pronged end of the main frame,
and slide the frames together.
2. On one side, line up the square bolt with
the slot and insert a bolt through both the
rear frame hole and main frame slots.
3. Repeat on the opposite side.
4. Slide a washer onto each bolt and loosely tighten the nut.
5. Adjust the position of the rear frame holes so the
remaining square holes line up with the slots on the main
frame drop-outs.
6. Insert two bolts through the rear and main frame.
7. Slide a washer onto each bolt and loosely tighten
with the nut. Repeat on the opposite side.
Note: Do not tighten the bolts at this time. This will be
done after the secondary chain is attached.
6
rear frame prongs
1
main frame prongs
Theatsideofthe
square bolt should
be facing up.
Tip!
3
4
5
2
7
Side view of frame alignment
