Schwinn 26” - Page 23

20

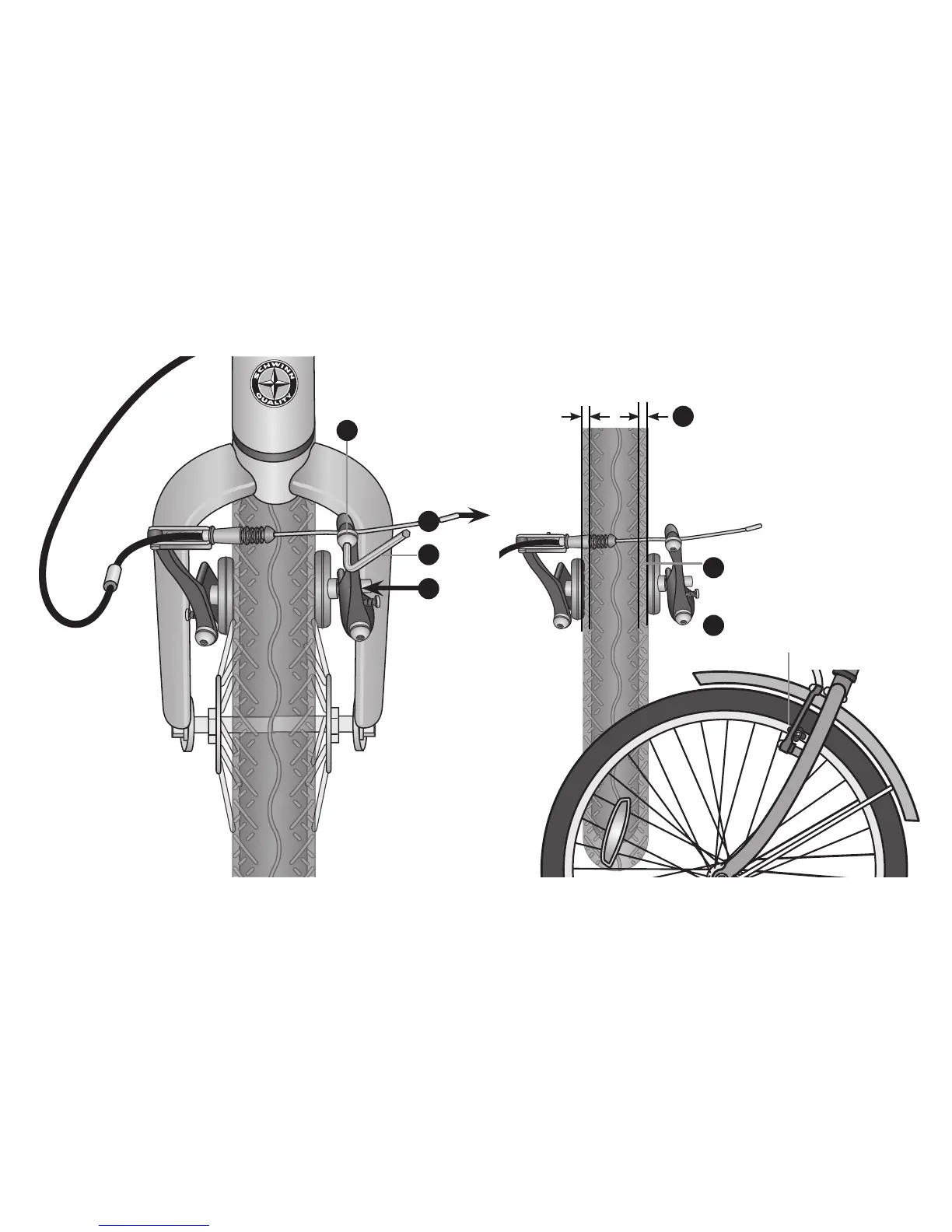

Check for the brake pads for the following conditions:
See pages 19 -22 to adjust and align the brake pads.
3
4
Brake pads are centered
on the wheel rim.
Clearance between the
brake pad and wheel rim is
a 1/8” (3 mm) gap.
Brake pads are aligned
(parallel) with the rim
1/8”
3
cable anchor bolt
1
2
1
2
