Schwinn AD6 Assembly Manual

9
2
6mm
X4
D
E
4. Remove Hardware and Install Batteries into Console
Note: Make sure that the batteries point in the direction of the +/– indicators in the battery bay. Hardware is pre-installed
and not on the Hardware Card ( *).
Donotmixalkaline,standard(carbon-zinc),orrechargeable(Ni-Cd,Ni-MH,etc)batteries.

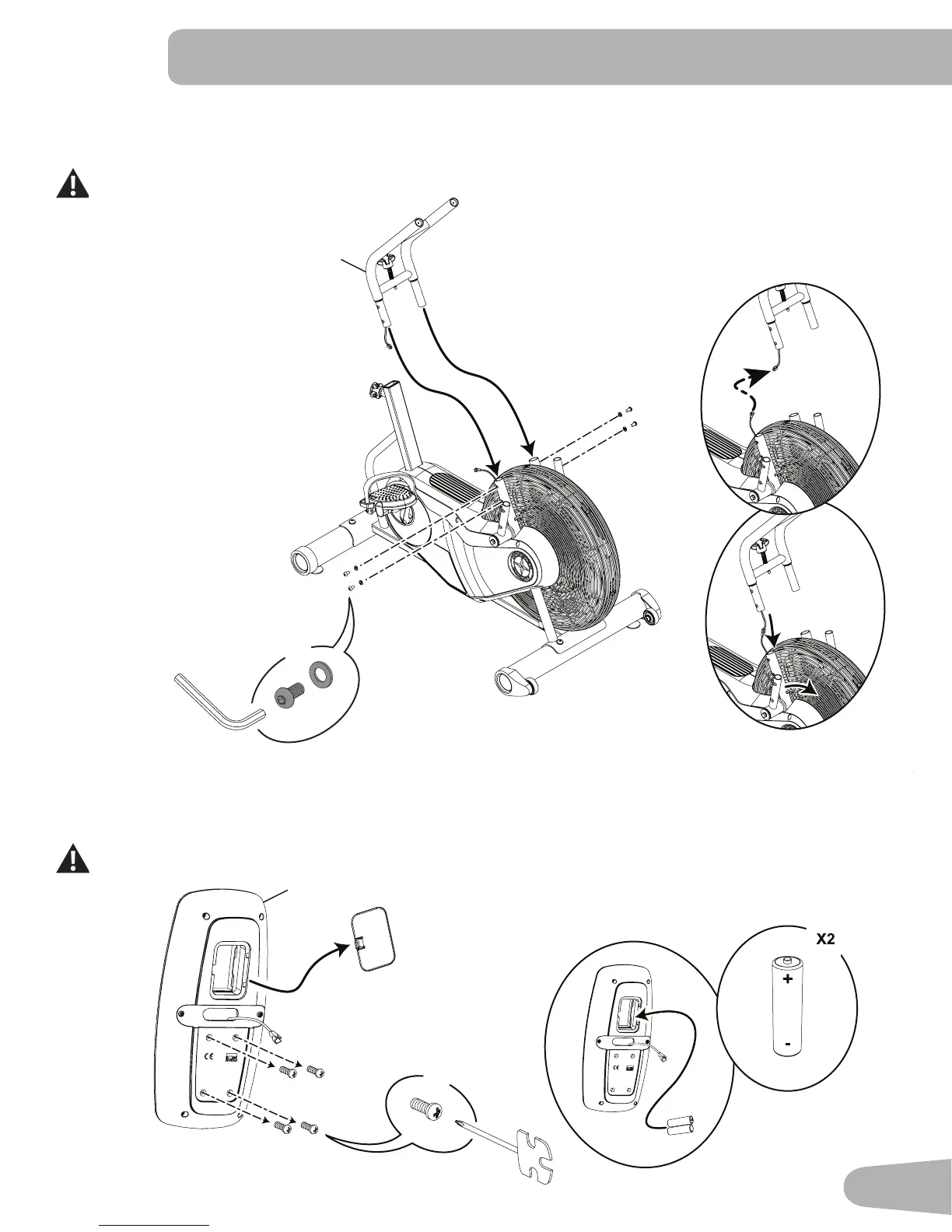

3. Connect Cables and Attach the Console Support Bar to Frame Assembly
Note:Donotcrimpthecables.PullthelowercabletoremoveanyslackasyouinserttheConsoleSupportBar.
In order to avoid possible serious injury, when inserting the tube ends into the Frame Assembly be careful to avoid
fingers or hands being caught or pinched.
3
*
X4
#2
