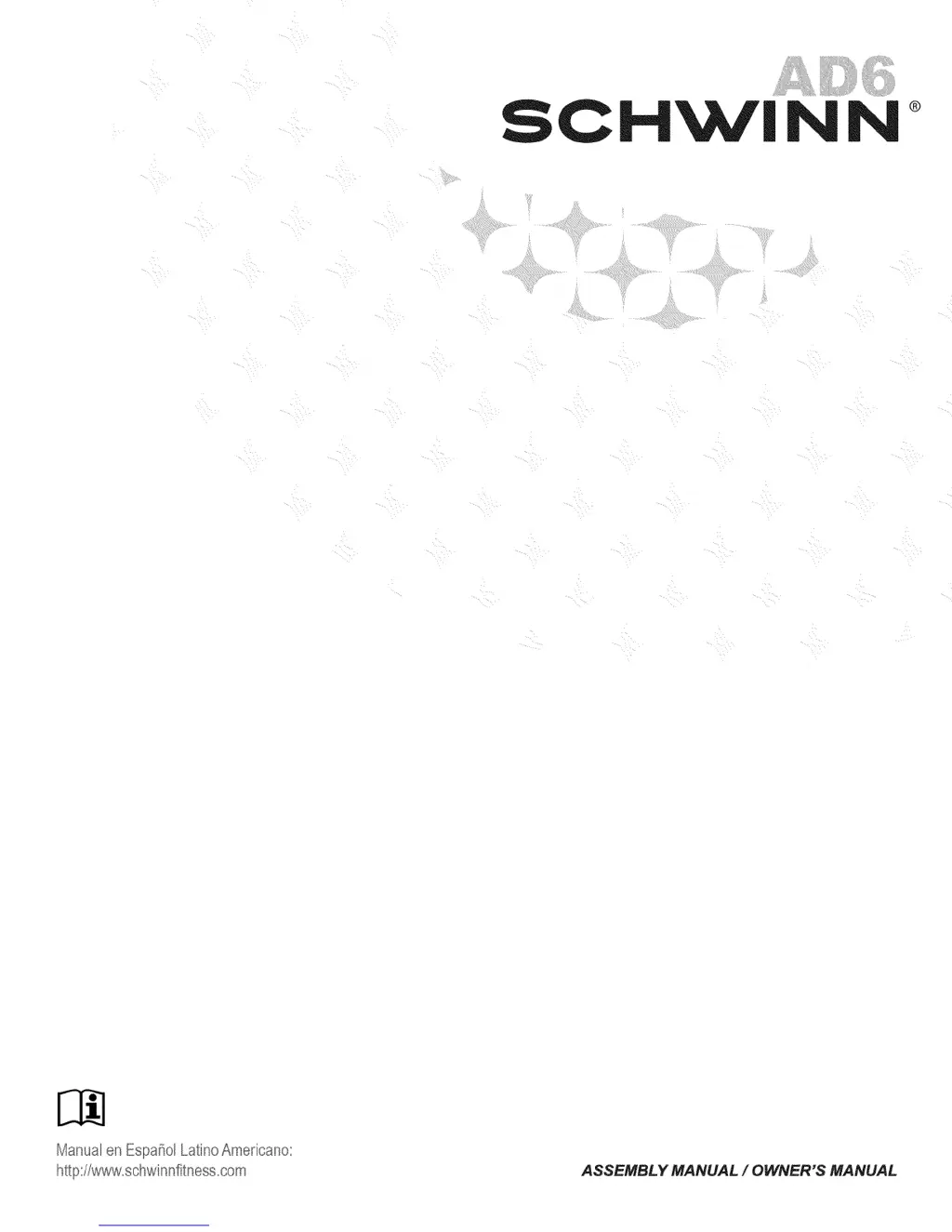

Schwinn AD6 User Manual (English)

Other manuals for Schwinn AD6

Questions and Answers:

D
Dr. Richard JohnsonAug 16, 2025
How to fix Schwinn AD6 console that won't turn on?
- K
  Kayla BellAug 17, 2025
  If the Schwinn Elliptical Trainer console won't power up, first ensure the batteries are correctly installed, replacing them with new ones if needed. Check that all wires in the cable are intact, replacing the cable if any are crimped or cut. Also, verify the cable is securely connected and properly oriented, ensuring the small latch on the connector lines up and snaps into place. Inspect the console display for cracks or damage, replacing it if damaged. If the issue persists, it may be necessary to contact your local Schwinn™ distributor.
V
vlongAug 19, 2025
Why is my Schwinn AD6 making a clicking sound?
- J
  Jessica HarrisAug 19, 2025
  If you hear a clicking sound when pedaling your Schwinn Elliptical Trainer, remove the pedals, ensure there is no debris on the threads, and then reinstall the pedals.
R
Rachel MolinaAug 22, 2025
What to do if Schwinn Elliptical Trainer heart rate is not displayed?
- A
  Amanda FlemingAug 22, 2025
  If the Schwinn Elliptical Trainer operates but the telemetric heart rate isn't displayed, ensure the strap is POLAR™ compatible and uncoded, positioned directly against the skin, and the contact area is wet. Replace the strap's batteries if it has replaceable batteries. Try moving the unit away from potential sources of interference like TVs or microwaves. If the issue remains after eliminating interference, replace the strap. If the heart rate still doesn't function, consider replacing the console.
J
jwilliamsAug 25, 2025
Why is the speed display on my Schwinn Elliptical Trainer always 0?
- D
  David RamirezAug 26, 2025
  If the speed displayed on your Schwinn Elliptical Trainer is always “0” or stuck in Pause mode, make sure the data cable is connected to the back of the Console and the main frame assembly. Also, make sure the Speed Sensor Magnet and the Speed Sensor are in place.
D
Donna CobbAug 28, 2025
Why is there no speed/RPM reading on my Schwinn AD6?
- B
  brandonscottAug 28, 2025
  If there's no speed/RPM reading on your Schwinn Elliptical Trainer, check that all wires in the cable are intact and replace the cable if any are cut or crimped. Ensure the cable is securely connected and oriented properly, with the small latch on the connector lined up and snapped into place. Verify the magnet is in place on the pulley. Also, the Speed Sensor Assembly should be aligned with the magnet and connected to the data cable; realign the sensor if necessary, and replace it if damaged.
J
Jordan NixonAug 30, 2025
Why does my Schwinn AD6 console shut off during use?
- P
  Philip LaraAug 30, 2025
  If the Schwinn Elliptical Trainer console shuts off or enters sleep mode while in use, check that all wires in the cable are intact, replacing the cable if any are cut or crimped. Make sure the cable is securely connected and oriented properly, ensuring the small latch on the connector lines up and snaps into place. Verify that the speed sensor magnet is in place on the pulley. If the problem persists, contact your local Schwinn™ distributor.
M
Mark HallSep 2, 2025
How to fix inaccurate speed display on Schwinn AD6 Elliptical Trainer?
- J
  Janet JohnsonSep 2, 2025
  If the speed displayed on your Schwinn Elliptical Trainer is not accurate, the display may be set to the wrong unit of measure (English/Metric). Change the display units (consult “Console Service Mode”).
E
ericherringSep 5, 2025
How to level a Schwinn AD6 that rocks?
- A
  amanda17Sep 5, 2025
  If the Schwinn Elliptical Trainer rocks or doesn't sit level, turn the leveling feet in or out to level the bike. If the surface is extremely uneven, move the bike to a more level area.
J
Jennifer SmithSep 8, 2025
What does 'Lbatt' mean on my Schwinn Elliptical Trainer?
- S
  Sonya RobertsSep 8, 2025
  If the Schwinn Elliptical Trainer console displays an “Lbatt” error code, replace the batteries.
J
jaime03Sep 12, 2025
Why are the pedals loose on my Schwinn Elliptical Trainer?
- R
  Richard NelsonSep 12, 2025
  If the pedals are loose or the Schwinn Elliptical Trainer is difficult to pedal, ensure the pedal is tightened securely to the crank, making sure the connection isn't cross-threaded. Also, the crank should be tightened securely to the axle.

Schwinn AD6 Specifications

General

Brand	Schwinn
Model	AD6
Category	Elliptical Trainer
Language	English

Summary

Assembly Safety Instructions

Safety Labels and Serial Number

SPECIFICATIONS

Pre-Assembly Area Setup

Prepare the workout area and understand assembly guidelines.

Assembly Process Tips

Follow general advice for a smooth and correct assembly process.

PARTS LIST AND DIAGRAM

HARDWARE AND TOOLS REQUIRED

ASSEMBLY GUIDE

Frame Stabilizer Installation

Secure the front and rear stabilizers to the main frame.

Pedal and Strap Installation

Install pedals and their corresponding straps onto the crank arms.

Console Cable and Support Bar Connection

Link console cables and attach the support bar to the frame.

Console Battery Installation

Insert AA batteries into the console for power.

Console Mounting and Cable Connection

Connect the console cable and mount the console unit.

Water Bottle Holder Attachment

Mount the water bottle holder to the frame assembly.

Foot Peg and Handlebar Arm Installation

Connect foot pegs and handlebar arms to the frame.

Seat Post to Frame Mounting

Insert and secure the seat post into the frame assembly.

Seat to Seat Post Mounting

Mount the seat onto the seat post and tighten securely.

Post-Assembly Inspection

Review all assembly steps and ensure all hardware is tight.

PRE-OPERATION CHECKLIST

Moving the Equipment

Instructions on how to safely move the exercise equipment.

Machine Leveling Procedure

Adjust the machine's levelers for stability on uneven surfaces.

GENERAL SAFETY INSTRUCTIONS

PRODUCT FEATURES OVERVIEW

Optional Accessories

Details on optional accessories like reading rack and wind screen.

CONSOLE FUNCTIONALITY

Console Display Information

Explanation of the information shown on the console's LCD screen.

Console Button Operations

Description of buttons like Start/Stop, Increase, and Decrease.

Heart Rate Monitor Usage

How to use and requirements for the heart rate monitor.

Target Heart Rate Zones

Guide to understanding target heart rate zones for fat burning.

OPERATING THE MACHINE

Seat Height Adjustment

Guide to correctly adjusting the seat height for optimal comfort.

Pedal Strap Securing

Instructions for securing feet on pedals with straps.

Basic Workout Guidance

Basic guidance on how to operate the exercise bike.

Fan Assembly Storage Lock

How to lock the fan assembly when the machine is not in use.

Console Power States

Explanation of the console's power states and idle mode.

Console Sleep Mode

Information on the console's automatic power-saving mode.

CONSOLE PROGRAMS AND MODES

Console Initial Setup

Setting up the console, including altitude adjustment.

Quick Start Exercise

How to begin an exercise session immediately.

Custom Duration Workout

Setting a personalized duration for workouts.

Workout Pausing and Stopping

Procedures for pausing and ending exercise sessions.

Workout Results Display

Displays workout summary data after completion.

CONSOLE SERVICE MODE ACCESS

ROUTINE MAINTENANCE

Daily Cleaning and Checks

Routine checks and cleaning performed each day.

Weekly Cleaning and Checks

Cleaning and checks to be done on a weekly basis.

Monthly Component Checks

Periodic checks of bolts, screws, and seat operation.

REPLACING CONSOLE BATTERIES

MAINTENANCE PARTS LIST

TROUBLESHOOTING GUIDE

PRODUCT WARRANTY INFORMATION

Warranty Coverage Details

Details on what the warranty covers and its duration.

Warranty Remedy Limitations

Explains the exclusive remedies available under the warranty.

Warranty Expiration and Service

Information on post-warranty service and part availability.
