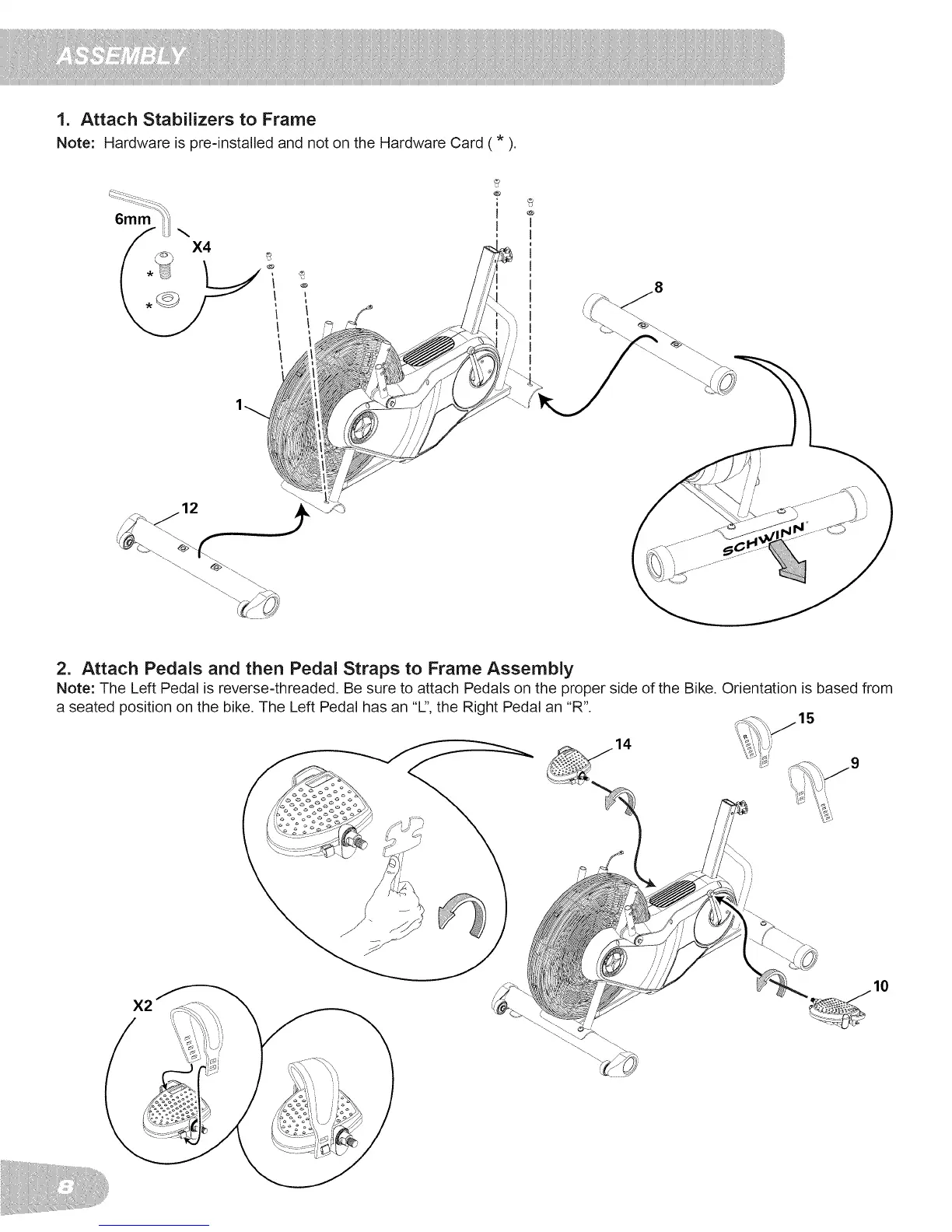

1. Attach Stabilizers to Frame
Note: Hardware is pre-installed and not on the Hardware Card ( * ).
I ®
J
12
@
2. Attach Pedals and then Pedal Straps to Frame Assembly
Note: The Left Pedal is reverse=threaded. Be sure to attach Pedals on the proper side of the Bike. Orientation is based from
a seated position on the bike. The Left Pedal has an "L', the Right Pedal an "R".
14
X2
