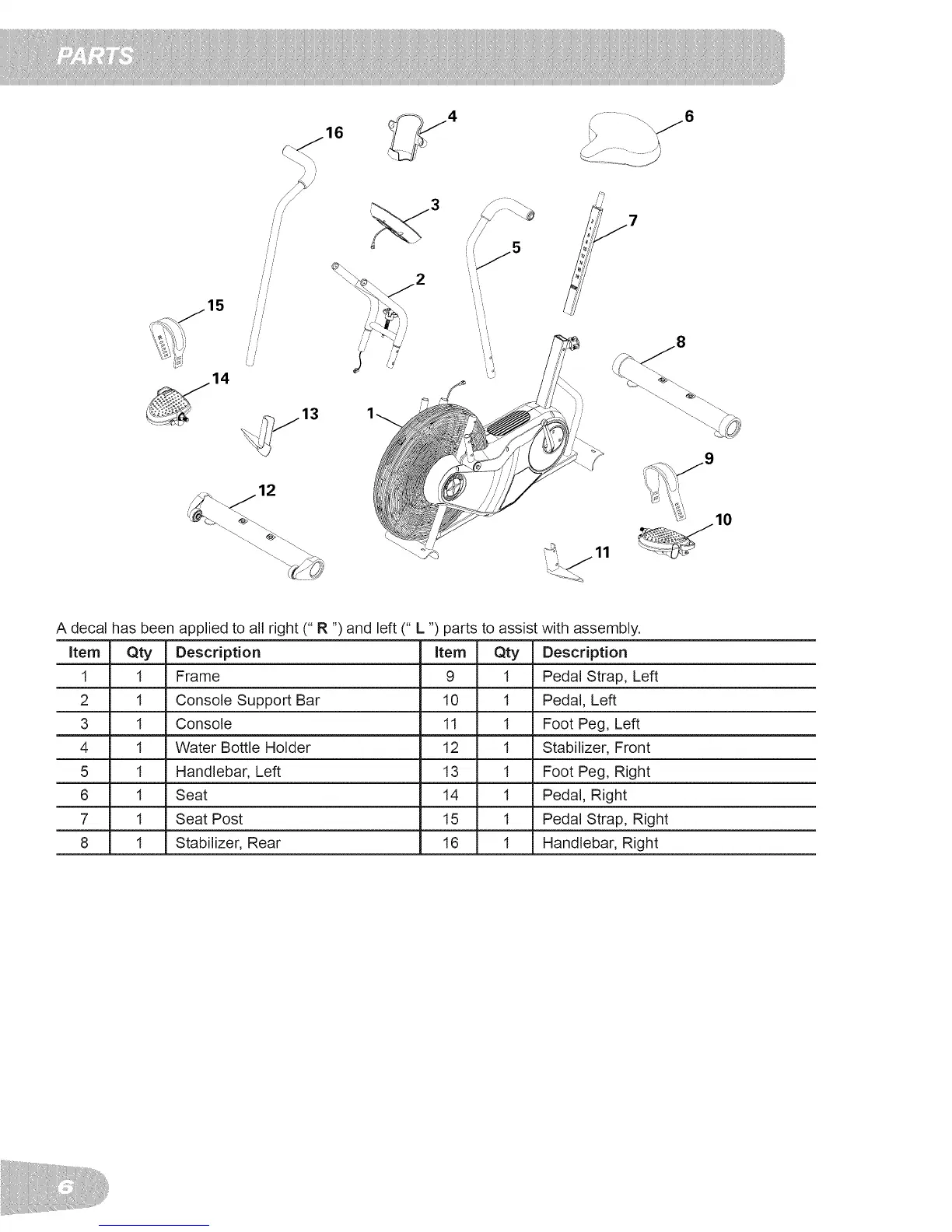

Schwinn AD6 - PARTS LIST AND DIAGRAM

16
13
12
A decal has been applied to all right (" R ") and left (" L ") parts to assist
Item Qty Description Item
1 1 Frame 9
2 1 Console Support Bar 10
3 1 Console 11
4 1 Water Bottle Holder 12
5 1 Handlebar, Left 13
6 1 Seat 14
7 1 Seat Post 15
8 1 Stabilizer, Rear 16
with assembly.
Qty Description
1 Pedal Strap, Left
1 Pedal, Left
1 Foot Peg, Left
1 Stabilizer, Front
1 Foot Peg, Right
1 Pedal, Right
1 Pedal Strap, Right
1 Handlebar, Right
