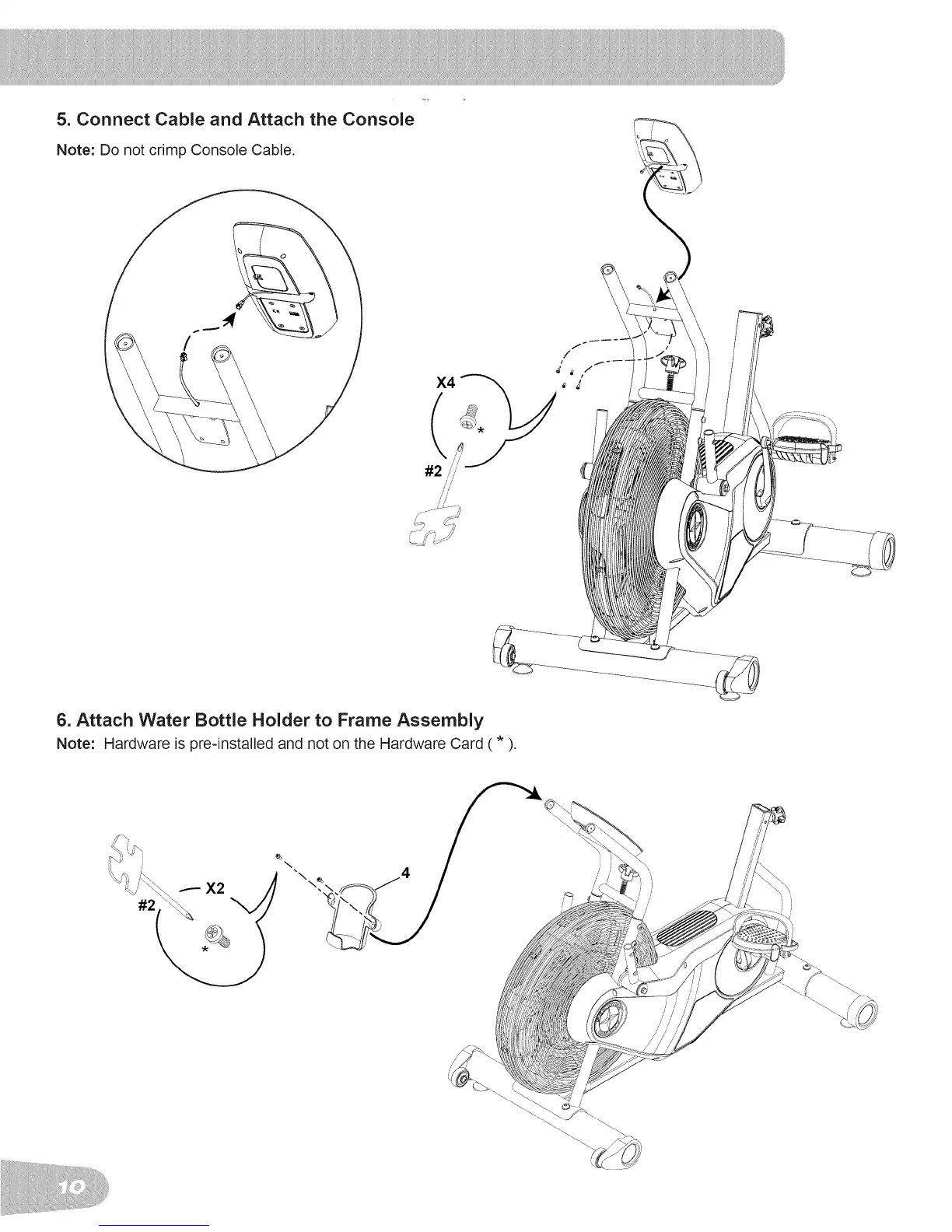

5. Connect Cable and Attach the Console
Note: Do not crimp Console Cable,
6. Attach Water Bottle Holder to Frame Assembly
Note: Hardware is pre-instaled and not on the Hardware Card ( * ),
