Schwinn IC4 - Maintenance Parts

24

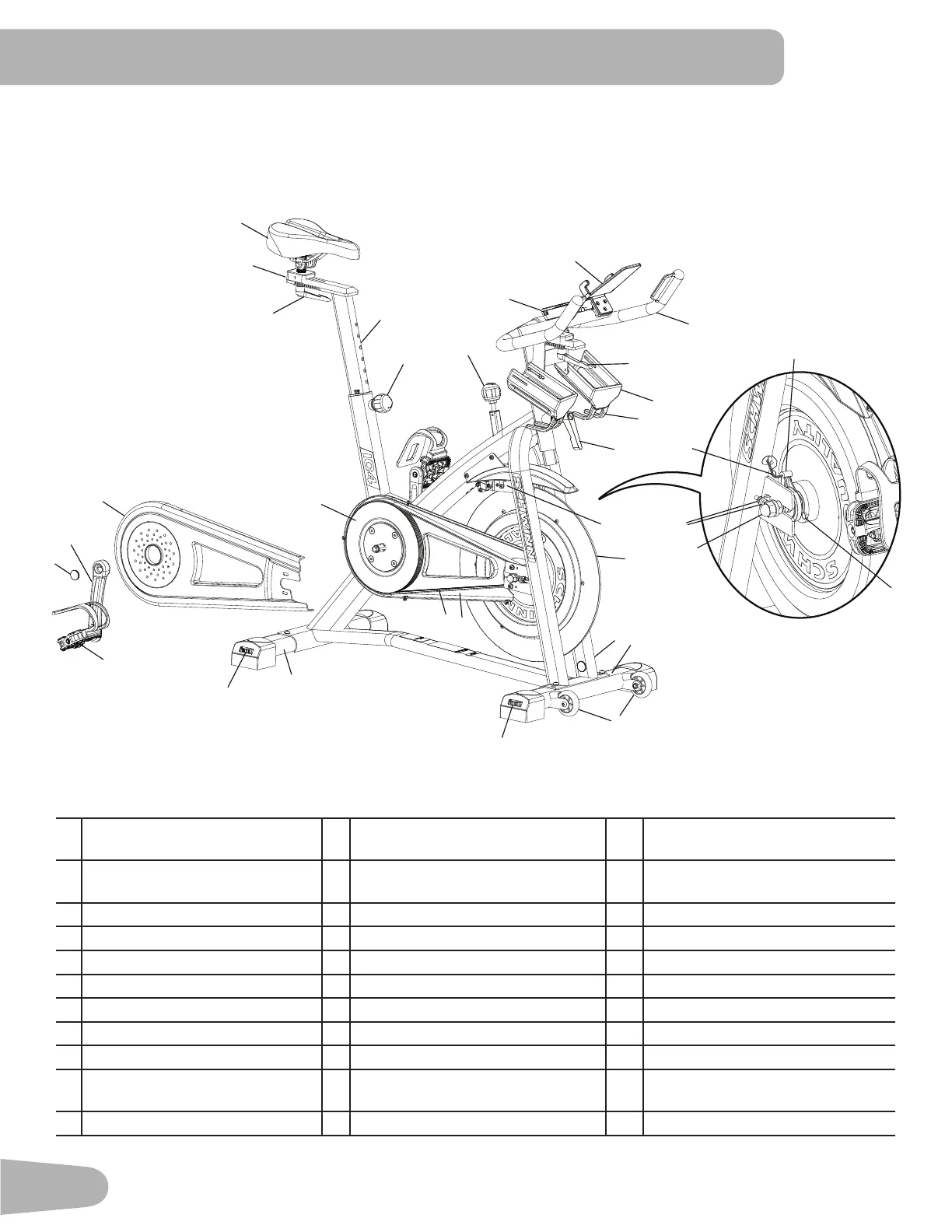

Maintenance Parts
A Adjustment Handle L Dumbbell Rack (Dumbbells only
supplied with the IC4 machine)
W Drive Pulley
B Adjustment Handle, Seat Slider M Adjustment Handle, Handlebar
Post
X Cover, Drive Belt
C Seat N Brake Assembly Y Crank Arm
D Seat Post O Flywheel Z Crank Cap
E Seat Post Adjustment Knob P Power Inlet AA Pedal w/Foot Restraint
F Brake/Resistance Knob Q Front Stabilizer BB Axle Nut
G Console R Transport Wheel CC Flywheel Retainer Nut
H Media Tray S Leveler DD Data Cable
I Handlebar T Rear Stabilizer EE Speed Sensor
J Adjustment Handle, Handlebar
Slider
U Drive Belt FF Speed Sensor Magnet
K Water Bottle Holder V Cover, Drive Belt Inside
E
A
B
G
C
F
H
I
J
K
L
M
N
O
P
R
S
S
Q
T
W
X
Z
Y
AA
U
V
D
FF
DD
EE
CC
BB
