Page 12
637-8808 Rev. J

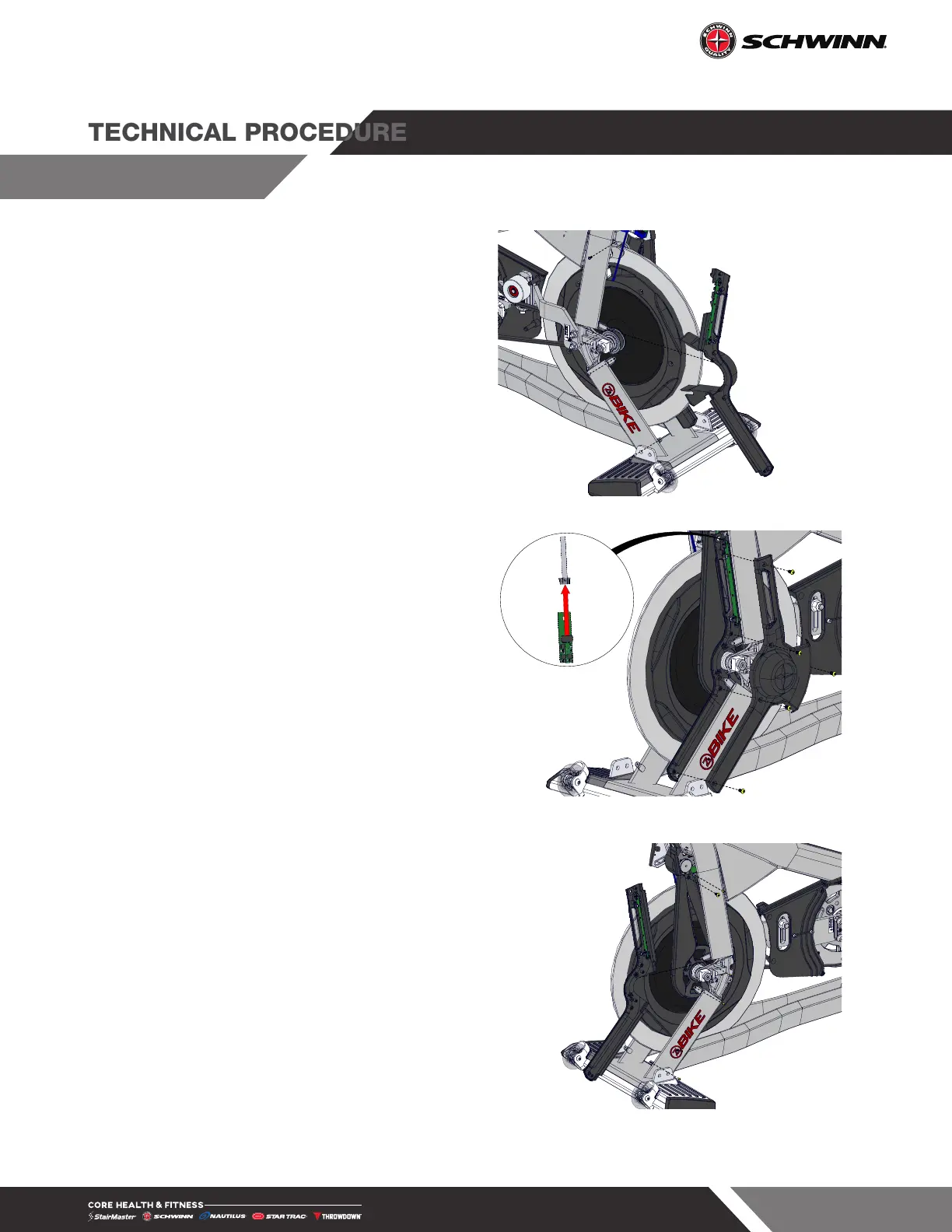

7. Use a #2 phillips screwdriver to remove the
four (4) button head screws securing the inner
right fork guard assembly to the bike, then
remove the inner fork guard.
Fig. 21
8. Use a 3mm allen key to remove the five (5)
button head cap screws from the left side
outer fork guard, then remove the fork guard.
9. Carefully disconnect the LED board cable
from the LED board.
Fig. 22
10. Use a #2 phillips screw driver to remove the
four (4) button head screws securing the
inner left fork cover to the frame, then use a
3mm allen key to remove the single button
head cap screw, finally, remove the inner fork
cover.
Fig. 23
