Technical Procedure

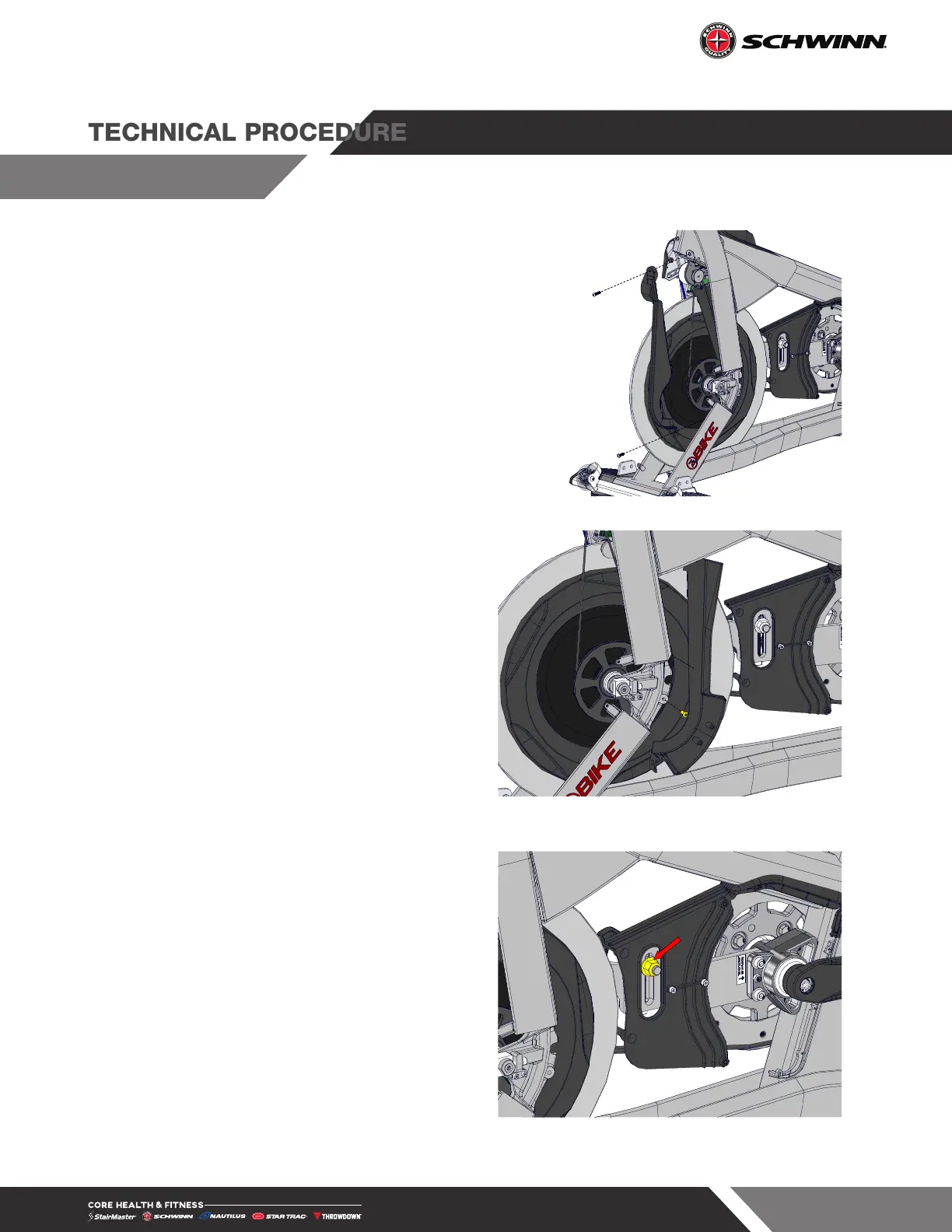

11. Use a 3mm allen key to remove the button
head cap screw from the top of the outer
generator belt guard, use a #2 phillips
screwdriver to remove the pan head machine
screw from the bottom of the belt guard, then
remove the belt guard.
Fig. 24
12. Use a 3mm allen key to remove the button
head cap screw securing the inner generator
belt guard to the frame, then remove the belt
guard.
Fig. 25
13. Mark the location of the belt tension lock nut
(this will be used to help when re-tensioning
the belt) using a permanent marker or pencil.
14. Use a 18mm open-ended wrench to loosen
the lock nut.
Fig. 26
