Page 14
637-8808 Rev. J

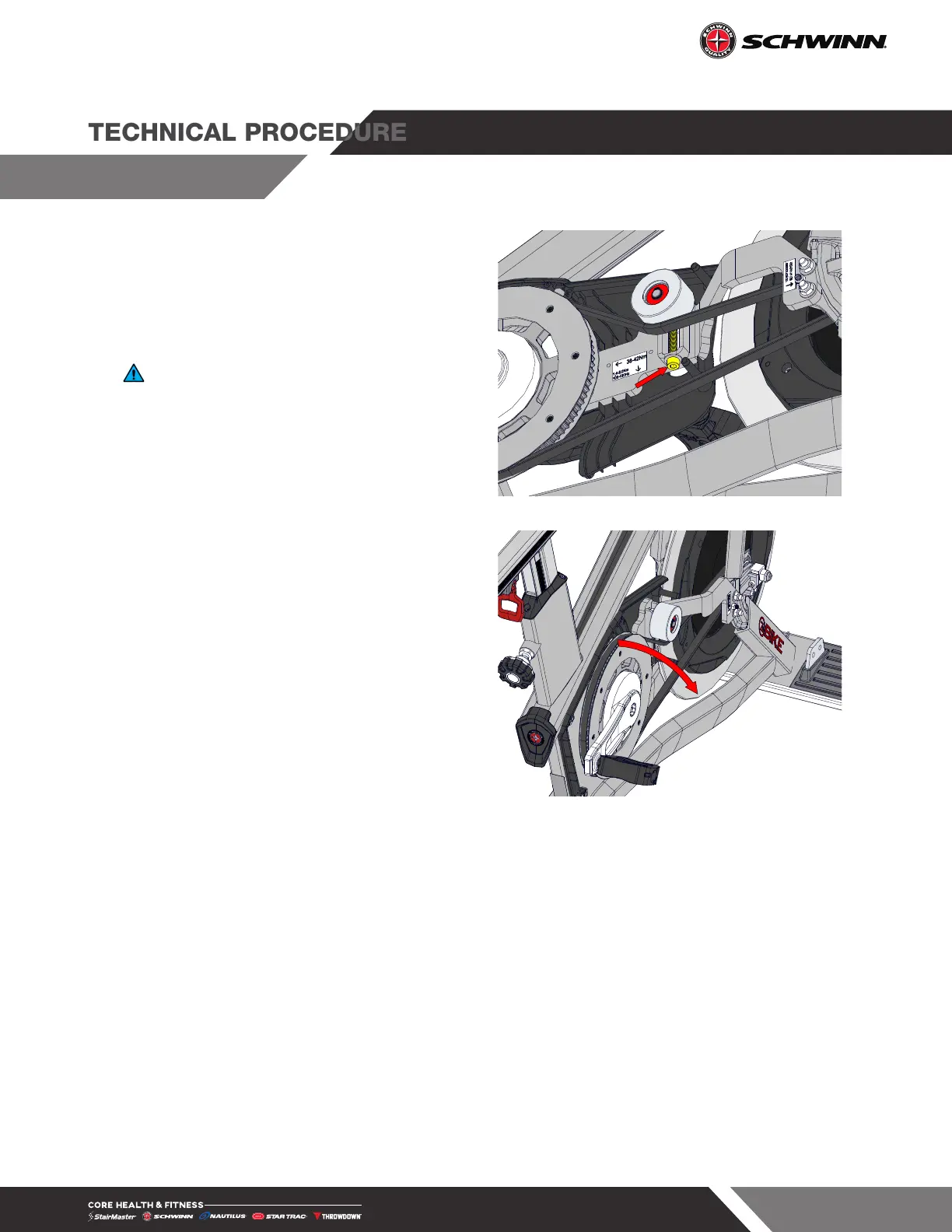

15. Use a 6mm allen key to loosen the belt
tension screw to loosen the belt.
NOTE: Be sure to mark the location of the
belt pulley tension block before loosening, so
during reinstall, the belt tension can be returned
to factory settings.
Fig. 27
16. After loosening the drive belt, walk the belt off
of the crank pulley.
Fig. 28
