Technical Procedure

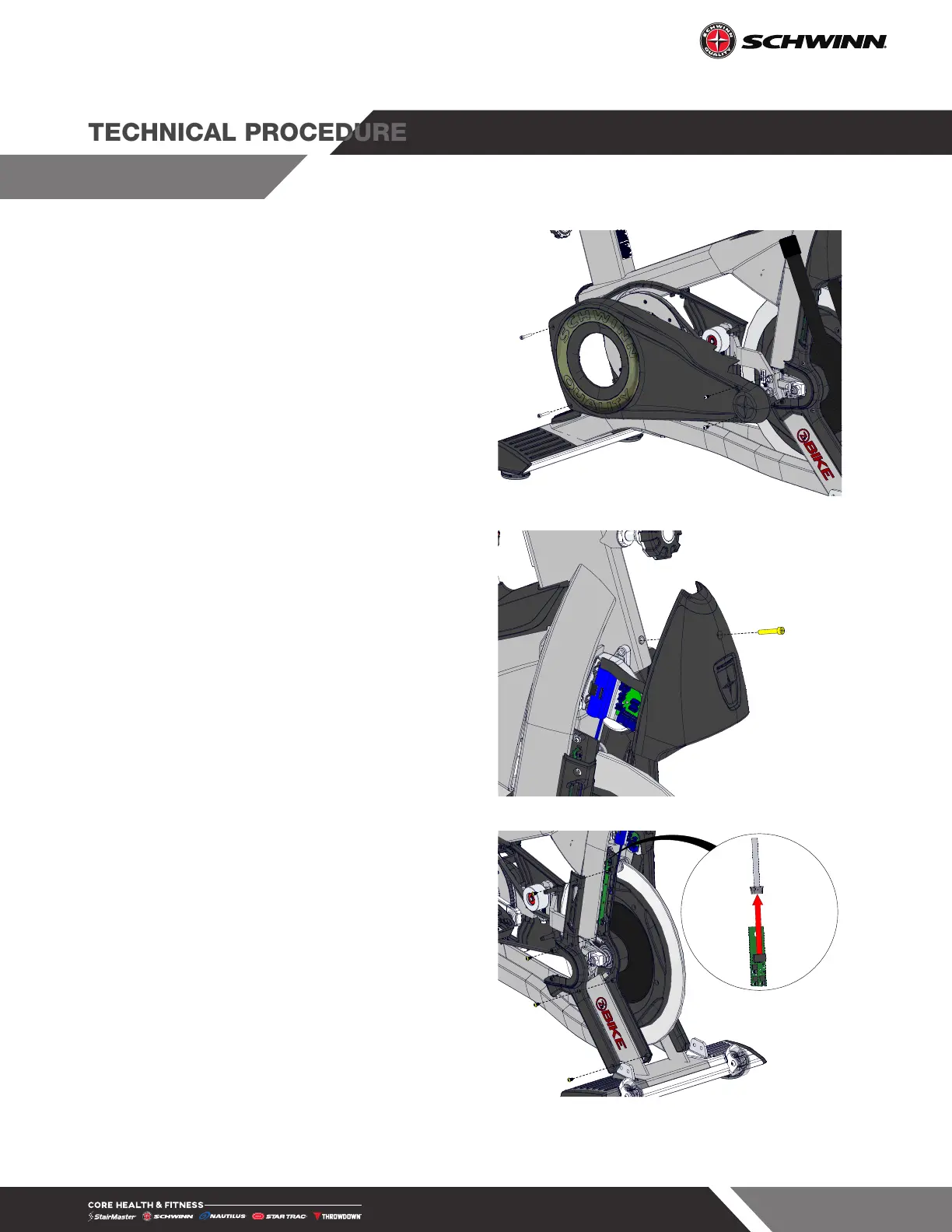

3. Use a 4mm allen key to remove the two (2)
socket head cap screws securing the rear
of the right side belt guard to the bike, use a
3mm allen key to remove the two (2) button
head cap screws from the front of the right
side seld belt guard, then remove the belt
guard.
Fig. 52
4. Use a 4mm allen key to remove the socket
head cap screw securing the nose cover to
the front of the bike frame, then remove the
nose cover.
Fig. 53
5. Use a 3mm allen key to remove the four (4)
button head cap screws from the right side
outer fork guard, then remove the fork guard.
6. Carefully disconnect the LED board cable
from the LED board.
Fig. 54
