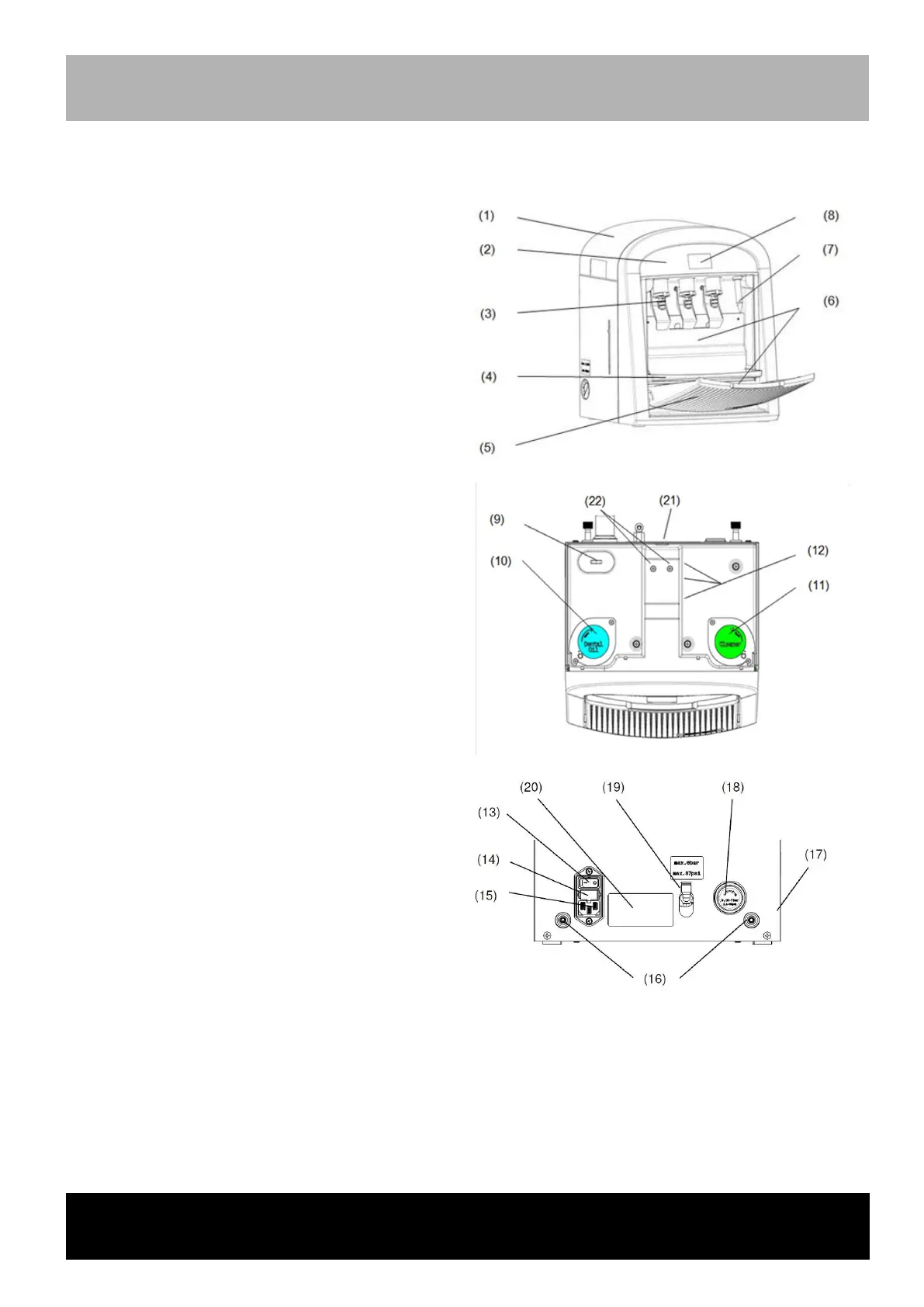

Device overview
(1) Cover
(2) Membrane keypad
(3) Plug-in position for turbine adapter
(2x Type 1 / 1x Type 2) or
INTRAmatic ISO 3964 maintenance couplings
(3x Type 3 / 2x Type 2 / 1x Type 1)
(4) Collecting tray
(5) Flap
(6) Absorption pad (2x)
(7) Collet care nozzle
(8) Display
(9) USB stick
(10) Filling opening for dental oil
(11) Filling opening for cleaner
(12) Holding bracket for testing adapter
(21) USB port
(22) Media aeration
(13) Power switch
(14) Mains fuse drawer
(15) Power line input
(16) Drain hose for dental oil and cleaner
(17) Pressure indicator
(18) Pressure setting
(19) Compressed air input
(20) Type plate
