3.0 Initial Setup |7
3.2.3 Attaching the extended probe holder accessory
The extended probe holder accessory (IVM-530-00) attaches directly to
the end of the IVM as show in the photograph below.

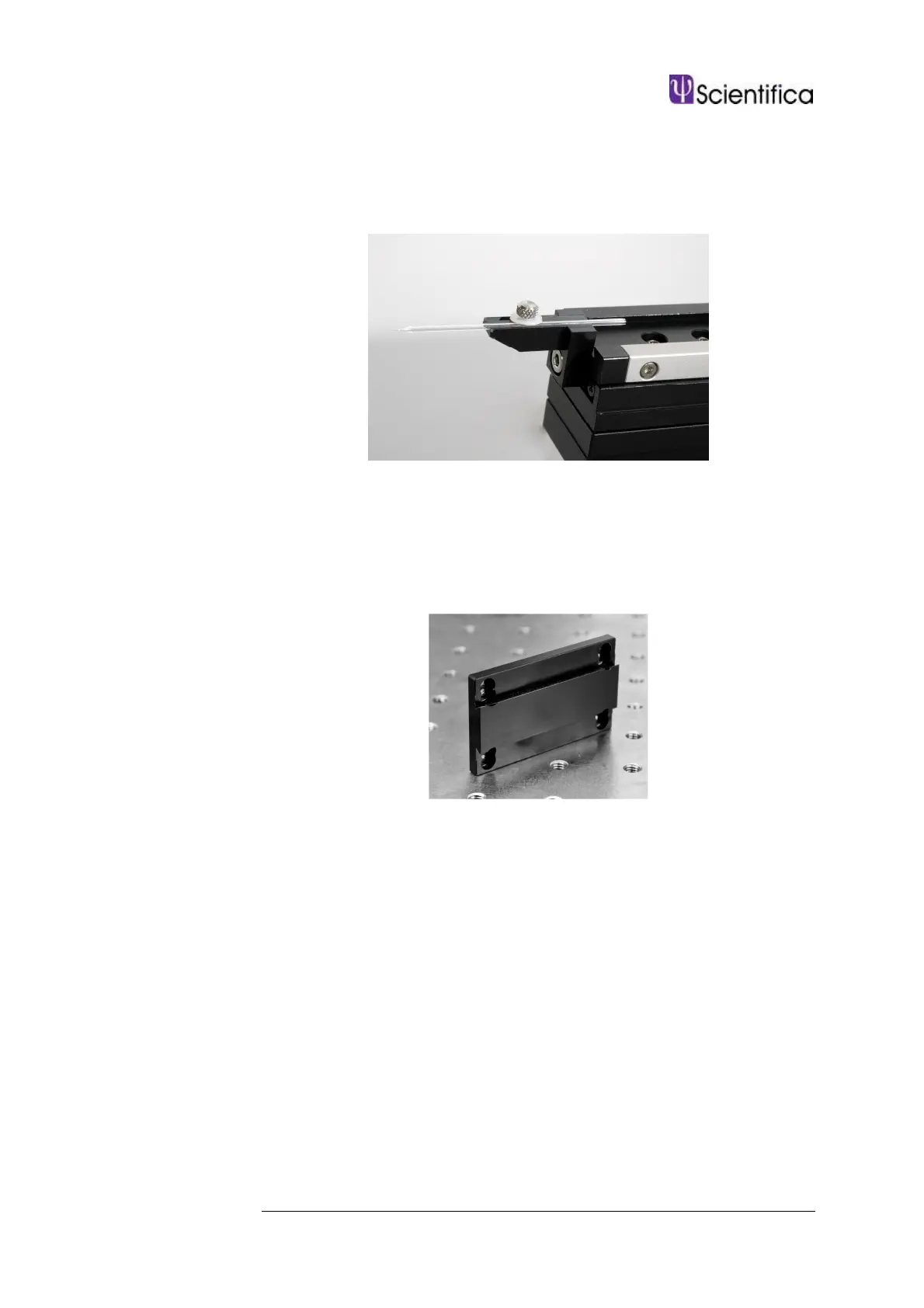

Figure D: Extended probe holder accessory (IVM-530-00)
attached directly to the IVM
3.2.4 Axon Dovetail Adapter Plate
This fits into the IVM’s dovetail to allow mounting of a blue axon
headstage.
Figure E: Axon dovetail adapter plate
The dove tail adapter plate should be inserted into the dove tail clamp of
the IVM and then secured by tightening the four screws on the
aluminium fastening strip.
3.3 Electrical setup of the IVM
To operate as a system the IVM will require connecting to a control rack
and user interface. There is also an optional connection via USB for PC
control using LinLab software.
3.3.1 Control racks
The control rack will be factory configured with either one or two control
cards. One card is required for each device attached, with a maximum
of two being controlled by each control rack. If the IVM is being used
