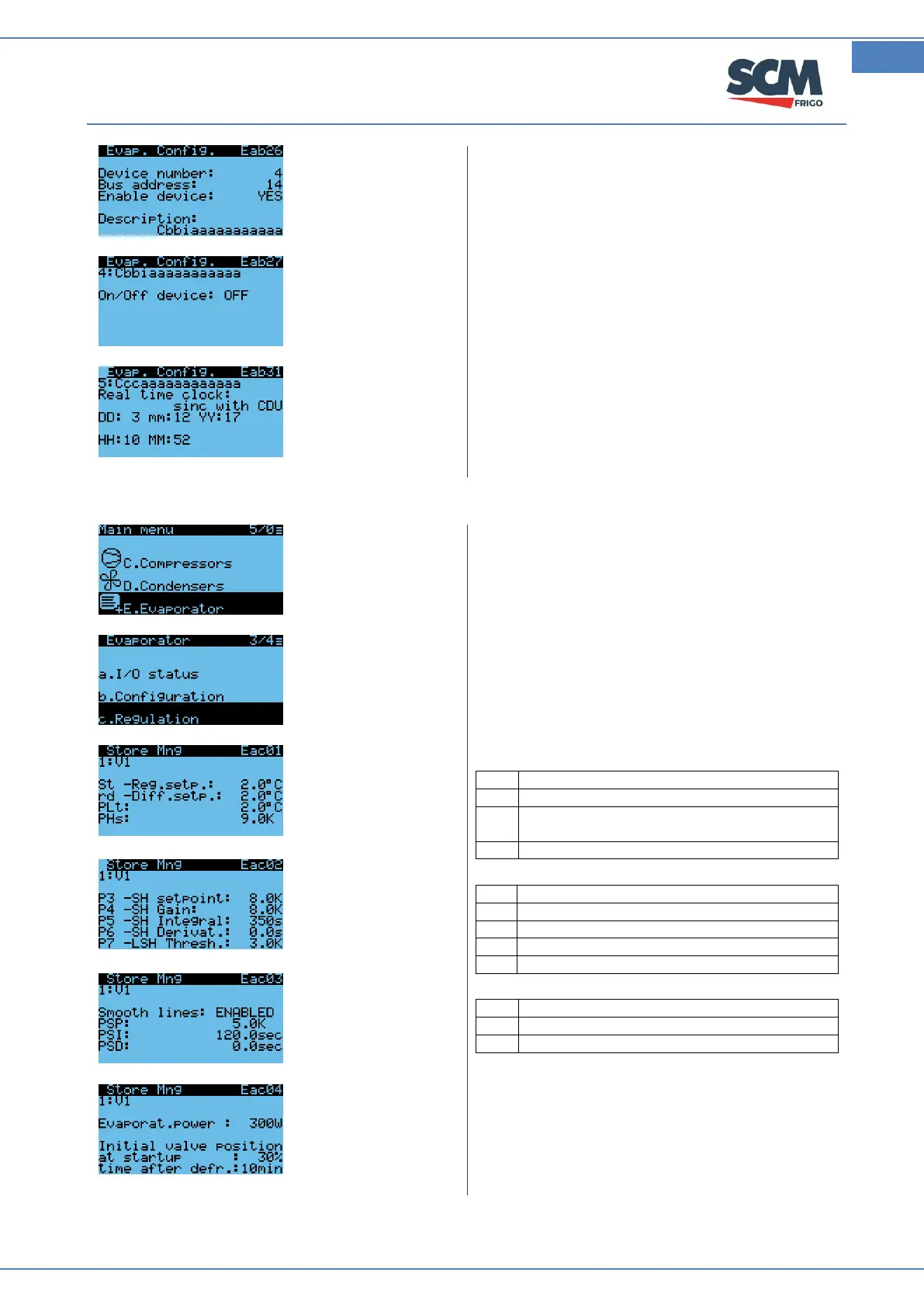

8.5 MPXPRO and ULTRACELLA/EVO CAREL regulation
Select “Evaporator” and press “Enter”.
Select “Regulation” and press “Enter”.
St
Regulation setpoint
Rd
Differential
PLt
Offset, below the setpoint, to switch off the
regulation (Smooth Lines)
PHs
Maximum superheat offset (Smooth Lines)
P3
Superheat setpoint
P4
Control valve: Proportional gain
P5
Control valve: Integral time
P6
Control valve: Derivative time
P7
Low Superheat threshold
PSP
Smooth Line: Proportional gain
PSI
Smooth Line: Integral time
PSD
Smooth Line: Derivative time
