Scott Safety Epic 3 - Epic 3 Rdi Voice Amplifier Lsm Replacement Parts

Page 20 of 21
P/N 595359-01 Rev A - 04/17
DRAFT COPY –
NOT FOR PUBLICATION

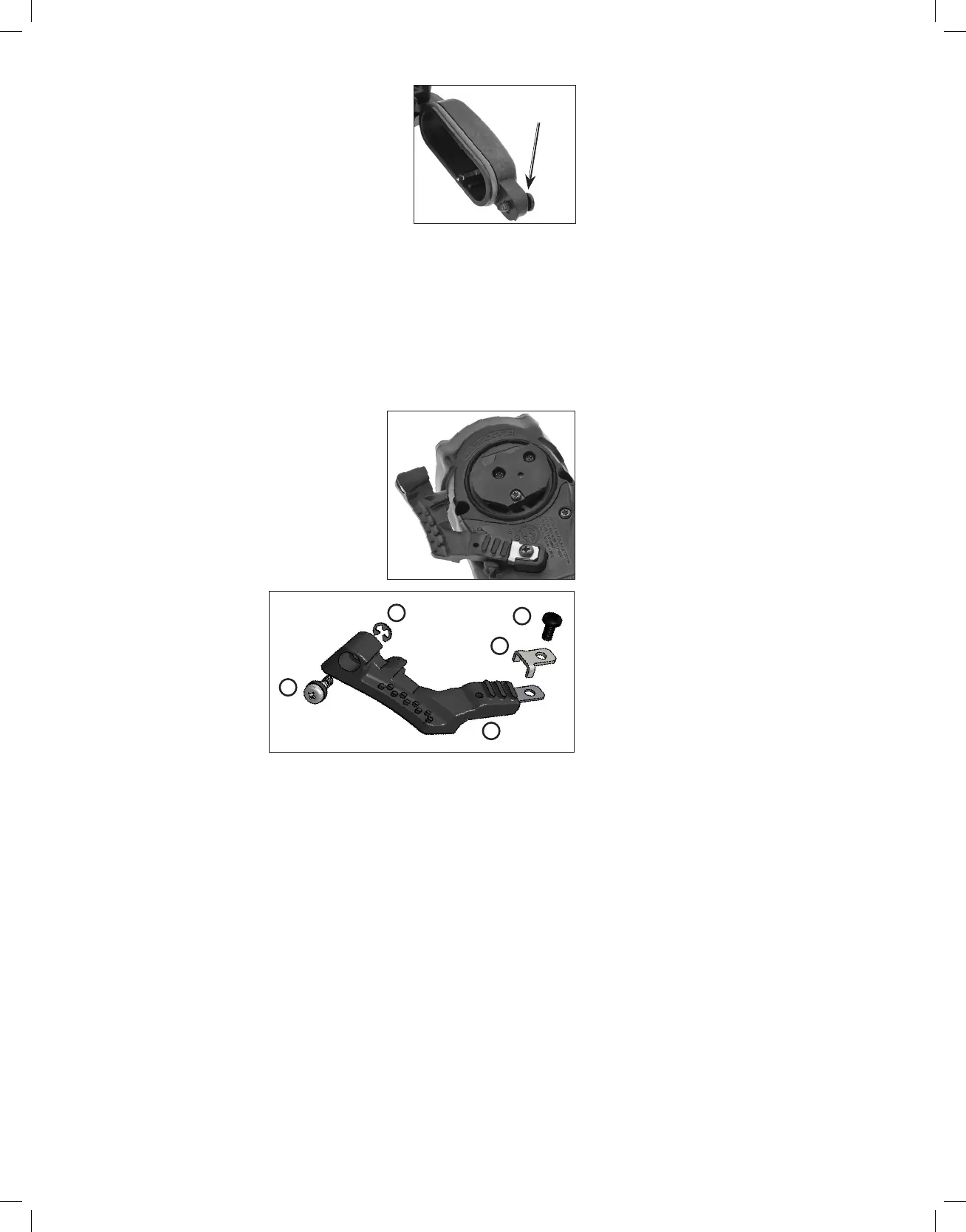

BATTERY COVER RETAINING SCREW
Replace battery door cover retaining screw SCOTT
P/N 31001550.
LOCKING SPRING LEVER ASSEMBLY
The following replacement parts and assemblies: SCOTT P/N 201081-01
A Locking Spring Lever– SCOTT P/N 201135-01
B Locking Spring Lever Stiffener – SCOTT P/N 31001664
C Locking Spring Lever Locking Screw– SCOTT P/N 31002517
D Locking Spring Lever Retaining Ring– SCOTT P/N 31000498
E Locking Spring Lever Retaining Screw– SCOTT P/N 31001110
1. Remove the spring lever locking screw
(C) with #1 Phillips screw driver.
2. Remove the spring lever (A) and the
spring lever stiffener (B) from the RDI
Voice Amplifier.
3. Place the new spring lever and spring
lever stiffener into position on the RDI
Voice Amplifier and secure with new
spring lever locking screw (C).
4. Inspect your work before use. Make
sure the screw is properly installed
and the detent lever
properly engages the
facepiece dock. If
it does not work
properly, set it aside.
Do not use and
contact SCOTT
SAFETY.
EPIC 3 RDI VOICE AMPLIFIER LSM REPLACEMENT PARTS
For the following parts and assemblies:
• Battery Door - SCOTT P/N 31001098
• Battery Door Gasket – SCOTT P/N 31002848
• Belt Clips:
– Alligator Belt Clip - SCOTT P/N 31003082 (standard).
– Clothes Pin Belt Clip – SCOTT P/N 31003083
A
B
C
D
E
RETAINING
SCREW
BATTERY COVER
RETAINING SCREW
