BIKE OWNERS MANUAL
ENGLISH

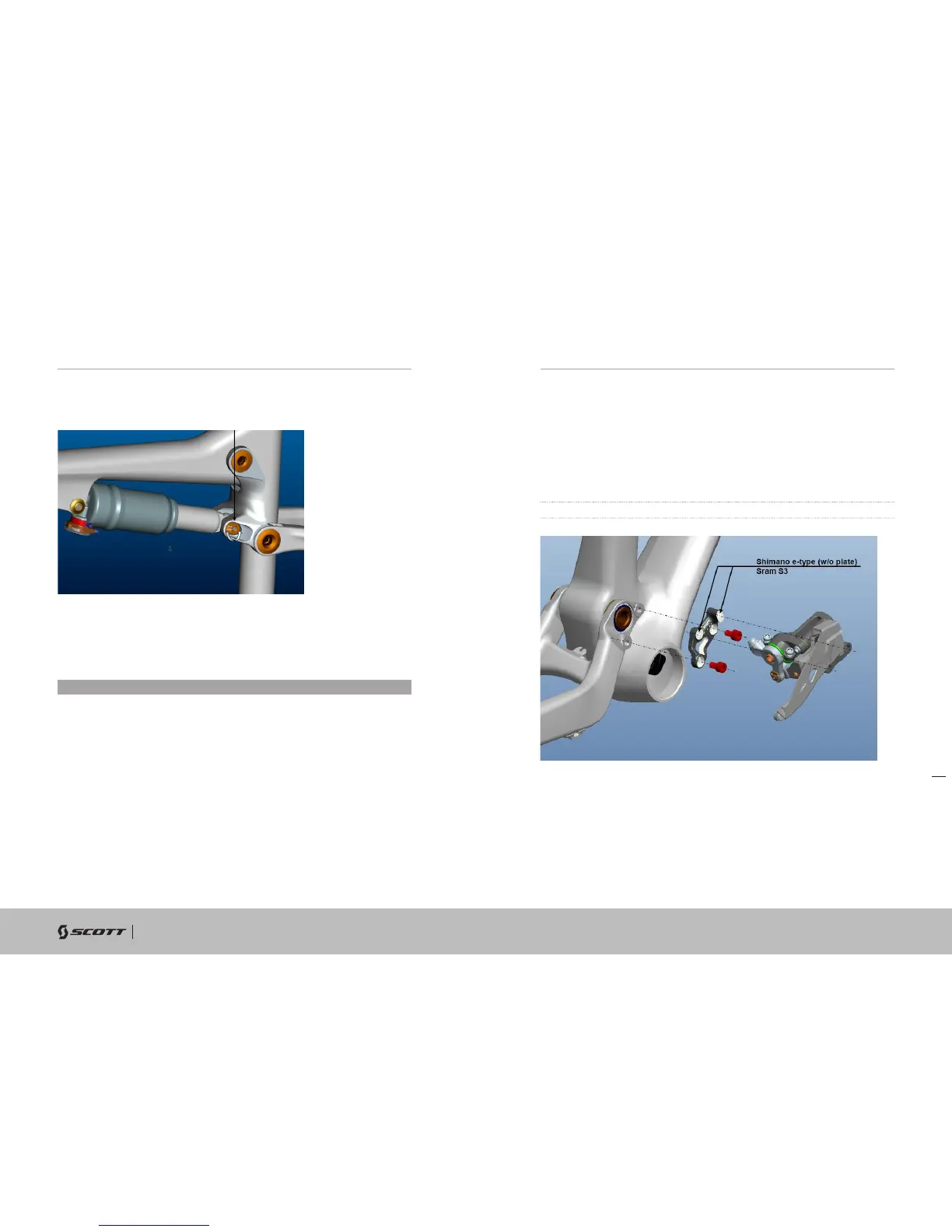

ADJUSTABLE BB HEIGHTT FRONT DERAILLEUR (FD) MOUNTING DETAILS
On Spark bikes equipped with the Nude 2 TC shock you can adjust the BB height
above ground in 2 positions by flipping a geometry chip located on the linkage bar
shock mount.
On all Spark frames you will find a Shimano E-type front derailleur but fixed directly
on the swingarm without the plate that is fixed normally between the bottom bracket
bearing cup and the bottom bracket housing of the front triangle or a SRAM Direct
Mount Type S3 FD.
Please note that you always need to use the adapter plate attached to the bike or
frame set between chainstay and front derailleur.
This adapter can be ordered at the Scott distribution with parts number:
1. low BB for lower center of gravity over ground
2. high BB for bigger clearance between pedals/crankset and obstacles on the ground
IMPORTANT:
It is not possible to use this geometry chip with other shock models than the Nude 2.
The shock might collide with parts of the frame or linkage bar.
Models originally equipped with another shock than the Nude 2 TC will have a chip
with a centered shock bolt hole.
223304 FD-Mount Plate Set Spark 2012
