SPARK
14 scott-sports.com 15
BIKE OWNERS MANUAL
ENGLISH
and secure the cable by fixing the 2mm allen screw with a tightening torque of
0.9Nm/ 8lb/in as shown on the drawing below on the roll.
Cut the cable 5mm behind the roll and secure it with a cable end-cap.
Please refer for this action also to the manual of FOX or DT Swiss attached to the bike.
In case you need to remove the remote cable completely from the forks of FOX
or DT Swiss please follow the instructions of the related fork manuals of the fork
manufacturers or contact a fork service center / your local dealer to do so.
TIP:
To check for accurate cable tension, please try to move the plastic end cap of the cable
housing at the barrel adjuster on the remote lever. There should be “no-play” between
cap and barrel adjuster.
In case of “play” please turn the barrel adjuster clockwise until “no-play”.
Contact (Roll/screw)
!!! roll position !!!
NUDE 2 SHOCK AND TWINLOC REMOTE
CONTROL LEVER
S6
S7
S5
S4
S3
S8
S2
S1 Front eyelet/ Shock Bolt
S5 Positive Chamber Valve
S9 SAG Indicator (o-ring on piston)
S3 Shock Housing
S7 Cable Fixing Screw (hidden behind remote wheel)
S2 Rear eyelet/ Shock Bolt
S6 Remote Control Wheel
S4 Rebound-Adjuster Knob
S8 Shock Piston
L1 Remote Lever
L3 Remote Control Cables
L2 Release Button
L4 Cable Tension Screw Fork Remote
L5 Cable Tension Screw Shock Remote
L3
L1
L4
L2

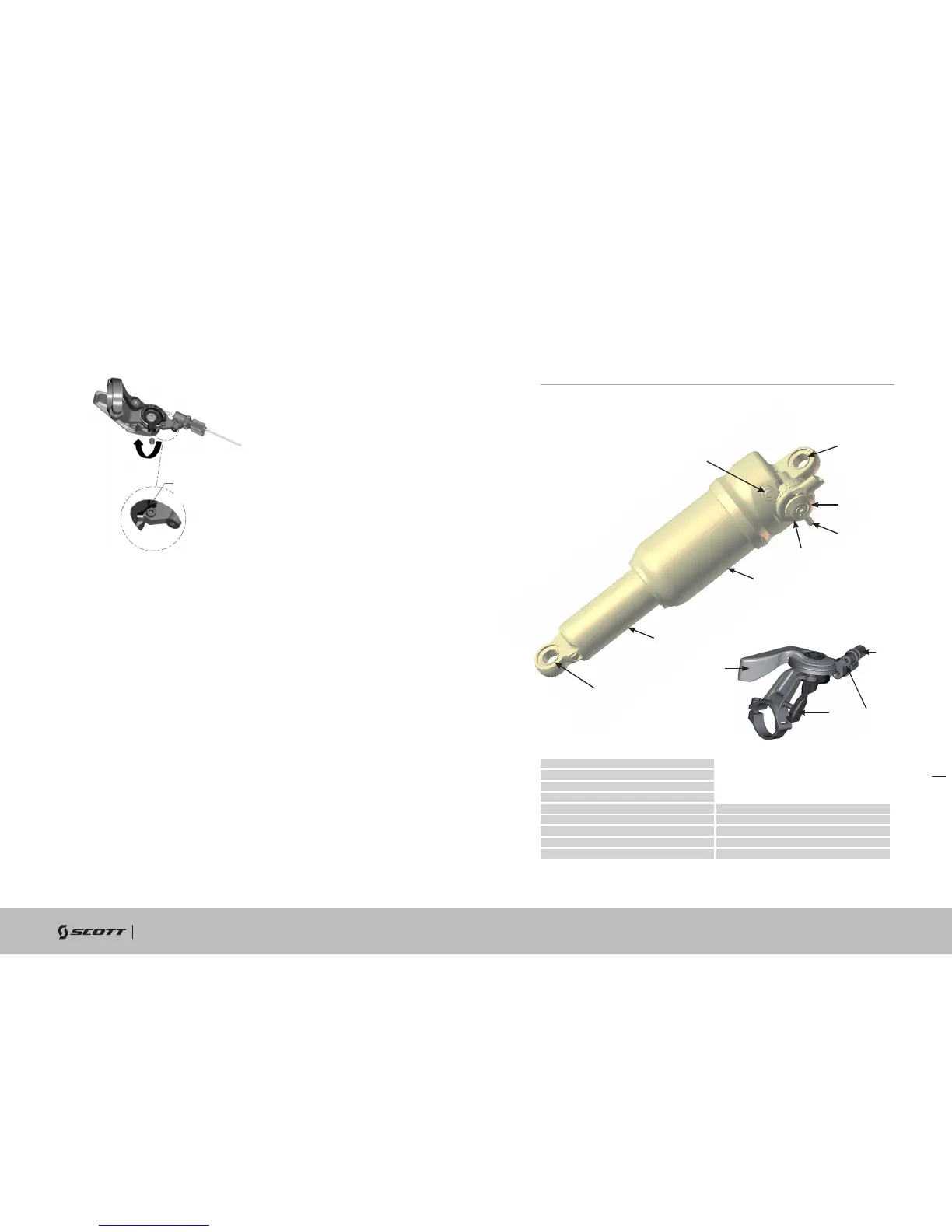

In the drawing of the shock and remote lever, shown below, you will see the parts
indicated with numbers which will be used in the manual for the adjustment and set-up.
S1
