SPARK
16 scott-sports.com 17
BIKE OWNERS MANUAL
ENGLISH

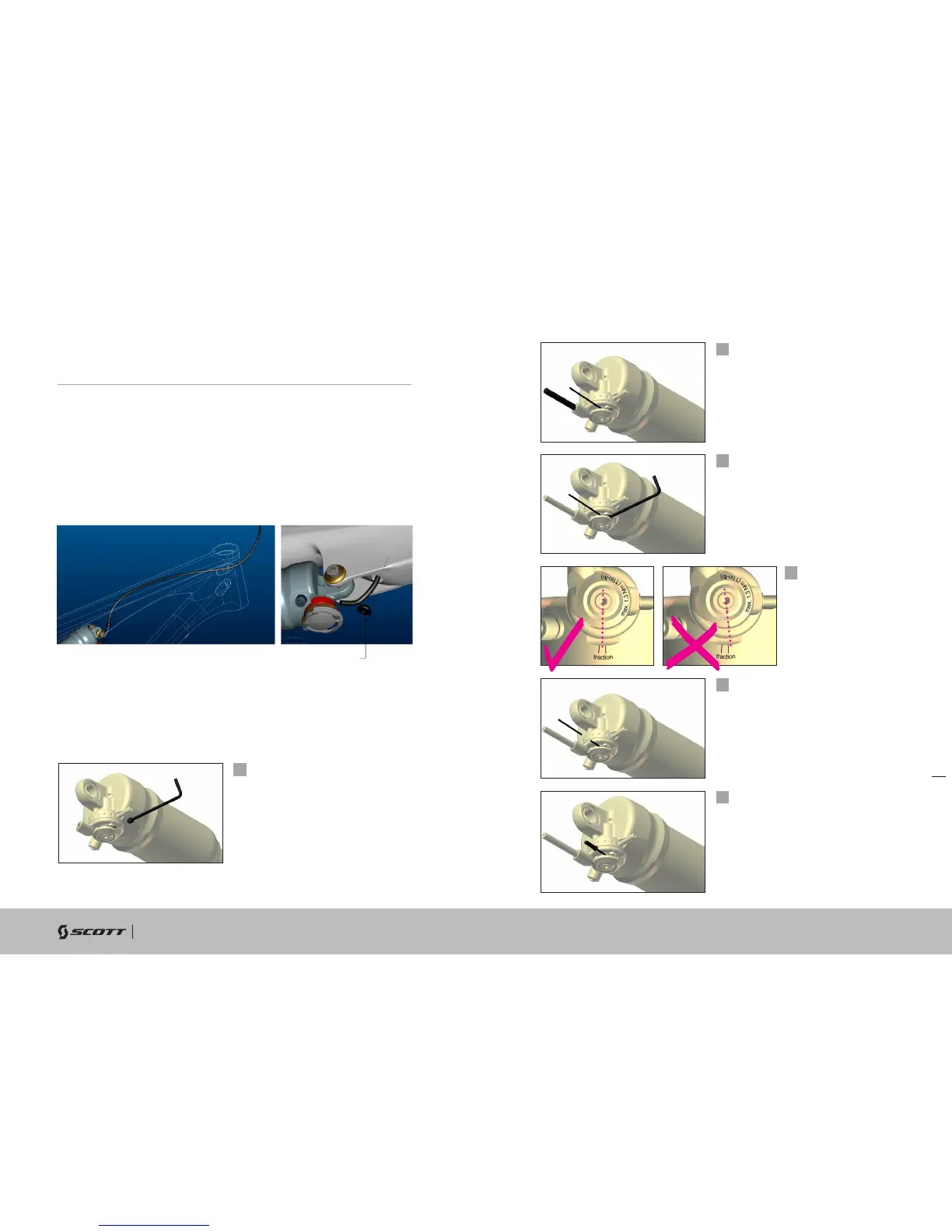

BASIC SET-UP OF THE TWINLOC REMOTE
CONTROL
To ensure perfect function of the Nude 2 TC shock it is very important to follow the
steps shown below exactly.
On Spark Carbon frames you will find an internal cable routing.
Push the inner cable first through the remote lever in the upper cable routing of the
lever and then through the cable housing as shown below inside the toptube.
On alloy frames a regular outside cable routing, the outer cable housing is fixed on
cable mount ports with cable zippers.
Slide the rubber plug
on the outer-cable
Loosen the cable fixing screw (S7) by
turning it counter clockwise with
a 2mm allen key.
1
Insert a new cable via lever hole and
cable housing and push it into the
shock as shown around the remote
wheel (S6)
2
Tighten the cable and fix the
cablefixing screw (S7) by turning it
clockwise with a 2mm allen key and
a max. Tightening torque of 1.6Nm.
3
Cut the cable approx. 20mm away
from the remote wheel and push a
cable end-cap on the cable until it
touches the end of the cable.
Fix it by squeezing it with pliers.
5
Check
4
Push a cable end-cap on the cable
until it touches the end of the cable.
Fix it by squeezing it with pliers.
6
NUDE 2 SHOCK:
