SCOTT SPARK User Manual

SPARK
18 scott-sports.com 19
BIKE OWNERS MANUAL
Riders Weight Air Pressure
KG LBS BAR PSI
45 99 3.9 57
50 110 4.4 64
55 121 4.9 71
60 132 5.4 79
65 143 5.9 86
70 154 6.4 93
75 165 7.0 101
80 176 7. 5 109
85 187 8.0 116
90 198 8.6 124
95 209 9.1 132
100 220 9.7 140
105 231 10.2 148
110 242 10.8 156
Riders Weight Air Pressure
KG LBS BAR PSI
45 99 4.5 65
50 110 5.0 72
55 121 5.5 80
60 132 6.1 89
65 143 6.7 97
70 154 7.3 106
75 165 7.9 114
80 176 8.5 123
85 187 9.1 132
90 198 9.8 142
95 209 10.4 151
100 220 11.1 160
105 231 11.7 170
110 242 12.4 180
ENGLISH
RECOMMENDED TOOLS FOR THE SHOCK SET-UP
For the set-up of the shock we recommend to use a shock pump with a scale up to
20 bars/300 psi with a special air valve connector preventing from air getting away
while removing the pump from the shock valve, this will result in an exact air pressure. .
Please note that air will flow into the hose and indicator when counterchecking the
air pressure, so you have to set up again the recommended pressure after this action.
Make sure to balance at least this air loss when you make a check of the air pressure
of the shock. Pls also note that the indicators of shock pumps have a tolerance of
max. 10%
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2

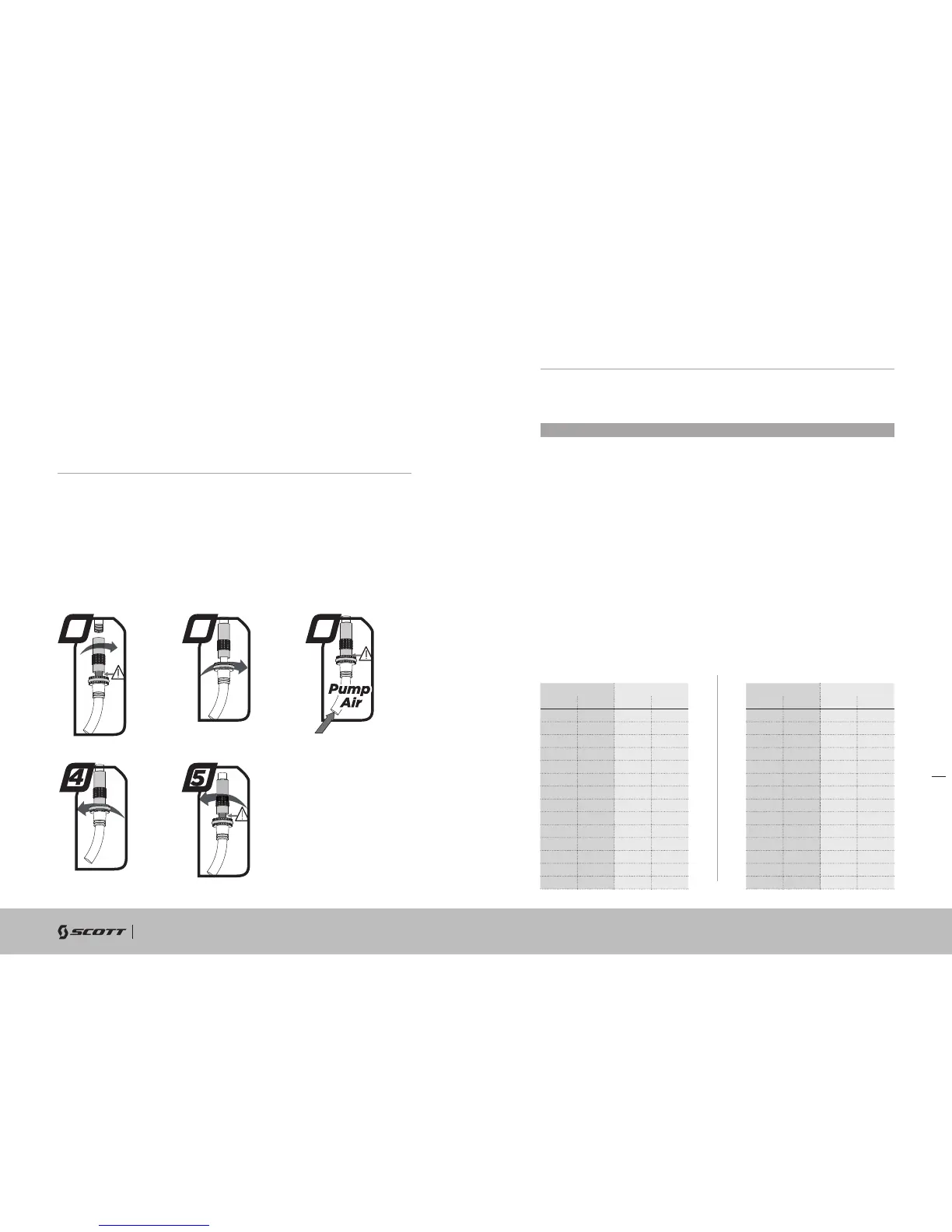

SET-UP SPARK WITH NUDE 2 SHOCK
RECOMMENDED AIR PRESSURE
NUDE2 SPARK 26, 120MM TRAVEL NUDE2 SPARK 29, 100MM TRAVEL
The Set-Up of the Scott Nude TC Shock can be easy done within a few minutes.
IMPORTANT:
For all adjustments of the air spring the remote lever has to be in position “all travel”
To adjust the air pressure of the air chamber of the Scott Nude 2 Shock please refer to
the following instruction:
1. Remove the valve cap of the valve (S5) located on the shock housing (S3).
2. Mount the shock pump with its adaptor on the valve
3. Pls take into account that it takes some air pressure from inside the shock to drive
the indicator on the pump. Make sure to balance at least this air loss when you make
a check of the air pressure of the shock. Pls also note that the indicators of shock
pumps have a tolerance of max. 10%
4. Pump the recommended pressure into the shock. On the shock you will find a decal
showing the recommended air pressure of the positive chamber according to the
rider’s weight.
5. When you reached the needed pressure remove the pump and put the valve cap
on the valve
DT M210 SHOCK:
Please follow the details shown in the manuals of DT Swiss attached to this bike.
Basically it is very similar to the abovementioned assembly of the Nude 2.

SCOTT SPARK Specifications

General

Suspension	Full Suspension
Wheel Size	29"
Rear Travel	120mm
Fork Travel	120mm
Fork	Fox 34 Float
Rear Shock	Fox Nude
Wheels	Syncros Silverton 2.0
Brakes	Shimano
Stem	Syncros
Saddle	Syncros
Seatpost	Syncros Duncan
Frame Material	Carbon
