SPARK
10 scott-sports.com 11
BIKE OWNERS MANUAL
ENGLISH
For the assembly of the remote control of the front fork lock-out 3 different cable
systems are existing.
The different roll for the pull of the fork remote cable can be changed within few
minutes to adapt the lever to your fork model/brand.
You will see on the downside of the roll the indication of the fork brand or the fork
model.
For RockShox forks Scott offers 2 different levers.
1. For regular 2 position fork in lockout and full-mode with a red colored roll with
Scott article number: 216351
2. For forks with DNA mode made exclusively for Scott with a traction mode option
also on the fork with an blue colored roll with a “DNA3” logo on the roll with Scott
article number: 223298
The remote cable assembly is the same on both versions, please refer to the
description shown below after the explanation of the change of the rolls between
different fork brands.
Please kindly note that the cable roll of a DNA3 fork-lever is not interchangeable
with the regular rolls of 2 step forks. You need to use another lever!

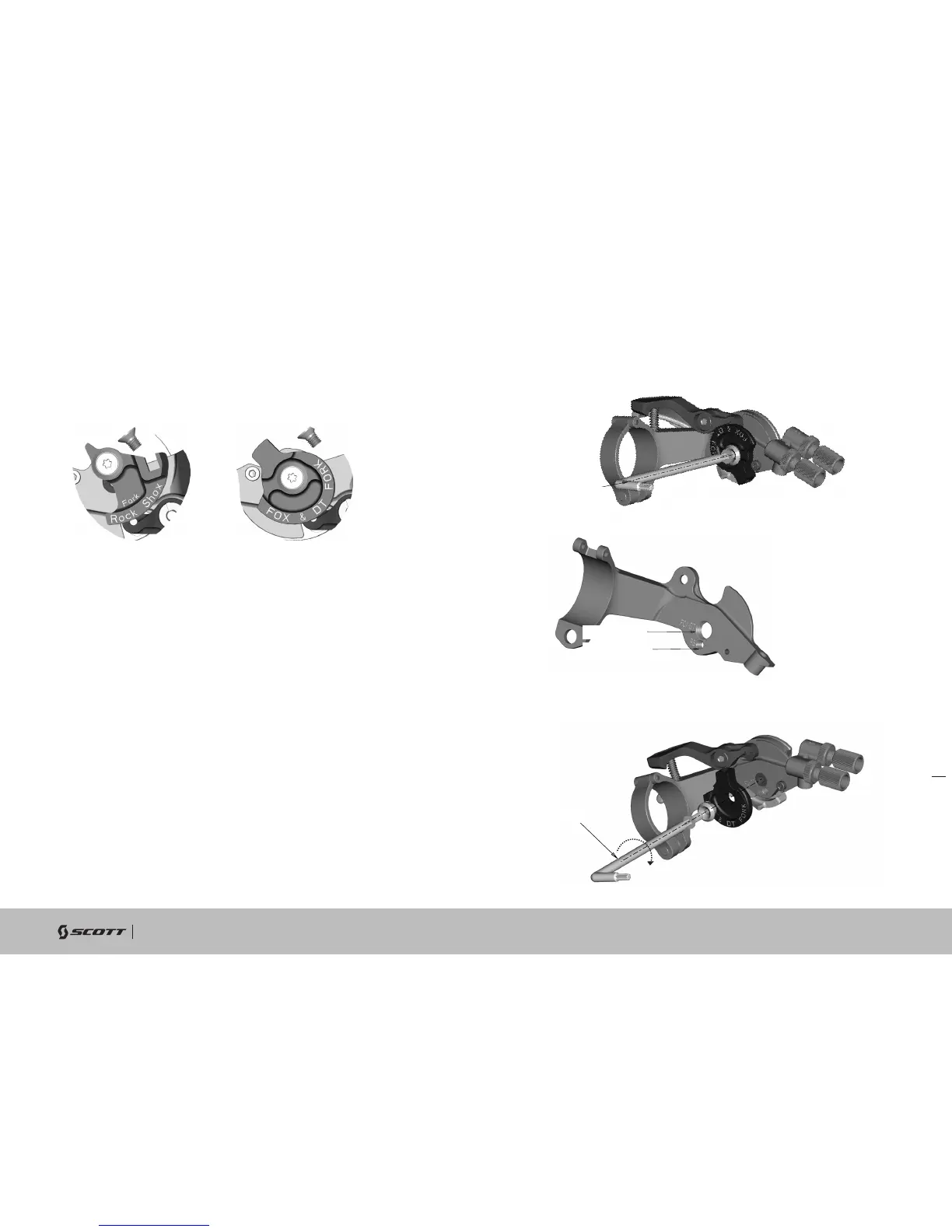

To change the rolls to match another fork brand pls follow the drawings below:
Information and data contained in this document is confidential and proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
ROLL-FORKS
- - A3
Scale Material Projection
Version: 01
1:1
-
Division Pro-E file Drawn by Date Page
BIKE cable-adapter.prt VL 03/06/09 1 / 1
4
3
2
1
F E D C B A
4
3
2
1
F E D C B A
ROCK SHOX ROLL FORK
FOX - DT ROLL FORK
SEE DETAIL A
SCALE 2:1
DETAIL A
SEE DETAIL B
SCALE 2:1
DETAIL B
Information and data contained in this document is confidential and proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
ROLL-FORKS
- - A3
Scale Material Projection
Version: 01
1:1
-
Division Pro-E file Drawn by Date Page
BIKE cable-adapter.prt VL 03/06/09 1 / 1
4
3
2
1
F E D C B A
4
3
2
1
F E D C B A
ROCK SHOX ROLL FORK
FOX - DT ROLL FORK
SEE DETAIL A
SCALE 2:1
DETAIL A
SEE DETAIL B
SCALE 2:1
DETAIL B
Information and data contained in this document is confidential and
proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written
permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
ROLL FORK
UNMOUNTING
*** g *** A4
Scale Material Projection
Version: 00
2:1 ***
Division Pro-E file Drawn by Date Page
BIKE market-anim-1.asm VL 10/06/2009 1 / 1
D C B A
D C B A
3
2
1
3
2
1
ROLL FORK UNMOUNTING
SCALE 2:1
TORX : T10
Information and data contained in this document is confidential and
proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written
permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
ROLL FORK
MOUNTING
*** g *** A4
Scale Material Projection
Version: 00
3:2 ***
Division Pro-E file Drawn by Date Page
BIKE market-anim-1.asm VL 10/06/2009 1 / 1
D C B A
D C B A
3
2
1
3
2
1
ROLL FORK MOUNTING
SCALE 3:2
TORX : T10
Information and data contained in this document is confidential and
proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written
permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
PLATE
*** g *** A4
Scale Material Projection
Version: 00
2:1 ***
Division Pro-E file Drawn by Date Page
BIKE VL 10/06/2009 1 / 1
D C B A
D C B A
3
2
1
3
2
1
SCALE 3:1
FOX-DT ROLL FORK
FIXATION HOLE
ROCK SHOX ROLL FORK
FIXATION HOLE
Fox-DT Roll fork
fixation hole
Rock Shox Roll fork
fixation hole
ROLL FORK MOUNTING
ROLL FORK UNMOUNTING
