ST2134 Operation and Installation Manual
18
Control Groups
To each of the 4 blinds connected to a ST2134 it is possible to assign different control groups. In
general the logic of group assignment starts from blinds side view:
For each blind (=output channel of ST2134) it is necessary to assign all control groups (graphical
control in the ScreenTronic
®
app or local control switch) on which the blind should react.
A control group is defined by its control group ID. In the settings of each blind control in the
ScreenTronic
®
app the ID can be changed before using it. The local control switches of each ST2134
has a predefined and unique control group ID. See chapter Local Control Switches and Remote Input
for details.
Control Group add
To add a control group or local control switch to a blind:

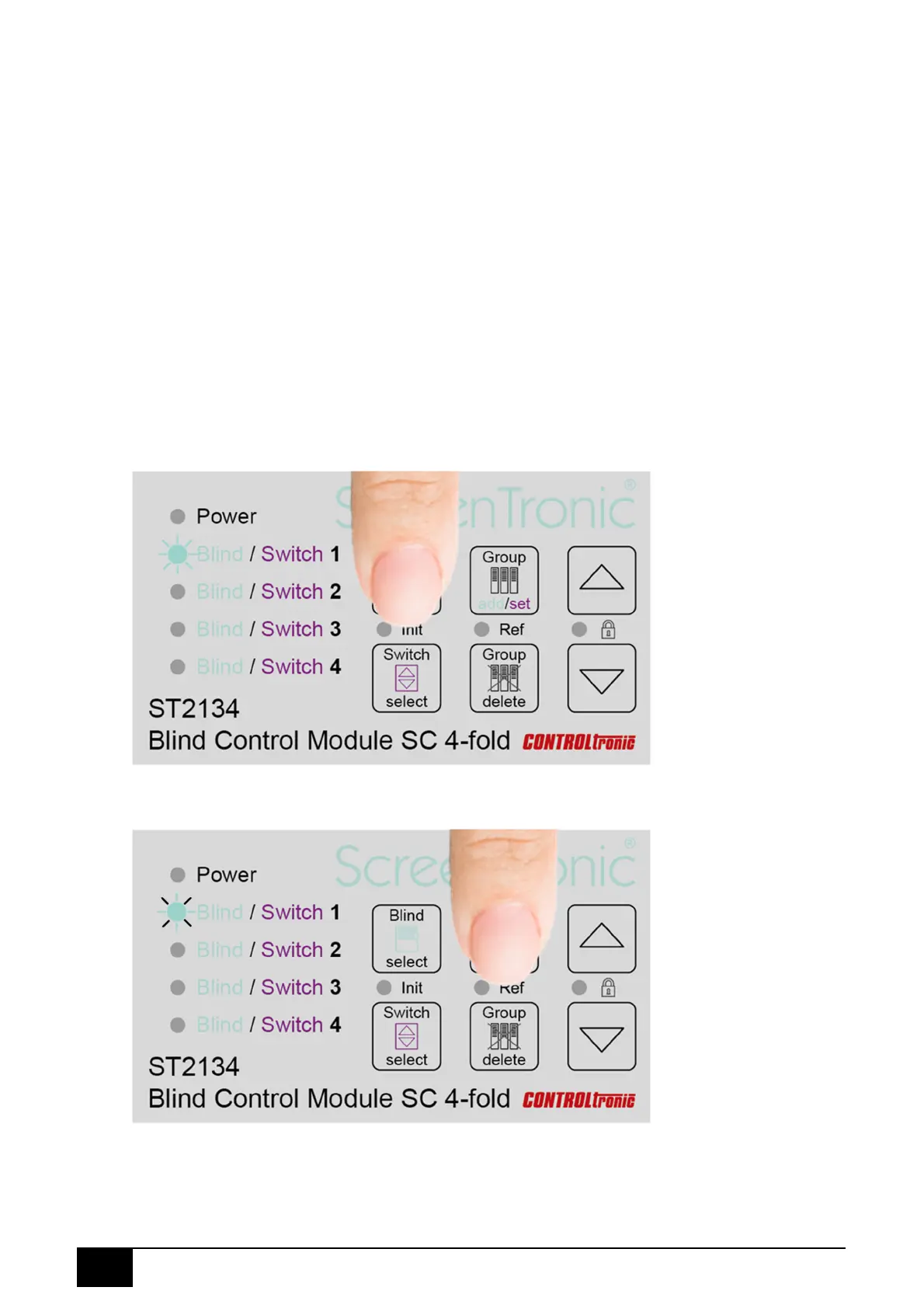

1) Select blind (1, 2, 3, 4 or ALL) with Blind select button
(cyan LED indicates selected blind / another touch selects next blind)
2) Press Group add/set button
(cyan flashing LED indicates activation of group learning mode for the selected blind)
