ST2134 Operation and Installation Manual
13
Initialization (Init)
The initialization (Init) of all connected blinds is performed always after power on of the ST2134
device. The sequence can be additional started at any time as follows.
To start the Init sequence manually:

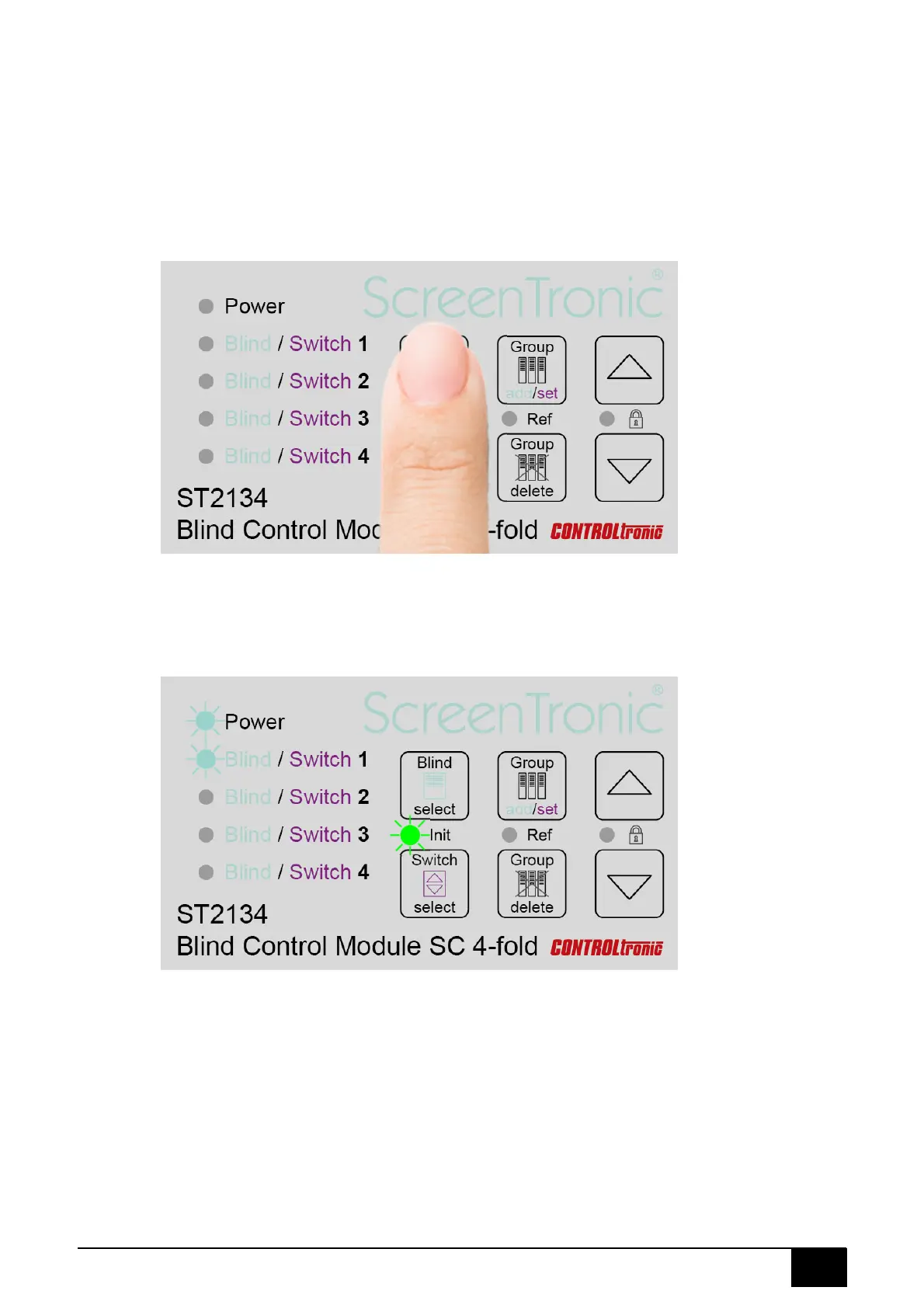

1) Press Blind select and Switch select button exactly at same time for min. 1s
(green Init LED (between the 2 buttons) indicates the processing of the Init sequence)
Make sure to press the 2 buttons exactly at same time to avoid starting the separate functions of the 2
individual buttons.
During initialization (Init) the ST2134 is addressing the blinds with address 1 to 4 corresponding to the
output channel number, is reading the blind parameter for correct control setting (e.g. blind type, tilt
time, …) and is activating the setting of the parameter 3-Wire-Only in the blind configuration.
New connected blinds
After connecting a new blind (e.g. changing a blind/channel or using the ST2134 with new blinds) an
initialization (Init) must be performed - otherwise the new connected blinds won’t work.
