Open 2.0
EN

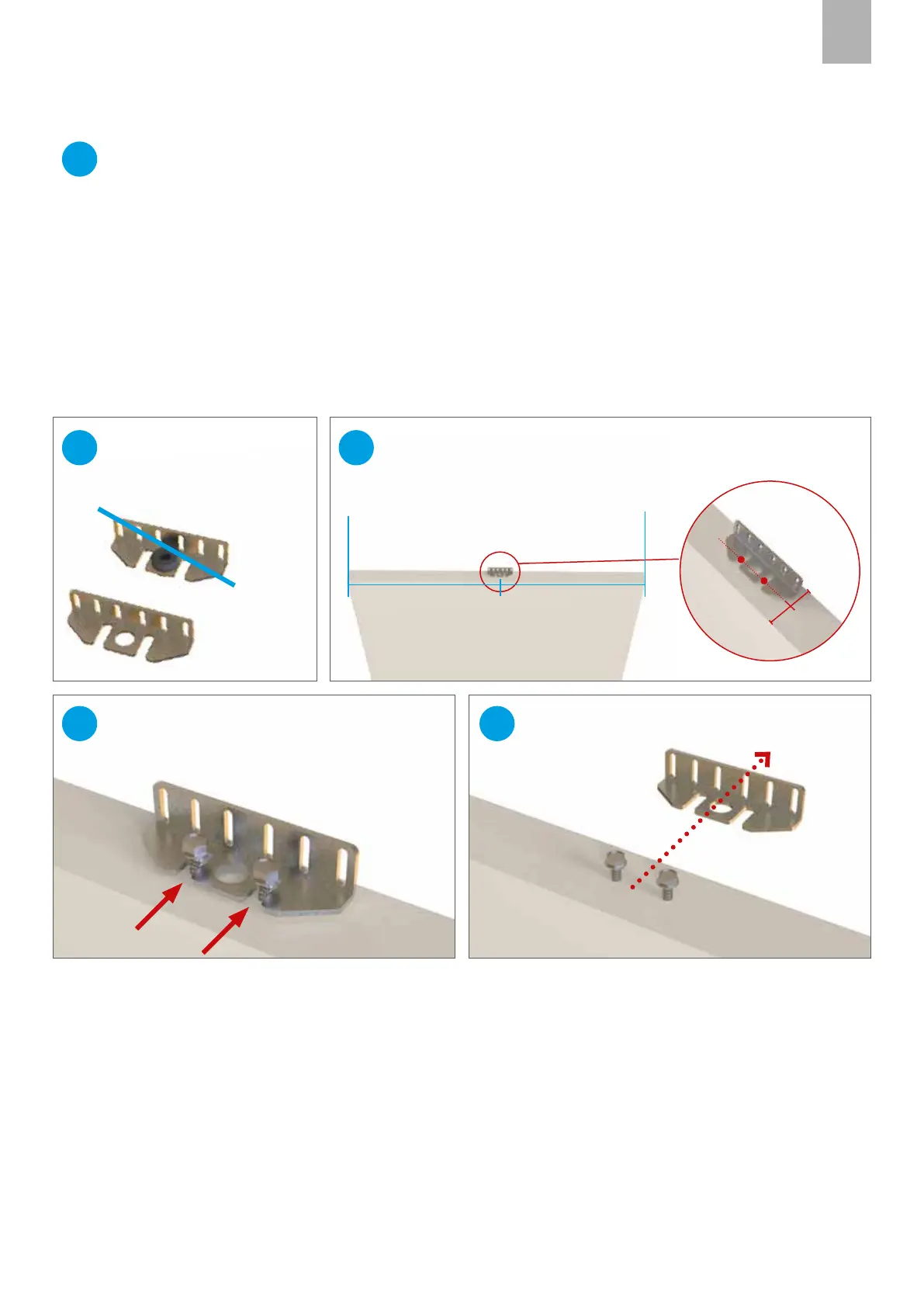

MOUNTING THE JUNCTION BRACKET
FOR BASE FRAME AND DOORTECH
Screw up the 2 hex head screws without fully
tightening.
Remove the bracket.
C D
Mark the position of the 2 holes in the centre of the door, using the
bracket as a reference. Drill a hole in the door with a suitable drill bit.
B
Closing
upright
Opening
upright
=
=
For Essential PRO kits
Prepare the belt joint bracket
according to the SCRIGNO
frame model.
A
16
For BASE and
DOORTECH kits
(remove rubber
bumper)
