Open 2.0
EN
For Essential PRO kits
Prepare the belt joint bracket
according to the SCRIGNO
frame model.
A
MOUNTING THE JUNCTION BRACKET
FOR ESSENTIAL PRO FRAME
For BASE and
DOORTECH kits
(remove rubber
bumper)

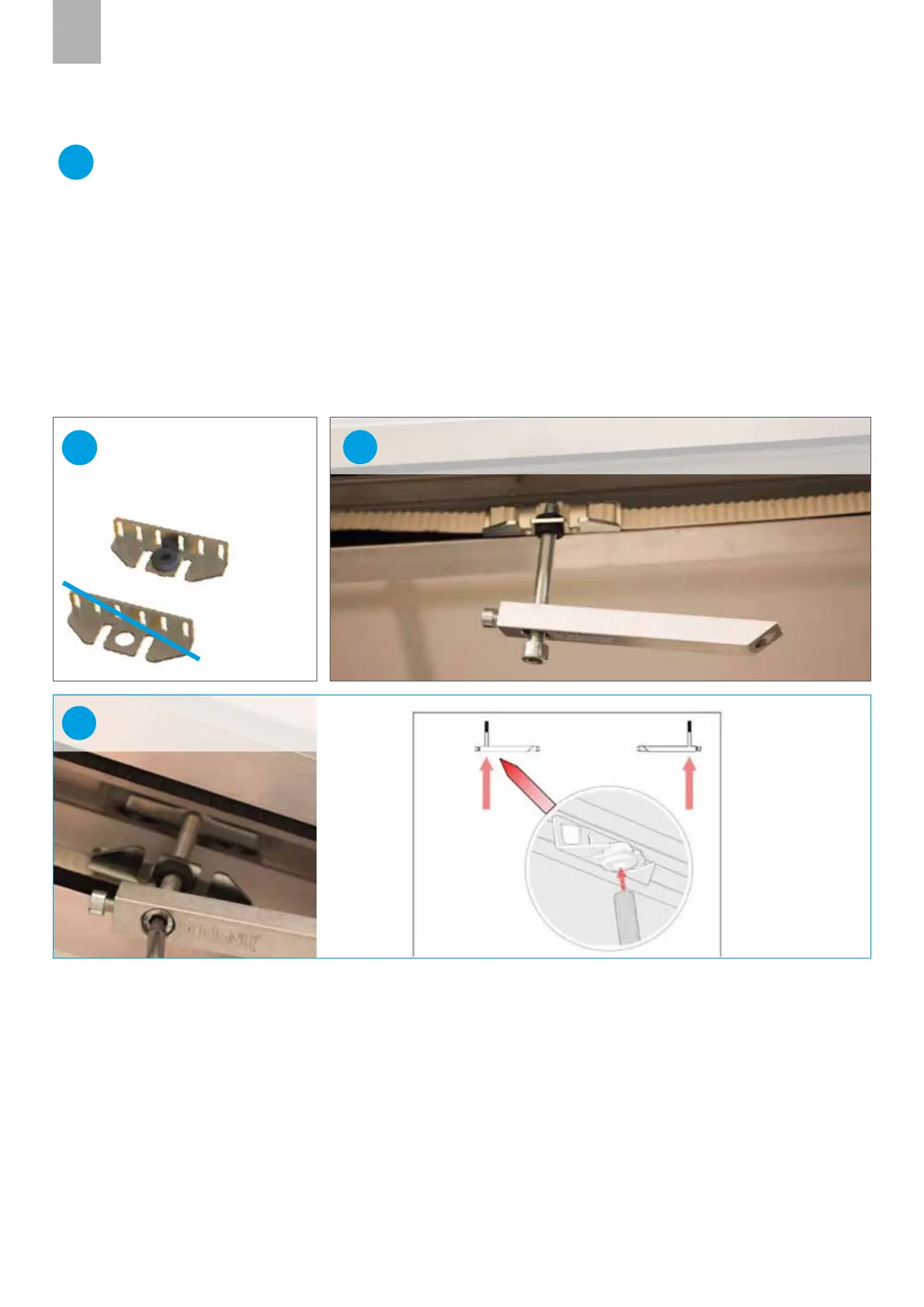

Fit the screw into the door bracket and into the junction bracket.
Tighten the screw on the front
hanger (closing upright!).
16a
B
C
Closing
upright
Opening
upright
