R1387 DCM2461/SCRIGNO - OPEN2.0 | pagina 58
Open 2.0
EN

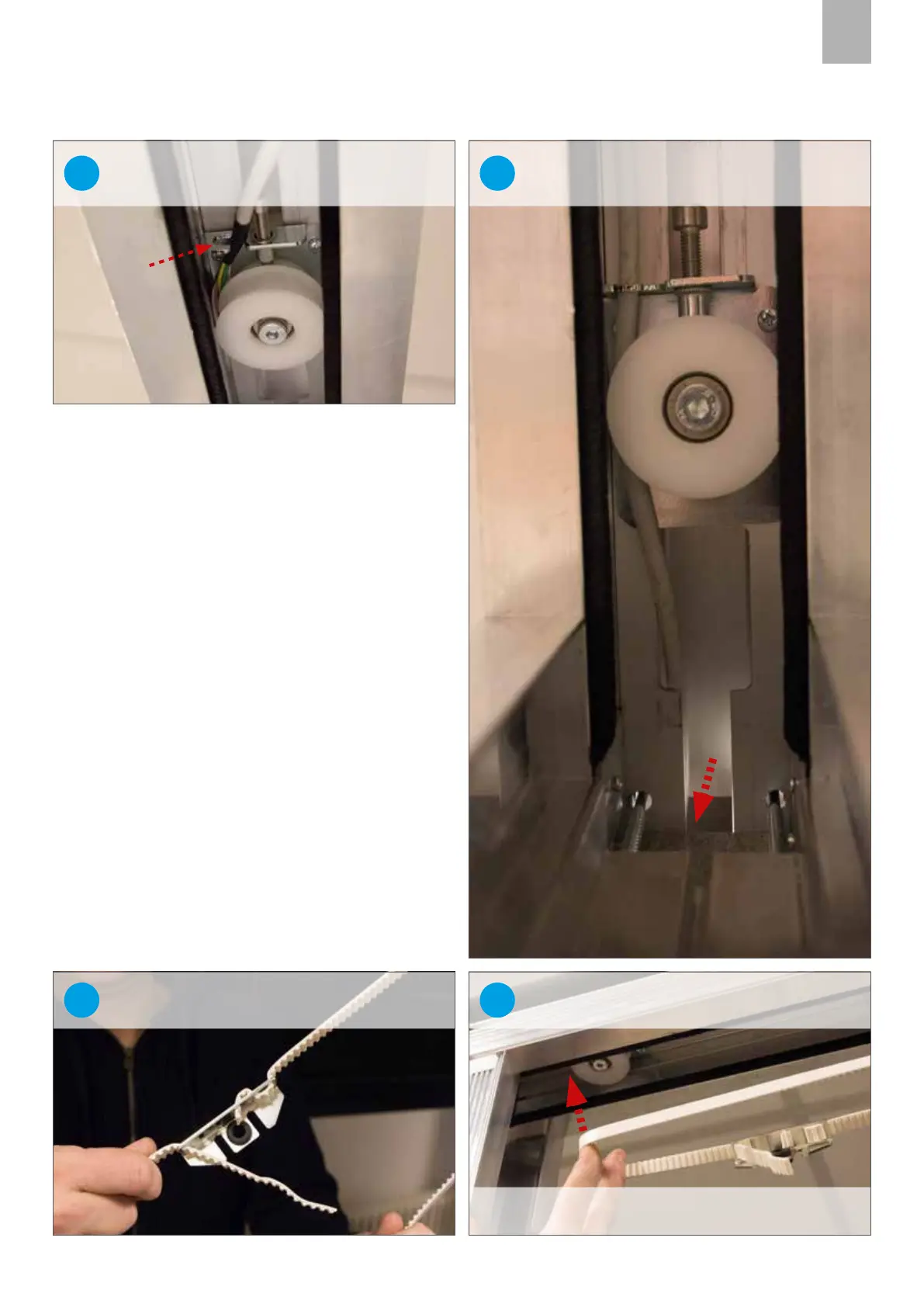

Fit the cable-motor into the slot of the driven pulley.
Fit the belt in the junction bracket, as shown in the
picture.
Pass the belt behind the driven pulley.
IMPORTANT!! The junction bracket must be on the
opposite side of the rail, with respect to the cable transit.
Pass the motor cable completely through, fitting it
into corrugated duct which leads to the junction box.
17
19 20
18
