Document# SCT-UM026FVC Page 10 of 46 Confidential

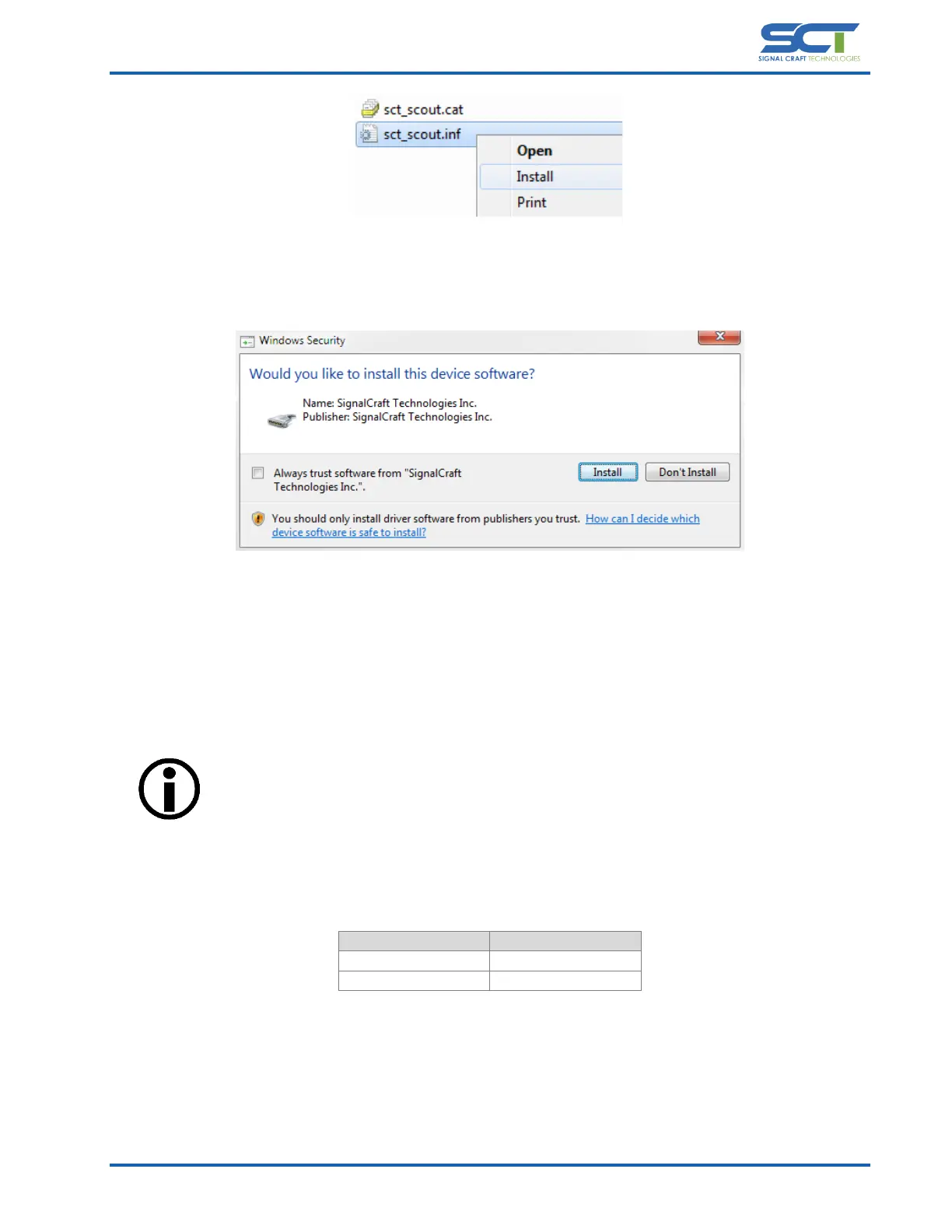

Figure 2.3.1-1 – Scout Driver Installation
A Windows Security prompt, shown in Figure 2.3.1-2, will display showing information about the device driver. Confirm
that the Publisher is indicated as SignalCraft Technologies Inc. Select Install to complete the driver installation process.
Figure 2.3.1-2 – Windows Security Prompt
Once the installation is complete, connect the Scout device using the USB port. In Windows Device Manager, Scout will
be identified under the Ports list as SC4415 Scout.
2.4 Ethernet
The Ethernet interface is non-functional at this time. A future firmware version may enable the Ethernet interface as an
alternative programming interface.
Do not make any connections to the Ethernet connector at this time as this may cause undesirable
behavior.
2.5 IO Interface
Scout has been designed with flexibility in mind. For this reason, the SC4415 utilizes a 30-pin 0.100” male header for
the IO Interface. Table 2.5-1 provides the details about the IO interface connector.
Table 2.5-1 – IO Connector Details
This connector provides a high degree of compatibility with various connector mates such as board to board, female
sockets, and individual test leads. Using the information in Table 2.5-1, the mechanical details of the IO Interface
connector can be determined which will assist in choosing a mating connector for a custom application. Additional
connector accessories are available from SignalCraft Technologies for the SC4415.
