SCT Scout SC4415 User Manual

Document# SCT-UM026FVC Page 8 of 46 Confidential
2. Hardware
This section describes the SC4415 hardware features and specifications in detail.
2.1 Overview
The SC4415 is contained within a compact enclosure with all required interfaces exposed at either end. The product
label located on the top of the enclosure provides model information along with a pin map for quick reference. Figure
2.1-1 provides an illustration of the enclosure. Dimensions and other specifications can be found in Section 2.7.

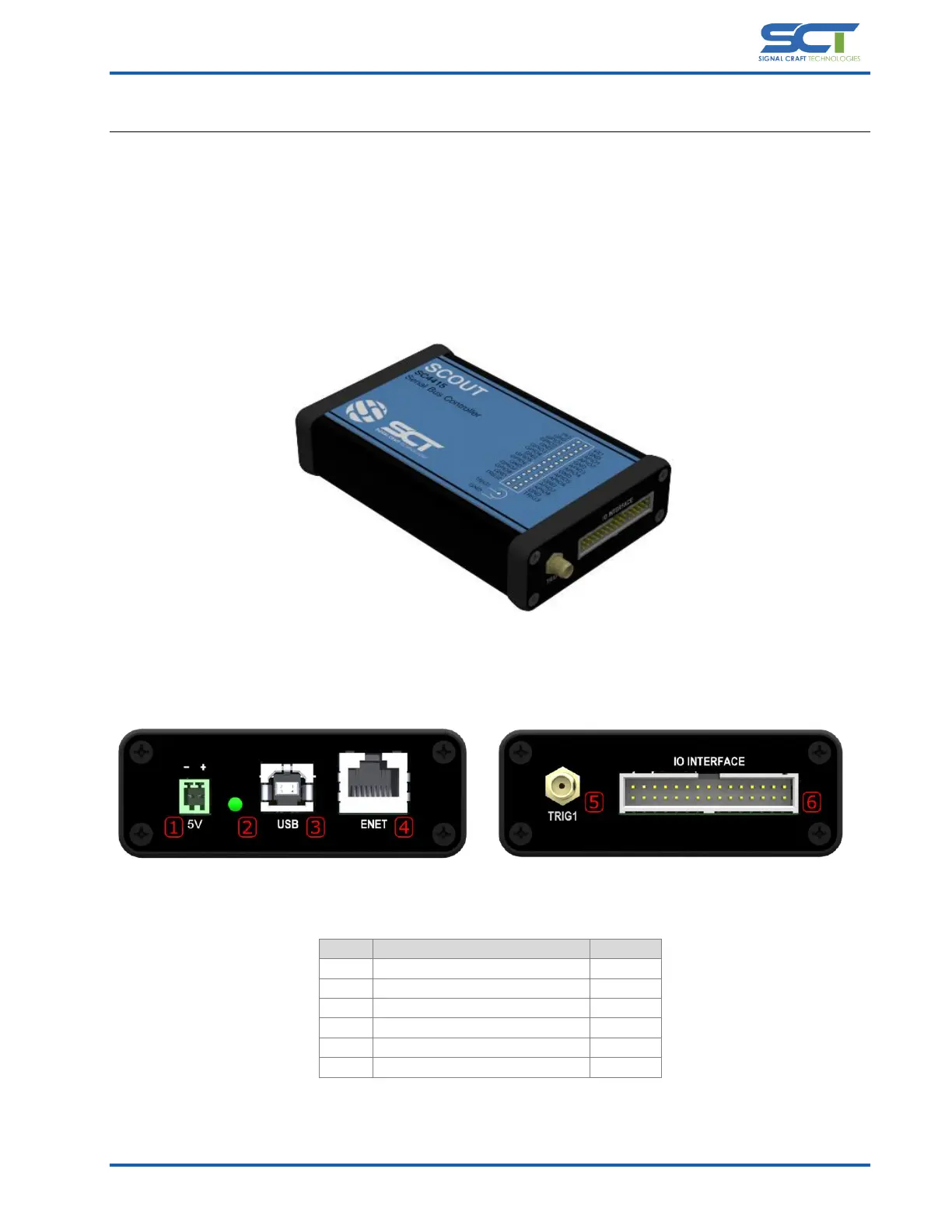

Figure 2.1-1 – SC4415 Scout
The exposed interfaces on the ends of the enclosure are shown below in Figure 2.1-2 and 2.1-3.
Figure 2.1-2 – Power and Data Connections
Figure 2.1-3 – Device Interface
Detail about each interface can be found by referencing the item number, shown in red, against Table 2.1-1.
Item
Description
Section
1
External 5VDC Input (optional)
2.2
2
Status LED
2.6
3
USB Device Port
2.3
4
Ethernet Connector
2.4
5
SMA Trigger Connector
2.5
6
IO Interface Connector
2.5
Table 2.1-1 – Device Interface Details

SCT Scout SC4415 Specifications

General

Brand	SCT
Model	Scout SC4415
Category	Controller
Language	English
