SEA JOINT - Mechanical Installation; Features and Specifications

4

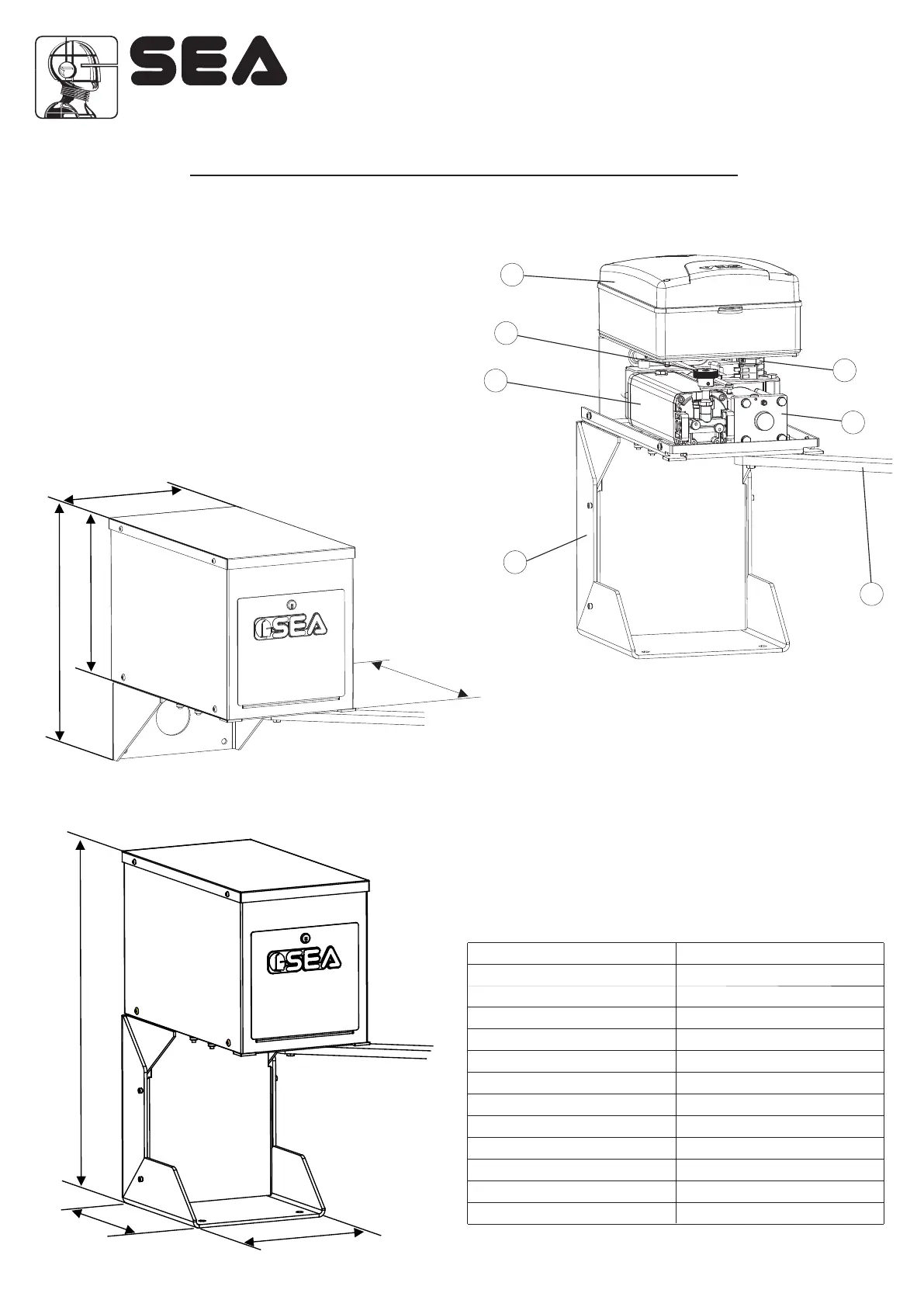

1. Features and specifications
MECHANICAL INSTALLATION
1. lectronic control unitE
2. Hydraulic unit
3. Ground support (OPTIONAL)
4. Manual release
5. Articulated arm
6. Jack
7. Limit switch
Jointed swing operator pad mounted for residential/commercial use.
TECHNICAL FEATURES
Gate Speed: 8 - 12 seconds per 90° cycle
Maximum Gate Length: 6 mm
Maximum Gate Weight: 455 kg
Maximum Cycles: 250 cycles per day with Sea's Plug-
In Transformer. (Gate size 6 m x 2,4 m)
AC Power Supply Wire: 14 gauge or greater landscape
lighting cable rated for direct burial and
300 watts at maximum length of 305 m
305
255
483
660
305
280
Fig.1
Fig.2
Fig.3
JOINT
1
2
5
7
6
3
4
Dimensions (mm)
457
SPECIFICATIONS
Power supply
Motor power
Operation temperature
Max. beam length
Protection class
Opening time 90° (sec)
Cycles/hour
Max leaf weight
Max opening angle (degrees)
Anti-crushing protection
Limit switch
Slow-down
230V
280 W
-20°C to +55°C*
6 m
Ip44
8 - 12 sec
40
455 kg
100°
By pass valve
Mechanical/electronic
Electronic
