Repeat the procedure for orther
elevator.
! 1) Position the rudder control horn on the
left - right side of the rudder.
! 2) Locate the two nylon control horns, two
nylon control horn backplates and three
machine screws.
3x30mm.
2x30mm.

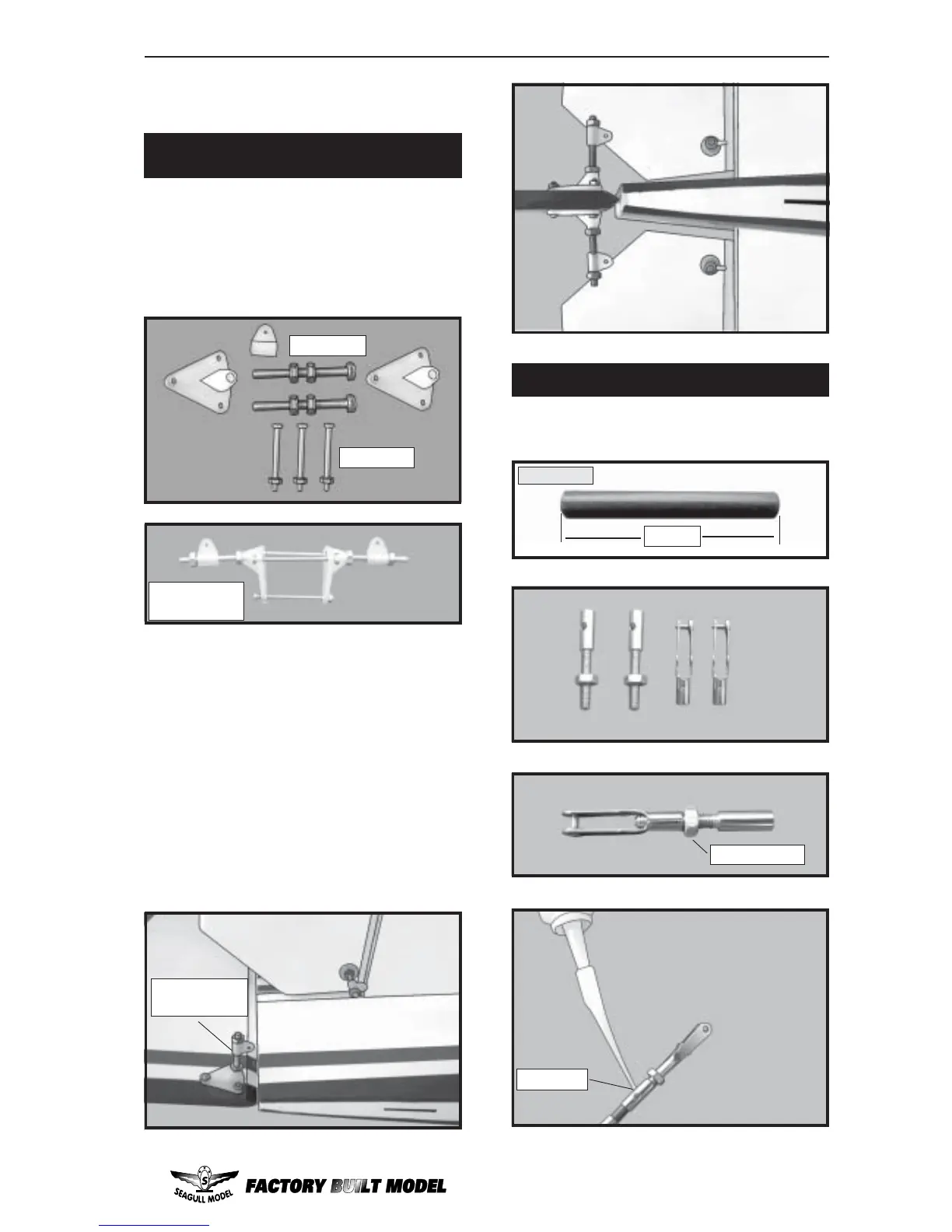

RUDDER CONTROL HORN
INSTALLATION.
Rudder
control horn.
!
5) Mount the control horns by inserting the
bolts through the control horn bases and
elevator halves, then into the mounting
backplates. Do not overtighten the nuts or the
backplates may crush the wood.
! 3) Position the rudder horn on the both
side of rudder. The clevis attach- ment holes
should be positioned over the hinge line.
! 4) Using a 1.5mm drill bit and the control
horns as a guide, drill the mounting holes
through the rudder halves.
Rudder
control horn.
AILERON PUSHROD INSTALLATION.
Pushrod.
55mm.
C/A glue.
M3 lock nut.
Aileron pushrods assembly follow pictures
below.
