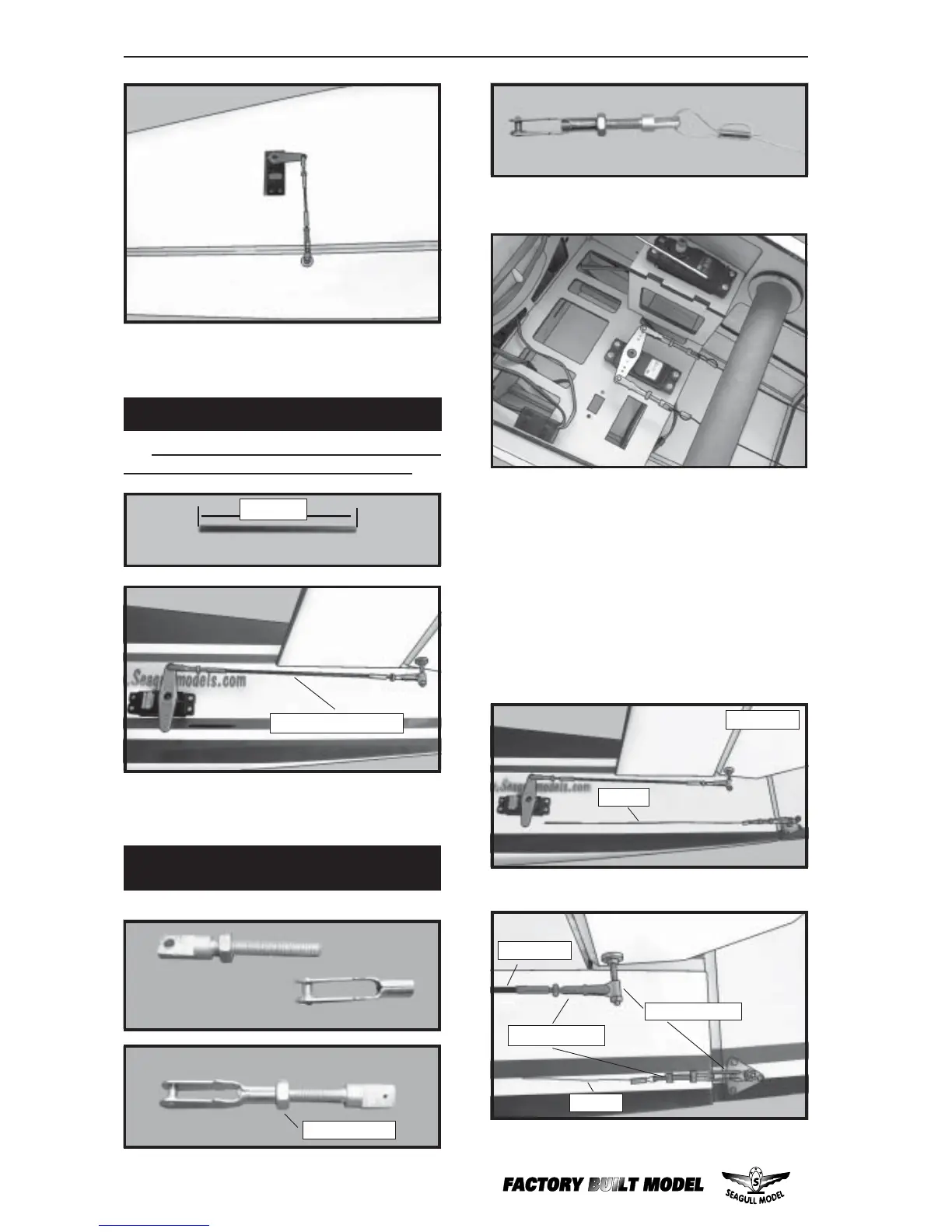

Seagull Models Extra 260 - Elevator Pushrod Installation; Rudder Pull Pull Cable Installation

EXTRA 260. Instruction Manual.
14
! 2) With the radio on, check the operation
of the rudder. Adjust the cables so when the
rudder servo is centered, the rudder is
centered as well. There will be tension on the
cables. Adjustments can be made at the rudder
control horn and at the servo arm. Once
Left side.
Cable.
adjustments are made, secure the servo arm
to the rudder arm servo using the screw that
came with the servo
Pushrod.
Cable.
Metal clevis.
Control horn.
Elevator pushrod.
Repeat the procedure for orther
elevator.
RUDDER PULL PULL CABLE
INSTALLATION.
M3 lock nut.
See pictures below:
! 1) Insert servo arm into servo.
150mm.
ELEVATOR PUSHROD INSTALLATION.
Repeat the procedure for elevator
pushrod as same as aileron pushrod.
Repeat the procedure for orther
aileron.
