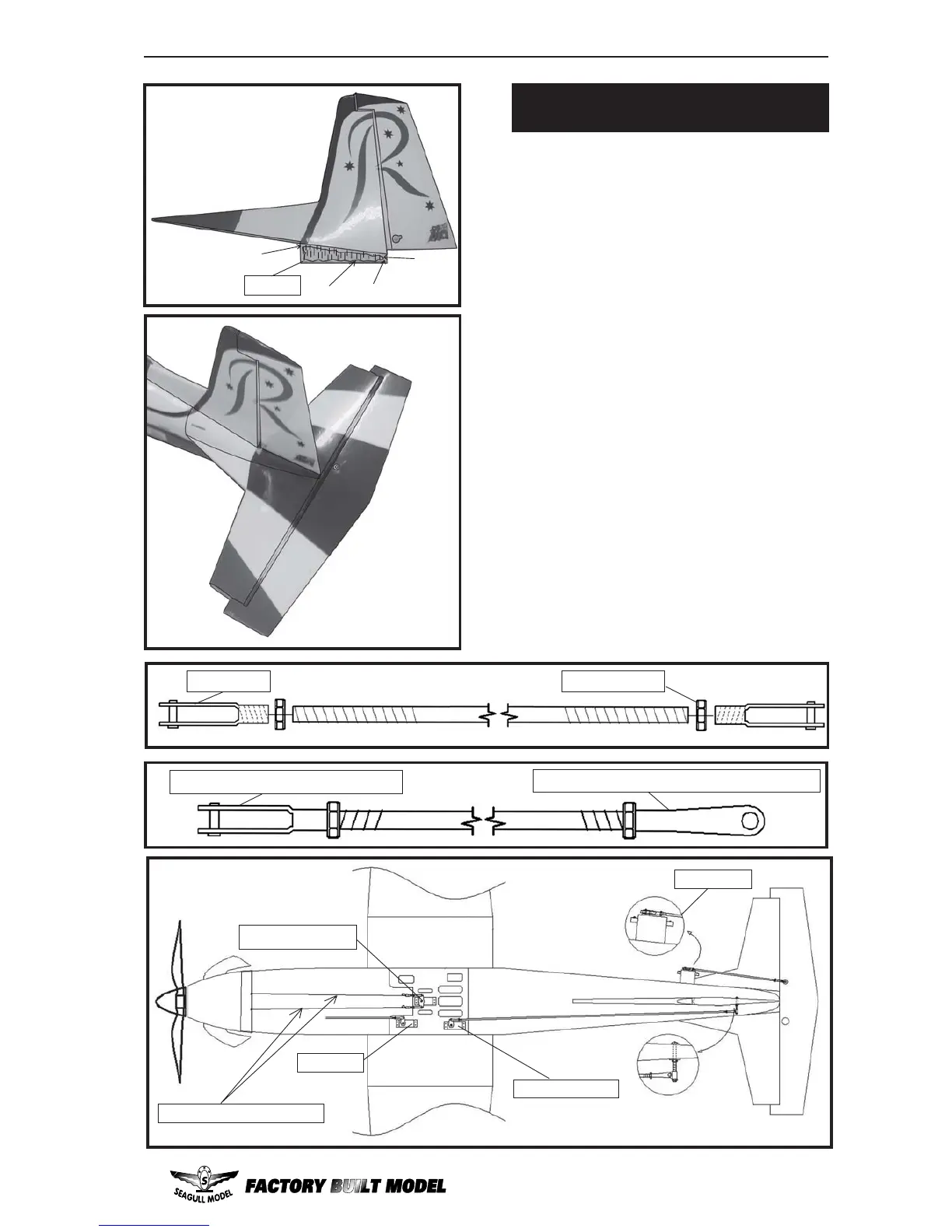

 1) Elevator and rudder pushrods assembly
follow pictures below.
M2 Lock nut.
Attach to elevator - rudder control horn.
ELEVATOR - RUDDER PUSHROD HORN
INSTALLATION.
 2) Install servos arm to servos. Notice the
position of the servo arms on the servos. See
picture below.
Rudder sevor.
Elevator .
Epoxy.
Cable pull pul system.
